| Cataiog No. | Suitable Conductor | Main dimensions(mm) | Weight(KG) | ||

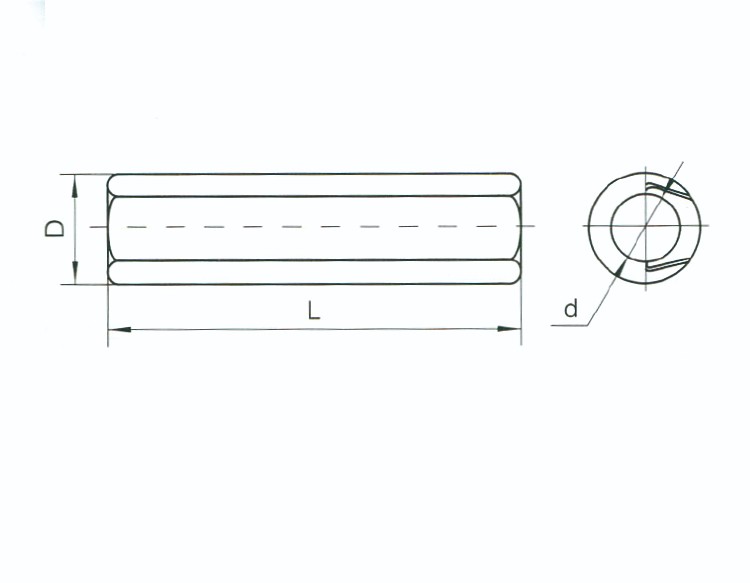

| D | d | L | |||
| JX-70/10 | LGJ-70/10 | 22 | 6.25 | 150 | 0.11 |
| JX-70/40 | LGJ-70/40 | 24 | 8.1 | 150 | 0.1 |
| JX-95 | LGJ-95/15/20 | 24 | 7.25 | 170 | 0.14 |
| JX-95/55 | LGJ-95/55 | 32 | 9 | 170 | 0.26 |
| JX-120 | LGJ-120/7/20 | 30 | 8.25 | 170 | 0.23 |
| JX-150 | LGJ-150/20/25 | 30 | 9 | 170 | 0.21 |
| JX-150/35 | LGJ-150/35 | 32 | 9.5 | 170 | 0.24 |
| JX-185/10 | LGJ-185/10 | 32 | 10 | 170 | 0.23 |
| JX-185 | LGJ-185/25/45 | 32 | 10.5 | 170 | 0.22 |
| JX-210 | LGJ-210/25/35 | 34 | 11 | 220 | 0.32 |
| JX-240 | LGJ-240/30/40 210/50 | 36 | 11.5 | 220 | 0.36 |
| JX-240/55 | LGJ-240/55 | 36 | 12 | 220 | 0.34 |
| JX-300/15 | LGJ-300/15 | 40 | 12.5 | 270 | 0.56 |
| JX-300/15 | LGJ-300/20/25/40/50 | 40 | 13 | 270 | 0.53 |
| JX-300/70 | LGJ-300/70 | 42 | 13.5 | 270 | 0.6 |
| JX-400 | LGJ-400/20/25/35/50 | 45 | 14.5 | 320 | 0.81 |
| JX-400/65 | LGJ-400/65 | 48 | 15 | 320 | 0.96 |
| JX-400/95 | LGJ-400/95 | 48 | 15.5 | 320 | 0.92 |
| JX-500 | LGJ-500/35/45/65 | 52 | 16 | 320 | 1.15 |
| JX-560/40 | LGJ-560/40 | 60 | 17 | 340 | 1.77 |
| JX-630 | LGJ-630/45/55/80 | 60 | 18 | 370 | 1.81 |
| JX-800/55 | LGJ-800/55 | 65 | 20 | 370 | 2.06 |
| JX-800 | LGJ-800/70/100 | 65 | 20.5 | 370 | 2.01 |
| JX-25G | GJ-25 | 14 | 7.2 | 100 | 0.09 |
| JX-35G | GJ-35 | 16 | 8.4 | 120 | 0.12 |
| JX-50G | GJ-50 | 18 | 9.6 | 120 | 0.15 |
| JX-55G | GJ-55 | 20 | 10.3 | 120 | 0.23 |
| JX-70G | GJ-70 | 22 | 11.6 | 140 | 0.26 |
| JX-80G | GJ-800 | 24 | 12 | 140 | 0.38 |
| JX-100G | GJ-100 | 26 | 14 | 160 | 0.48 |
| JX-120G | GJ-120 | 28 | 15 | 170 | 0.59 |
| JX-150G | GJ-150 | 32 | 16.5 | 200 | 0.93 |

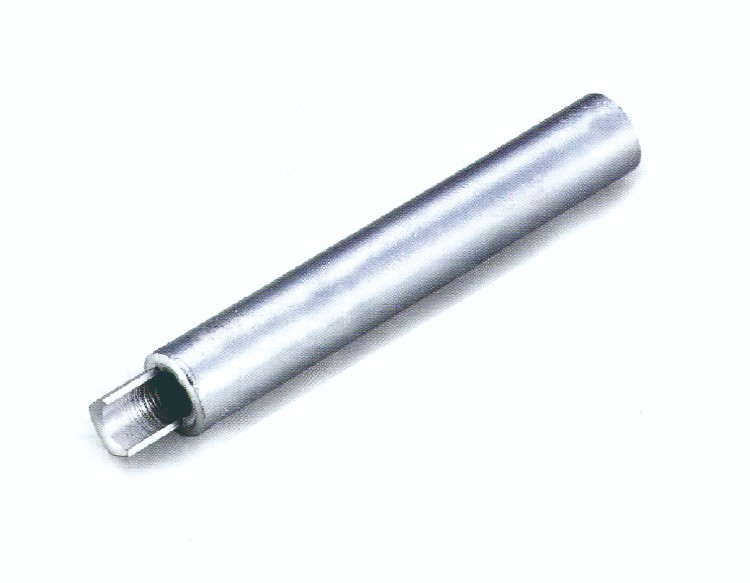

Here are some key features and details about these splicing sleeves:
1.Material: They are typically made of a high conductivity/high strength aluminum alloy outer tube and corrosion-resistant high strength galvanized steel hardware.
2.Design: These splicing sleeves often have a two-piece design, consisting of a steel inner sleeve and an aluminum outer sleeve. This design is intended to provide full tension on the ACSR conductor.
3.Installation: All splices are marked with wire size, installation die codes, and compression locations, providing easy identification for easy installation.
4.Performance: They are designed to develop 95% or more of the conductor’s rated strength.
5.Standards: These splicing sleeves meet or exceed ANSI C119.4 specifications.
