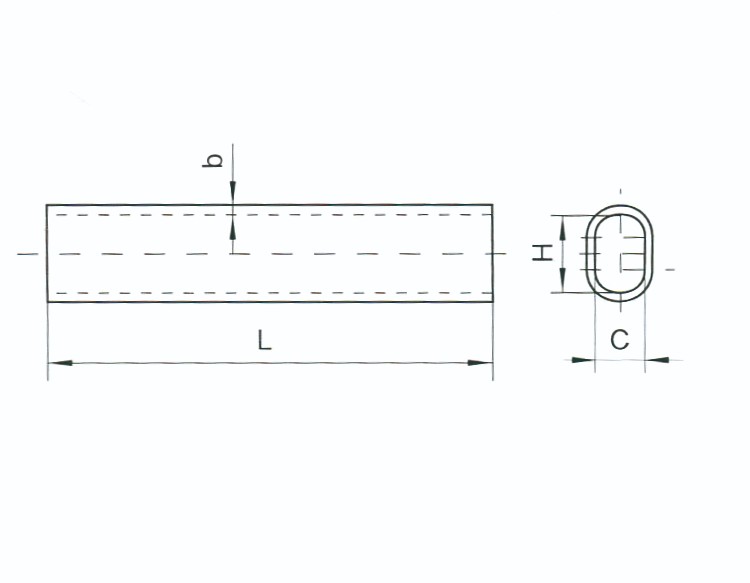

| Cataiog No. | Suitable Conductor | Main dimensions(mm) | Grip Strength(KN) | Weight(KG) | |||
| b | C | H | L | ||||
| JT-16L | LJ-16 | 1.7 | 12 | 6 | 110 | 2.7 | 0.02 |
| JT-25L | LJ-25 | 1.7 | 14.4 | 7.2 | 120 | 4.1 | 0.03 |
| JT-35L | LJ-35 | 1.7 | 1.7 | 8.5 | 140 | 5.5 | 0.04 |
| JT-50L | LJ-50 | 1.7 | 20 | 10 | 190 | 7.5 | 0.05 |
| JT-70L | LJ-70 | 1.7 | 23.7 | 11.7 | 210 | 10 | 0.07 |
| JT-95 | LJ-95 | 1.7 | 26.8 | 13.4 | 280 | 14 | 0.1 |
| JT-120L | LJ-120 | 2 | 30 | 15 | 300 | 18 | 0.15 |
| JT-150L | LJ-150 | 2 | 34 | 17 | 320 | 22 | 0.16 |
| JT-185L | LJ-185 | 2 | 38 | 19 | 340 | 27 | 0.2 |
| JT-240L | LJ-240 | 3.6 | 42 | 21.5 | 380 | 34.5 | 0.28 |

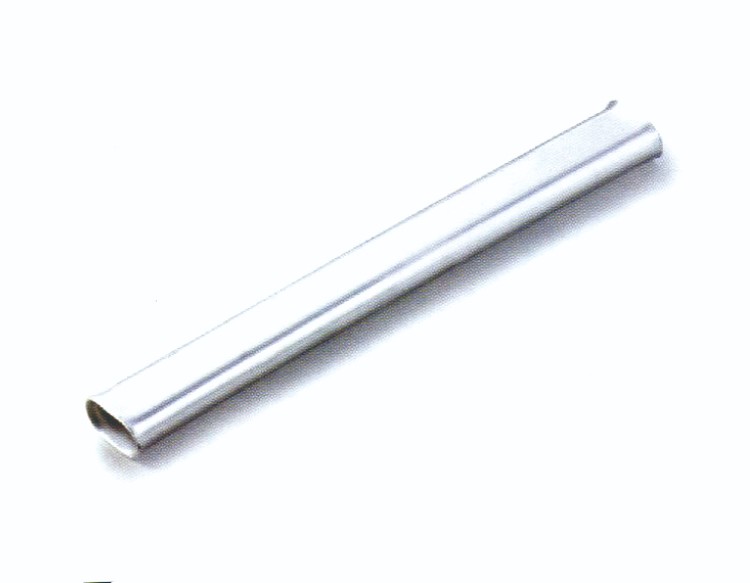

Here are some details about the JT Splicing Sleeve suitable for ACSR conductors:
1.Description: The JT Splicing Sleeve is suitable for linking and repairing aerial insulation conductors in aerial electric power lines.
2.Material: The outer sleeve is made of aluminum, while the inner sleeve is hot-dip galvanized steel.
