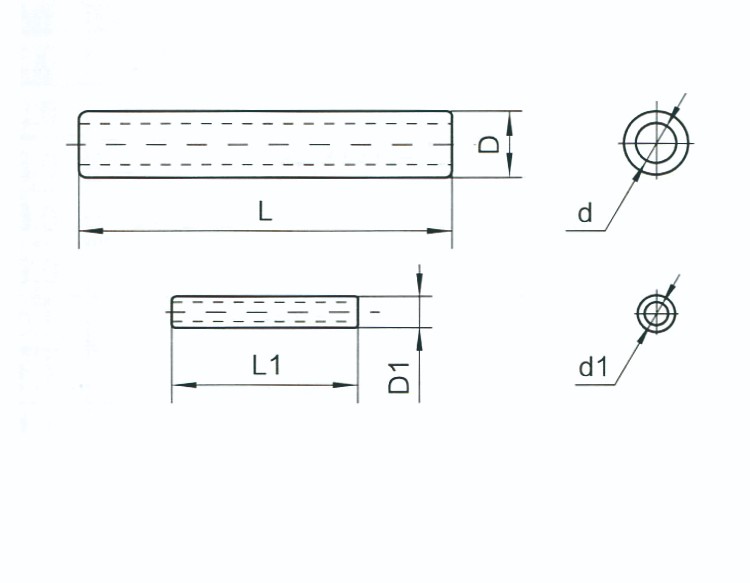

| Cataiog No. | Suitable Conductor | Main dimensions(mm) | Grip Strength (KN) | Weight(KG) | |||||
| D | d | L1 | D1 | d1 | |||||
| JYB-70/40 | LGJ-70/40 | 410 | 32 | 22 | 240 | 20 | 8.8 | 55.4 | 0.8 |
| JYB-95/55 | LGJ-95/55 | 430 | 38 | 25 | 150 | 24 | 19 | 74.2 | 0.92 |
| JYB-120/70 | LGJ-120/70 | 340 | 36 | 25.5 | 160 | 25 | 19 | 93.5 | 0.92 |
| JYB-150/25 | LGJ-150/25 | 320 | 30 | 18 | 85 | 26 | 12 | 51.4 | 0.35 |
| JYB-185/25 | LGJ-185/25 | 330 | 32 | 20.4 | 90 | 17.2 | 11.2 | 56.5 | 0.86 |
| JYB-185/30 | LGJ-185/30 | 350 | 32 | 20 | 100 | 17.5 | 13.5 | 61.1 | 0.8 |
| JYB-240/30 | LGJ-240/30 | 430 | 36 | 23.3 | 130 | 21.2 | 13.2 | 71.9 | 0.95 |
| JYB-240/40 | LGJ-240/40 | 450 | 36 | 23.5 | 130 | 21.3 | 13.3 | 79.2 | 0.97 |
| JYB-240/55 | LGJ-240/55 | 530 | 38 | 24 | 160 | 22 | 16.5 | 97 | 1.08 |
| JYB-300/20 | LGJ-300/20 | 420 | 40 | 25 | 100 | 14 | 9.8 | 71.9 | 107 |
| JYB-300/25 | LGJ-300/25 | 430 | 36 | 25.5 | 110 | 23.4 | 18.5 | 79.3 | 1.1 |
| JYB-300/40 | LGJ-300/40 | 430 | 40 | 25.5 | 110 | 22 | 17 | 87.6 | 1 |
| JYB-300/50 | LGJ-300/50 | 450 | 40 | 26 | 120 | 22 | 17 | 98.3 | 1.01 |
| JYB-300/70 | LGJ-300/70 | 510 | 42 | 27 | 150 | 24 | 19 | 121.6 | 1.35 |
| JYB-400/35 | LGJ-400/35 | 530 | 45 | 28.5 | 150 | 26 | 15 | 98.7 | 1.74 |
| JYB-400/50 | LGJ-400/50 | 510 | 45 | 29.5 | 130 | 24 | 17 | 117.3 | 1.8 |
| JYB-400/65 | LGJ-400/65 | 520 | 48 | 29.5 | 140 | 26 | 21 | 128.5 | 1.9 |
| JYB-400/95 | LGJ-400/95 | 550 | 48 | 31 | 170 | 28 | 22 | 162.8 | 2.1 |
| JYB-500/65 | LGJ-500/65 | 560 | 52 | 32.5 | 140 | 24 | 19 | 146.3 | 2.21 |

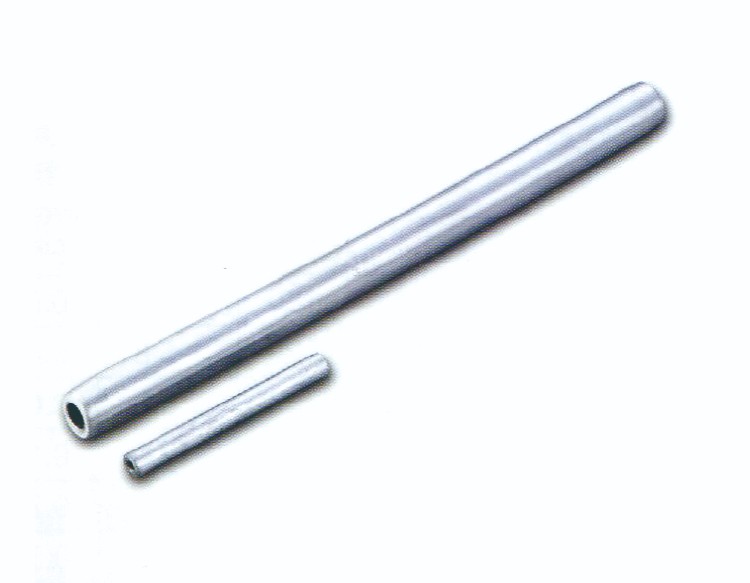

1.Description: The JYB Splicing Sleeve is suitable for linking and repairing aerial insulation conductors in aerial electric power lines.
2.Material: The outer sleeve is made of aluminum, while the inner sleeve is hot-dip galvanized steel.
