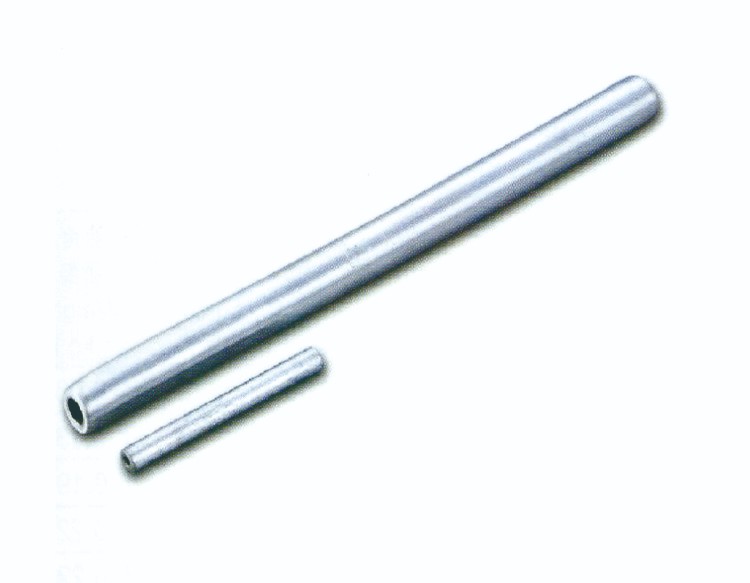

Splicing Sleeves (For ACSR Conductor-Hydraulic) Supply

Cataiog No.	Suitable Conductor	Main dimensions(mm)						Grip Strength (kN)	Weight(KG)

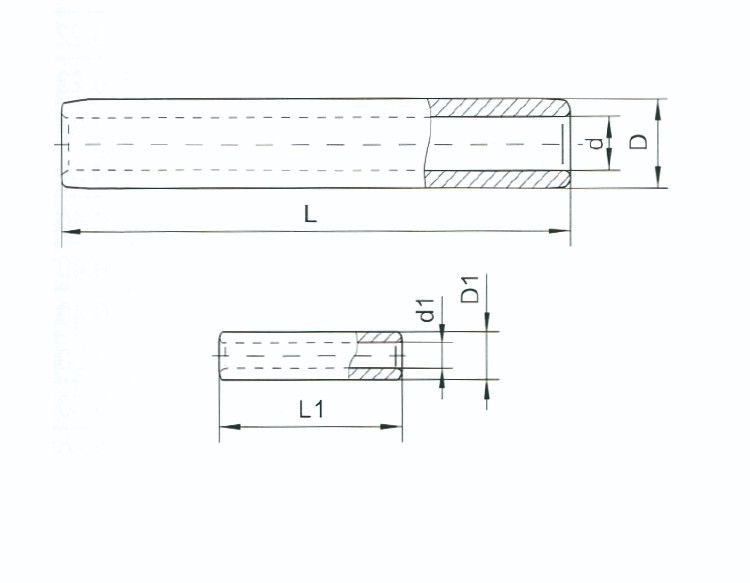

Cataiog No.	Suitable Conductor	L	D	d	L1	D1	d1	Grip Strength (kN)	Weight(KG)
JYD-50/8	LGJ-50/8	280	30	18	80	14	7	16.1	0.43
JYD-50/30	LGJ-50/30	300	34	22	100	20	11.6	40.5	0.64
JYD-70/10	LGJ-70/10	300	30	18	80	16	8.3	22.3	0.48
JYD-70/40	LGJ-70/40	330	34	22	110	20	13.6	55.4	0.67
JYD-95/15	LGJ-95/15	320	32	21	80	18	8.4	33.3	0.58
JYD-95/20	LGJ-95/20	340	32	21	80	18	9.3	35.4	0.58
JYD-95/55	LGJ-95/55	420	36	24	120	22	16	74.2	0.89
JYD-120/7	LGJ-120/7	320	30	16	80	14	6.5	26.2
JYD-120/20	LGJ-120/20	380	30	17	80	16	9.3	39	0.57
JYD-120/25	LGJ-120/25	380	30	17	100	16	10.5	45.5	0.58
JYD-120/70	LGJ-120/70	450	40	26	130	24	18	93.5	1.19
JYD-150/8	LGJ-150/8	360	30	17.5	80	14	7	31.3
JYD-150/20	LGJ-150/20	400	30	18	80	16	9.3	44.3	0.5
JYD-150/25	LGJ-150/25	400	30	19	90	18	10.5	51.4	0.5
JYD-150/35	LGJ-150/35	440	30	19	120	18	12.5	61.8	0.6
JYD-185/10	LGJ-185/10	380	32	19.5	80	16	7.8	38.9
JYD-185/25	LGJ-185/25	410	32	20.5	90	18	10.5	56.5	0.6
JYD-185/30	LGJ-185/30	420	32	20.5	100	18	11.6	61.1	0.64
JYD-185/45	LGJ-185/45	480	32	21	120	20	14	76.2	0.77
JYD-210/10	LGJ-210/10	400	34	20.5	80	16	8.3	42.9
JYD-210/25	LGJ-210/25	420	34	21.5	90	20	11.2	62.7
JYD-210/35	LGJ-210/35	450	34	22	100	20	12.5	70.6
JYD-210/50	LGJ-210/50	480	34	23.5	120	22	15	86.3
JYD-240/30	LGJ-240/30	450	36	23	100	20	12	71.9	0.9
JYD-240/40	LGJ-240/40	470	36	23	100	20	13.3	79.2	0.9
JYD-240/55	LGJ-240/55	490	36	24	120	22	16	97	0.9
JYD-300/15	LGJ-300/15	440	40	24.5	70	18	8.4	64.7
JYD-300/20	LGJ-300/20	450	40	25	80	18	9.8	71.9	1.05
JYD-300/25	LGJ-300/25	480	40	25.5	90	20	11.2	79.3	1.12
JYD-300/40	LGJ-300/40	490	40	25.5	100	20	13.33	87.6	1.15
JYD-300/50	LGJ-300/50	510	40	26	120	22	15	98.3	1.21
JYD-300/70	LGJ-300/70	560	42	27	130	24	18	121.6
JYD-400/20	LGJ-400/20	510	45	28.5	80	18	9.8	84.4	1.43
JYD-400/25	LGJ-400/25	520	45	28.5	90	20	11.2	91.2	1.48
JYD-400/35	LGJ-40/35	540	45	28.5	100	22	12.5	98.7	1.6
JYD-400/50	LGJ-400/50	570	45	29.5	120	24	15.4	117.3	1.64
JYD-400/65	LGJ-400/65	580	48	29.5	130	26	17.2	128.5
JYD-500/35	LGJ-500/35	580	52	31.5	100	22	12.5	113.6
JYD-500/45	LGJ-500/45	610	52	31.5	110	24	14	121.7
JYD-500/65	LGJ-500/65	640	52	32.5	130	26	17.2	146.3	2.61
JYD-630/45	LGJ-630/45	650	60	35.5	110	24	14	141.3
JYD-630/55	LGJ-630/55	680	60	36	120	26	16	156.2	3.59
JYD-800/55	LGJ-800/55	730	65	40	120	26	16	182
JYD-800/70	LGJ-800/70	760	65	40.5	130	26	18	196.7

1.Description: The JYD Splicing Sleeve is suitable for linking and repairing aerial insulation conductors in aerial electric power lines.

2.Material: The outer sleeve is made of aluminum, while the inner sleeve is hot-dip galvanized steel.
