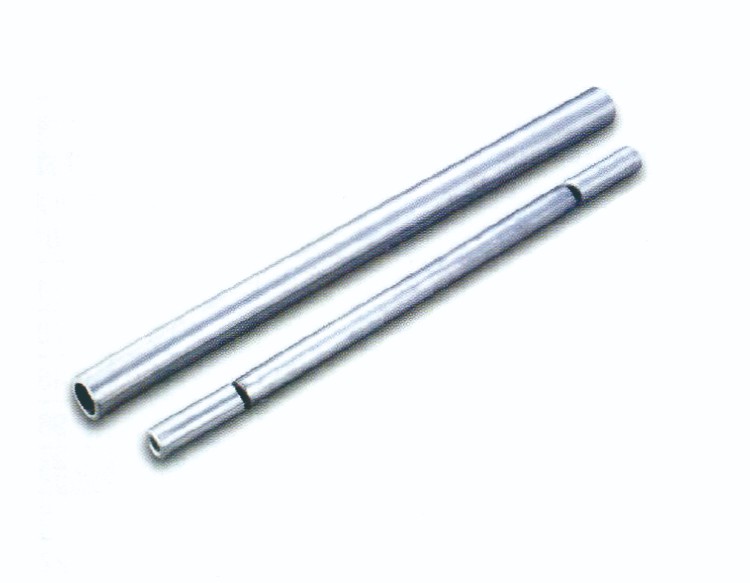

Splicing Sleeves (For AS Stranded Wire)

These sleeves play a crucial role in securing and joining aluminum and steel wires, especially in electrical applications.

Inquire Now Next Product

Product Details

Cataiog No.	Suitable Conductor	Main dimensions(mm)					Grip Strength (kN)	Weight(KG)

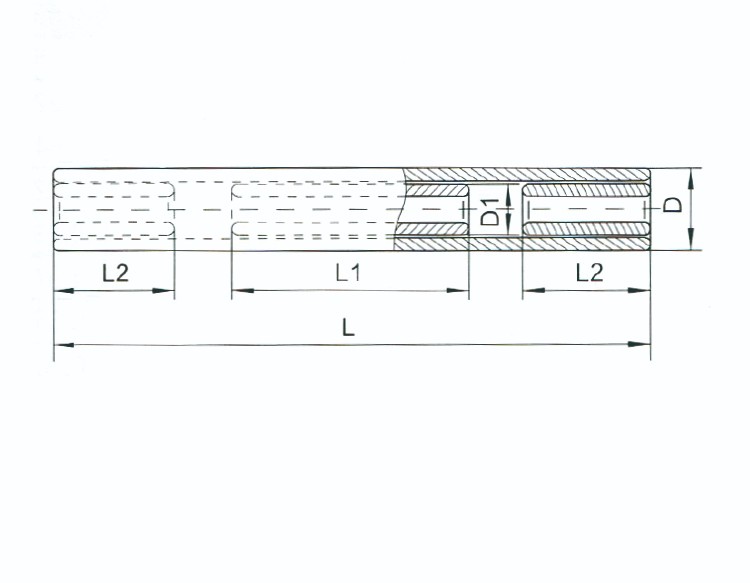

Cataiog No.	Suitable Conductor	L	D	L1	D1	L2	Grip Strength (kN)	Weight(KG)
JY-35BG	JLB20A-35	400	32	220	18	70	38	0.93
JY-50BG	JLB20A-50	420	32	240	18	70	57	0.93
JY-65BG	JLB20A-65	500	36	300	22	70	73
JY-70BG	JLB20A-70	500	36	300	22	70	78	1.44
JY-80BG	JLB20A-80	560	36	360	24	70	85	1.75
JY-95BG	JLB20A-95	600	40	380	26	80	96	2.3
JY-100BG.1	JLB20A-100	620	40	400	28	80	116	2.48
JY-100BG.2	JLB30-100	560	36	360	24	70	76	1.64
JY-120BG.1	JLB20A-120	620	42	400	30	80	129	2.81
JY-120BG.2	JLB30-120	600	40	380	26	80	92
JY-150BG.1	JLB20A-150	690	45	460	32	80	170	3.48
JY-150BG.2	JLB30-150	620	40	400	28	80	112	2.25
JY-185BG.1	JLB20A-185	770	48	500	34	100	199
JY-185BG.2	JLB30-185	620	42	400	30	80	138

Cataiog No.	Suitable Conductor	Main dimensions(mm)				Grip Strength (kN)	Weight(KG)
Cataiog No.	Suitable Conductor	L	D	L1	D1	Grip Strength (kN)	Weight(KG)
JY-80BG-20	JLB20A-80	320	36	550	24	85	2.2
JY-80BG-35	JLB35-80	320	36	530	24	55	1.6
JY-80BG-40	JLB40-80	300	36	500	24	46.2	1.4
JY-100BG-20	JLB20A-100	380	38	620	26	115.6	2.3
JY-100BG-35	JLB35-100	390	38	610	26	69.9	2.3
JY-100BG-40	JLB40-100	380	38	620	26	58.7	1.5
JY-120BG-20	JLB20A-120	400	42	680	30	138.9	3.1
JY-120BG-35	JLB35-120	400	36	640	24	83.9	2.6
JY-120BG-40	JLB40-120	380	36	630	24	71.5	2.2
JY-150BG-20	JLB20A-150	440	45	740	32	169.6	4.2
JY-150BG-35	JLB35-150	420	38	700	26	102.5	3.3
JY-150BG-40	JLB40-150	400	38	660	26	86.1	2.2

1.Material:

1)The inner sleeves are hot-dip galvanized steel.

2)The outer sleeve and lining sleeves are aluminum.

2.Applications:

1)Used for mechanical splicing and tensioning of steel wires in overhead power lines and distribution networks.
