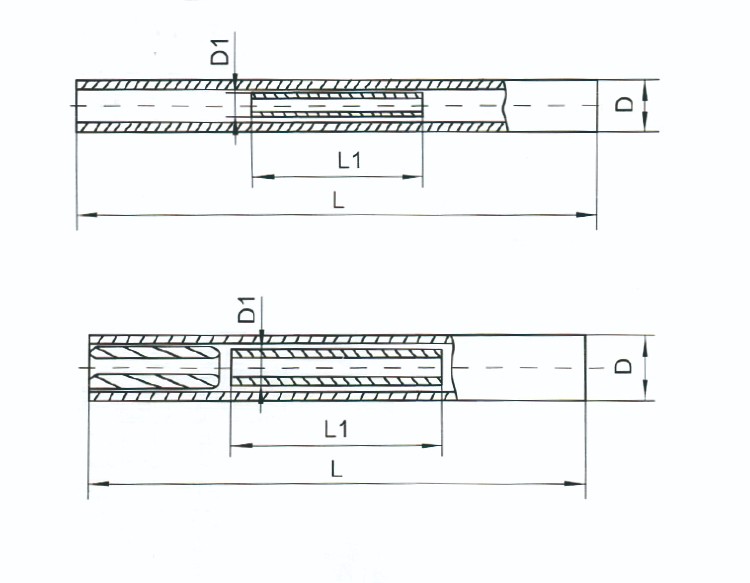

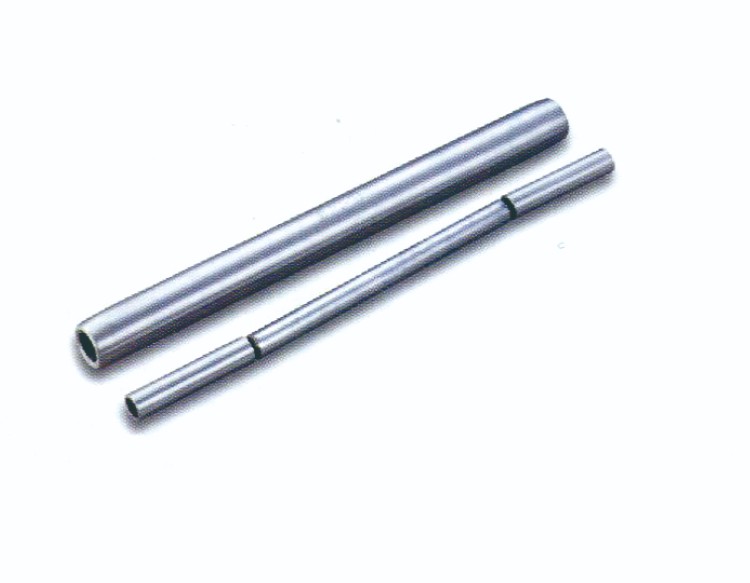

| Cataiog No. | Suitable Conductor | Fig No. | Main dimensions(mm) | Grip Strength (kN) | Weight(KG) | |||
| L | D | d | F | |||||
| JY-80/47BG | ACSR/AS-80/47 | 2 | 480 | 36 | 250 | 18 | 64.6 | 1.3 |
| JY-95/55BG | ACSR/AS-95/55 | 2 | 500 | 36 | 260 | 20 | 74 | 1.32 |
| JY-240/40BG | ACSR/AS-240/40 | 1 | 500 | 38 | 110 | 22 | 81.6 | 1.18 |
| JYD-300/25BG | ACSR/AS-300/25 | 1 | 500 | 42 | 90 | 20 | 74.4 | 1.35 |
| JYD-300/40BG | ACSR/AS-300/40 | 1 | 530 | 42 | 110 | 22 | 90 | 1.42 |
| JYD-300/50BG | ACSR/AS-300/50 | 1 | 550 | 42 | 130 | 24 | 101 | 1.5 |
| JYD-400/35BG | ACSR/AS-400/35 | 1 | 560 | 48 | 100 | 22 | 99 | 2.03 |
| JYD-400/50BG | ACSR/AS-400/50 | 1 | 590 | 48 | 130 | 24 | 117 | 2.07 |
| Cataiog No. | Suitable Conductor | Fig No. | Main dimensions(mm) | Grip Strength (kN) | Weight(KG) | |||
| L | D | L1 | D1 | |||||
| JY-95/20 | JL/G1A-95/20 | 1 | 380 | 26 | 120 | 12 | 35.4 | 0.5 |
| JY-150/25 | JL/G1A-150/25 | 1 | 400 | 32 | 120 | 14 | 51 | 0.7 |
| JY-185/30 | JL/G1A-185/30 | 1 | 420 | 34 | 120 | 18 | 61.4 | 0.7 |
| JYD-240/30 | JL/G1A-240/30 | 1 | 460 | 36 | 100 | 20 | 71.5 | 0.9 |
| JYD-240/40 | JL/G1A-240/40 | 1 | 480 | 36 | 100 | 20 | 79.6 | 1 |
| JYD-300/25 | JL/G1A-300/25 | 1 | 480 | 40 | 90 | 20 | 79.6 | 1 |
| JYD-300/40 | JL/G1A-300/40 | 1 | 490 | 40 | 100 | 20 | 87.7 | 1.3 |
| JYD-400/35 | JL/G1A-400/35 | 1 | 540 | 45 | 100 | 22 | 98.5 | 1.8 |
| JYD-400/50 | JL/G1A-400/50 | 1 | 570 | 45 | 120 | 24 | 116.9 | 2.1 |
| JYD-500/45 | JL/G1A-500/45 | 1 | 610 | 52 | 110 | 24 | 121 | 2.9 |
| JYD-630/45 | JL/G1A-630/45 | 1 | 680 | 60 | 110 | 24 | 154.1 | 4.3 |
| JYD-630/55 | JL/G1A-630/55 | 1 | 690 | 60 | 120 | 26 | 156.1 | 4.7 |
Here are some details about various splicing sleeves suitable for ACSR-AS conductors:
1.Standard Compression Repair Sleeve for ACSR Conductors:
1)Description: The 5200 Series Repair Sleeve is specifically designed for ACSR conductors.
2)Features:
(1)Incorporates an improved design of interlocking extrusions, providing a permanent grip on the conductor when compressed.
(2)Restores 95% of the rated strength of the conductor, even with up to one-third of the aluminum strands damaged.
(3)ANSI C119.4 Class A qualified.
(4)Permanent markings for ease of installation and identification.
3)Applications: Compression repair sleeve for ACSR conductors.
