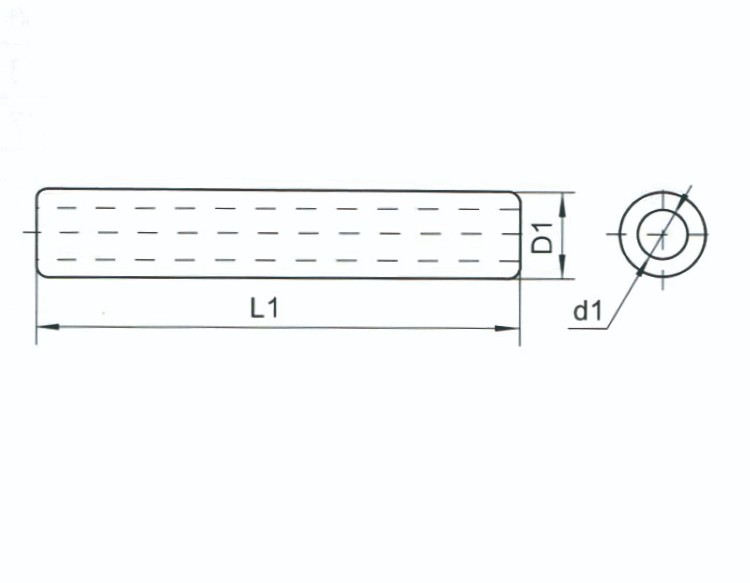

| Cataiog No. | Suitable Steel wire | Main dimensions(mm) | Grip Strength (kN) | Weight(KG) | ||
| L1 | D1 | d1 | ||||
| JY-25G | GJ-25 | 190 | 14 | 7.2 | 33 | 0.17 |
| JY-35G | GJ-35 | 220 | 16 | 8.4 | 45 | 0.3 |
| JY-50G | GJ-50 | 240 | 18 | 9.6 | 60 | 0.4 |
| JY-55G | GJ-55 | 240 | 22 | 10.3 | 65 | 0.56 |
| JY-70G | GJ-70 | 290 | 22 | 11.7 | 88 | 0.65 |
| JY-80G | GJ-80 | 300 | 24 | 12 | 100 | 0.8 |
| JY-100G | GJ-100 | 340 | 65 | 45 | 117 | 3.9 |
| JBD-35G | GJ-35 | 110 | 22 | 16 | 45 | 0.15 |
| JBD-50G | GJ-50 | 130 | 25 | 17 | 60 | 1.27 |
| JBD-55G | GJ-55 | 130 | 26 | 18 | 70 | 0.28 |
| JBD-70G | GJ-70 | 150 | 28 | 20 | 88 | 0.35 |
| JBD-100G | GJ-100 | 170 | 32 | 23 | 123 | 0.52 |

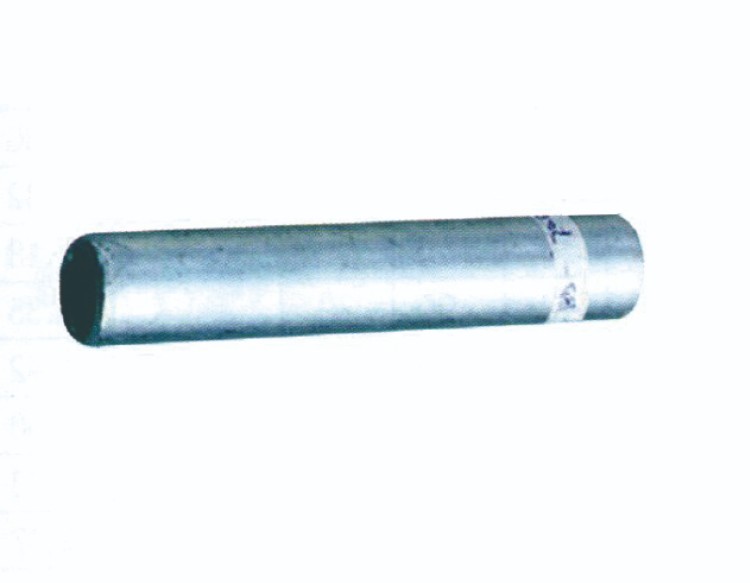

1.JY-G Splicing Sleeves for Steel Wire:
1)Suitable for various steel wire dimensions.
2)Made of hot-dip galvanized steel.
3)Available in different sizes with varying slip strength.
4)Used for mechanical splicing and tensioning of steel wires.
2.JBD-G Splicing Sleeves for Steel Wire:
1)Suitable for various steel wire dimensions.
2)Made of hot-dip galvanized steel.
3)Available in different sizes with varying slip strength.
4)Ideal for applications where explosive overlap joints are preferred.
