Application
DC Cable PV1-F acc. to EN 50618, are intended for use in Photovoltaic Power Supply Systems at nominal voltage rate up to 1,5/1,5kV DC.They are suitable for applications indoor and/or outdoor, in industrial and agriculture fields, in/at equipment with protective insulation (Protecting Class II), in explosion hazard areas.They may be installed fixed, freely suspended or free movable, in cable trays,conduits, on and in walls.DC Cable PV1-F are suitable for direct burial where the corresponding guidelines for direct burial shall be considered.
Cable Construction
Conductor: Electrolytic tinned copper, finely stranded class 5 in accordance with IEC 60228
Insulation: Halogen-free cross-linked compound
Sheath: Halogen-free cross-linked, flame retardant compound

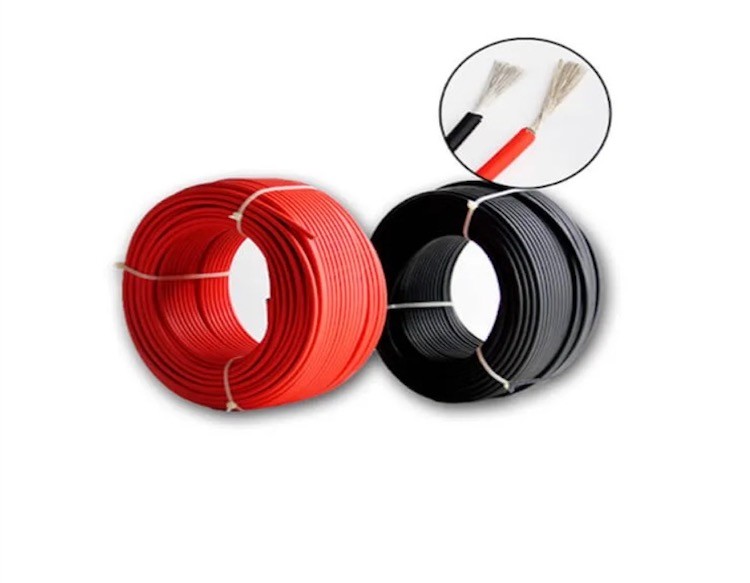

Insulation & Sheath Color: Red or Black
Dimension Characteristics
