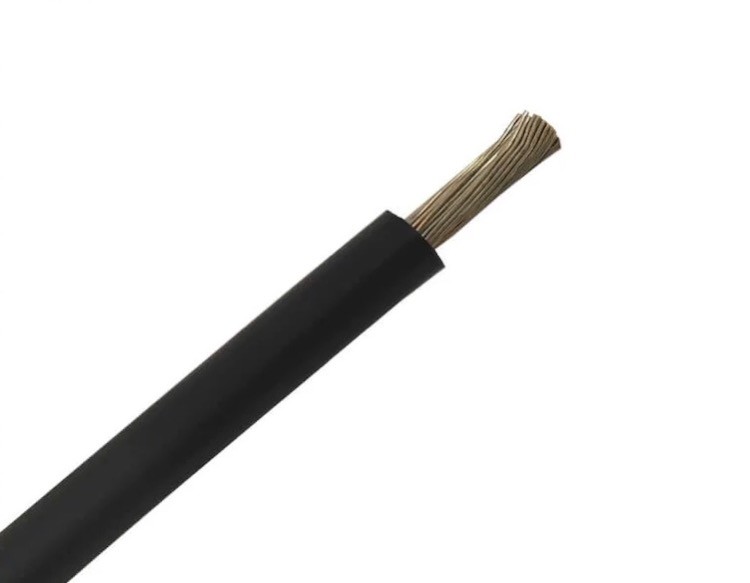

ODM. H1Z2Z2-K DC 1500V Photovoltaic PV Solar Cable TUV Certified

Application
DC Cable H1Z2Z2-K acc. to EN 50618, are intended for use in Photovoltaic Power Supply Systems at nominal voltage rate up to 1,5/1,5kV DC.They are suitable for applications indoor and/or outdoor, in industrial and agriculture fields, in/at equipment with protective insulation (Protecting Class II), in explosion hazard areas.They may be installed fixed, freely suspended or free movable, in cable trays,conduits, on and in walls.DC Cable H1Z2Z2-K are suitable for direct burial where the corresponding guidelines for direct burial shall be considered.

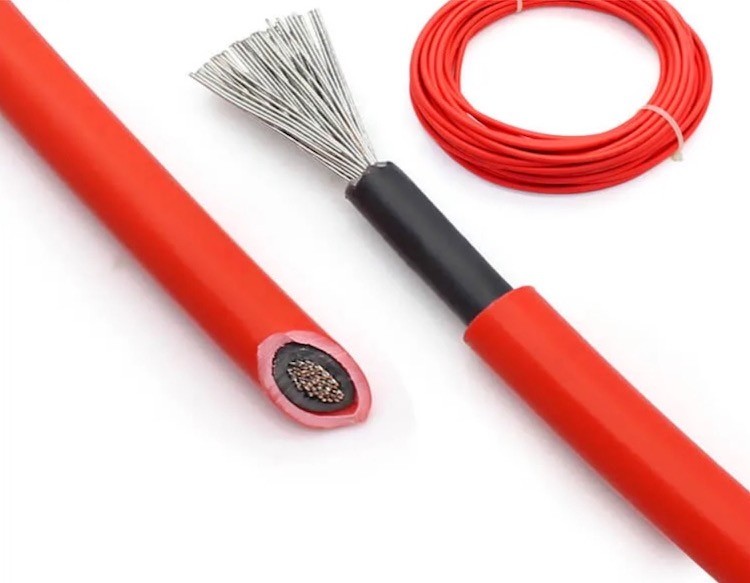

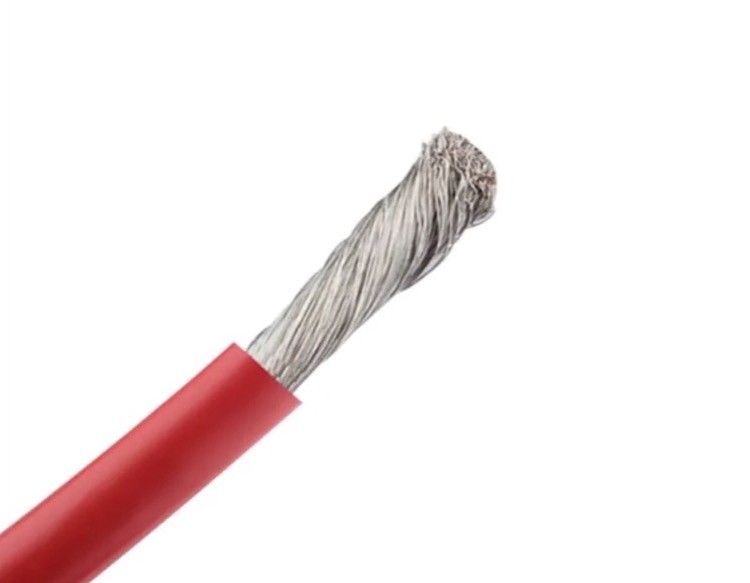

Cable Construction
Conductor: Electrolytic tinned copper, finely stranded class 5 in accordance with IEC 60228
Insulation: Halogen-free cross-linked compound
Sheath: Halogen-free cross-linked, flame retardant compound
Insulation & Sheath Color: Red or Black

Dimension characteristics

No. of Cores×Nominal Cross Section	No. of Stranding	Nominal Conductor Diameter	Nominal Insulation Thickness	Nominal Sheath Thickness	Nominal Overall Diamater	Nominal Weight
No.×mm2	-	mm	mm	mm	mm	kg/km
1×1.5	30/0.25	1.58	0.7	0.8	5.4	40
1×2.5	50/0.25	2.04	0.7	0.8	5.9	50
1×4.0	56/0.30	2.59	0.7	0.8	6.6	70
1×6.0	84/0.30	3.17	0.7	0.8	7.4	80
1×10	78/0.40	4.07	0.7	0.8	8.8	130
1×16	128/0.40	5.22	0.7	0.9	10.1	200
1×25	199/0.40	6.51	0.9	1	12.5	290
1×35	279/0.40	7.71	0.9	1.1	14	400
1×50	396/0.40	9	1	1.2	16.3	550
1×70	360/0.50	10.8	1.1	1.2	18.7	750
1×95	475/0.50	12.6	1.1	1.3	20.8	970
1×120	608/0.50	14.2	1.2	1.3	22.8	1220
1×150	756/0.50	15.8	1.4	1.4	25.5	1510
1×185	925/0.50	17.4	1.6	1.6	28.5	1850
1×240	1221/0.50	20.4	1.7	1.7	32.1	2400
