Application
Power and control cable for fixed installation. Can be used indoors, outdoors, underground, in concrete and in water.
Applicable Standard
IEC 60228
IEC 60502-1
Characteristics
Voltage Rating Uo/U : 0.6/1 kV
Temperature Rating: Fixed: -15°C to + 70°C Flexed: -15°C to + 50°C
Minimum Bending Radius: Fixed: 12 x Overall Diameter (O.D.)

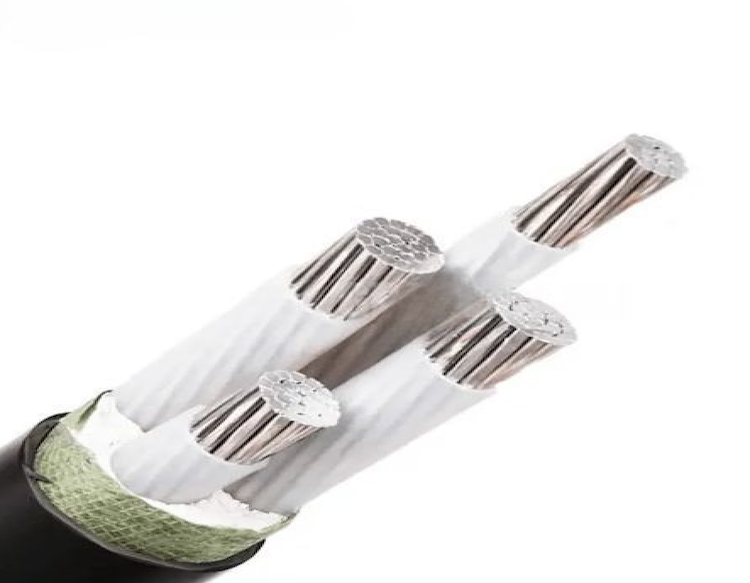

Cable Construction
Conductor
RE: Class 1 solid Aluminum conductor
RM: Class 2 stranded Aluminum conductor
Insulation
XLPE（ Cross-linked Polyethylene）
Filler
PP Rope
Sheath
PVC (Polyvinyl Chloride)
Dimension Characteristics
| Section | Insulation Thickness | Sheath Thickness | Overall Diameter | Cable Weight | DC. Electrical Resistance at 20°C |
| No.xmm2 | mm | mm | mm | Cu | Al | Cu | Al |
| kg/km | Ω/km |
| 4x0.5 | 0.8 | 1.8 | 10.6 | 123 | - | 36.0 | - |
| 4x0.75 | 0.8 | 1.8 | 11.1 | 140 | - | 24.9 | - |
| 4x1.5 | 0.8 | 1.8 | 12.1 | 185 | 147 | 12.1 | 18.1 |
| 4x2.5 | 0.8 | 1.8 | 13.0 | 236 | 174 | 7.41 | 12.1 |
| 4x4 | 1.0 | 1.8 | 15.2 | 338 | 238 | 4.61 | 7.41 |
| 4x6 | 1.0 | 1.8 | 16.4 | 435 | 283 | 3.08 | 4.61 |
| 4x10 | 1.0 | 1.8 | 19.6 | 645 | 392 | 1.83 | 3.08 |
| 4x16 | 1.0 | 1.8 | 22.0 | 909 | 507 | 1.15 | 1.91 |
| 4x25 | 1.2 | 1.8 | 26.1 | 1353 | 719 | 0.727 | 1.20 |
| 4x35 | 1.2 | 1.8 | 27.5 | 1720 | 854 | 0.524 | 0.868 |
| 4x50 | 1.4 | 1.9 | 27.7 | 2196 | 1023 | 0.387 | 0.641 |
| 4X70 | 1.4 | 2.1 | 31.8 | 3054 | 1357 | 0.268 | 0.443 |
| 4X95 | 1.6 | 2.2 | 41.2 | 4346 | 1989 | 0.193 | 0.320 |
| 4X120 | 1.6 | 2.4 | 45.2 | 5386 | 2412 | 0.153 | 0.253 |
| 4X150 | 1.8 | 2.5 | 50.0 | 6615 | 2946 | 0.124 | 0.206 |
| 4X185 | 2.0 | 2.7 | 55.2 | 8223 | 3632 | 0.0991 | 0.164 |
| 4X240 | 2.2 | 2.9 | 62.2 | 10686 | 4652 | 0.0754 | 0.125 |
| 4X300 | 2.4 | 3.1 | 68.9 | 13309 | 5739 | 0.0601 | 0.100 |
| 4x400 | 2.6 | 3.4 | 77.5 | 16916 | 7236 | 0.0470 | 0.0778 |
| 4x500 | 2.8 | 3.6 | 86.1 | 21477 | 9046 | 0.0366 | 0.0605
|
