Application
Power and control cable for fixed installation. Can be used indoors, outdoors, underground, in concrete and in water.
Applicable Standard
IEC 60228
IEC 60502-1
Characteristics
Voltage Rating Uo/U: 0.6/1 kV
Temperature Rating: Fixed: -15°C to + 70°C Flexed: -15°C to + 50°C
Minimum Bending Radius: Fixed: 12 x Overall Diameter (O.D.)

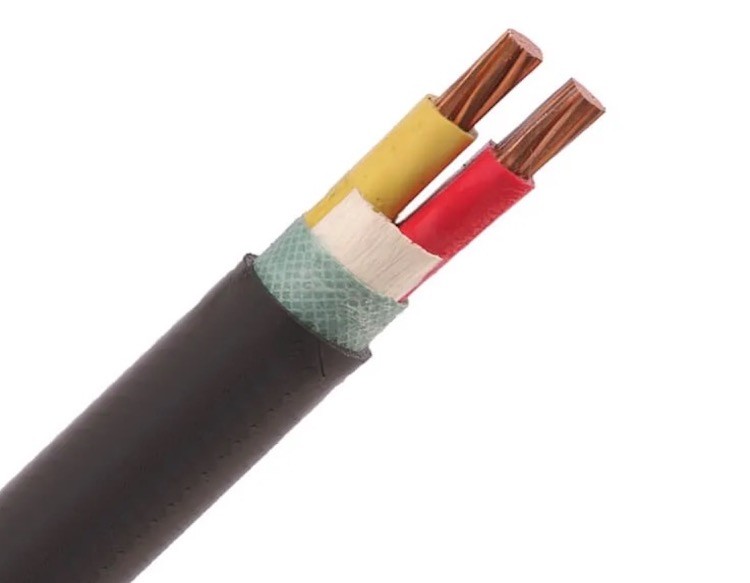

Cable Construction
Conductor
RE: Class 1 solid copper conductor
RM: Class 2 stranded copper conductor
Insulation
PVC (Polyvinyl Chloride)
Filler
PP Rope
Sheath
PVC (Polyvinyl Chloride)
Dimension Characteristics
| Section | Insulation Thickness | Sheath Thickness | Overall Diameter | Cable Weight | DC. Electrical Resistance at 20°C |
| No.xmm2 | mm | mm | mm | Cu | Al | Cu | Al |
| kg/km | Ω/km |
| 2x0.5 | 0.8 | 1.8 | 9.6 | 93 | - | 36.0 | - |
| 2x0.75 | 0.8 | 1.8 | 10.0 | 103 | - | 24.9 | - |
| 2x1.5 | 0.8 | 1.8 | 10.8 | 129 | 110 | 12.1 | 18.1 |
| 2x2.5 | 0.8 | 1.8 | 11.6 | 158 | 127 | 7.41 | 12.1 |
| 2x4 | 1.0 | 1.8 | 13.4 | 218 | 168 | 4.61 | 7.41 |
| 2x6 | 1.0 | 1.8 | 14.4 | 272 | 196 | 3.08 | 4.61 |
| 2x10 | 1.0 | 1.8 | 17.0 | 392 | 265 | 1.83 | 3.08 |
| 2x16 | 1.0 | 1.8 | 19.0 | 536 | 335 | 1.15 | 1.91 |
| 2x25 | 1.2 | 1.8 | 22.4 | 781 | 465 | 0.727 | 1.20 |
| 2x35 | 1.2 | 1.8 | 23.6 | 974 | 541 | 0.524 | 0.868 |
| 2x50 | 1.4 | 1.8 | 27.0 | 1286 | 700 | 0.387 | 0.641 |
| 2x70 | 1.4 | 1.9 | 30.2 | 1750 | 901 | 0.268 | 0.443 |
| 2x95 | 1.6 | 2.0 | 34.6 | 2371 | 1192 | 0.193 | 0.320 |
| 2x120 | 1.6 | 2.1 | 37.8 | 2917 | 1431 | 0.153 | 0.253 |
| 2x150 | 1.8 | 2.2 | 41.8 | 3579 | 1744 | 0.124 | 0.206 |
| 2x185 | 2.0 | 2.4 | 46.2 | 4445 | 2150 | 0.0991 | 0.164 |
| 2x240 | 2.2 | 2.6 | 52.0 | 5762 | 2745 | 0.0754 | 0.125 |
| 2x300 | 2.4 | 2.7 | 57.4 | 7142 | 3357 | 0.0601 | 0.100 |
| 2x400 | 2.6 | 3.0 | 64.6 | 9079 | 4239 | 0.0470 | 0.0778 |
| 2x500 | 2.8 | 3.2 | 71.8 | 11503 | 5287 | 0.0366 | 0.0605
|
