Application
Power and control cable for fixed installation. Can be used indoors, outdoors, underground, in concrete and in water.
Applicable Standard
IEC 60228
IEC 60502-1
Characteristics
Voltage Rating Uo/U : 0.6/1 kV
Temperature Rating: Fixed: -15°C to + 70°C Flexed: -15°C to + 50°C
Minimum Bending Radius: Fixed: 12 x Overall Diameter (O.D.)

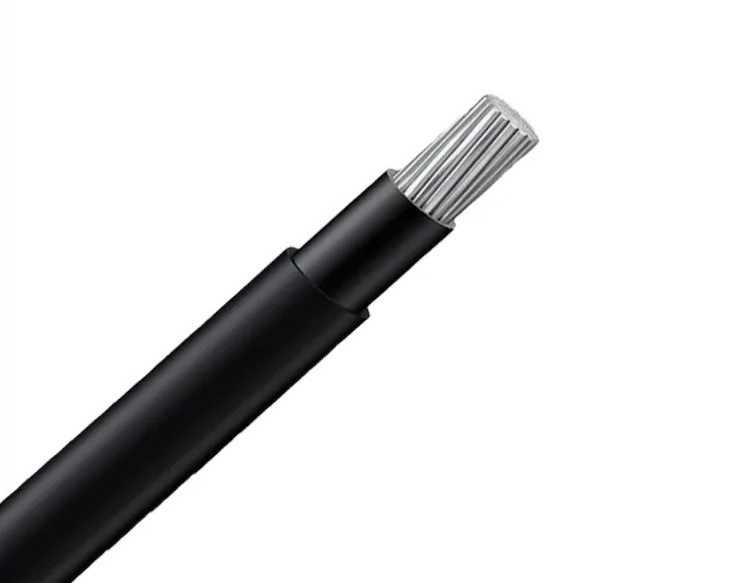

Cable Construction
Conductor
RE: Class 1 solid Aluminum conductor
RM: Class 2 stranded Aluminum conductor
Insulation
PVC (Polyvinyl Chloride)
Filler
PP Rope
Sheath
PVC (Polyvinyl Chloride)
Dimension Characteristics
| Section | Insulation Thickness | Sheath Thickness | Overall Diameter | Cable Weight | DC. Electrical Resistance at 20°C |
| No.xmm2 | mm | mm | mm | Cu | Al | Cu | Al |
| kg/km | Ω/km |
| 1x0.5 | 0.8 | 1.4 | 5.2 | 37 | - | 36.0 | - |
| 1x0.75 | 0.8 | 1.4 | 5.4 | 41 | - | 24.9 | - |
| 1x1.5 | 0.8 | 1.4 | 5.8 | 52 | 43 | 12.1 | 18.1 |
| 1x2.5 | 0.8 | 1.4 | 6.2 | 65 | 50 | 7.41 | 12.1 |
| 1x4 | 1.0 | 1.4 | 7.1 | 90 | 66 | 4.61 | 7.41 |
| 1x6 | 1.0 | 1.4 | 7.6 | 114 | 77 | 3.08 | 4.61 |
| 1x10 | 1.0 | 1.4 | 8.9 | 166 | 103 | 1.83 | 3.08 |
| 1x16 | 1.0 | 1.4 | 9.9 | 230 | 131 | 1.15 | 1.91 |
| 1x25 | 1.2 | 1.4 | 11.6 | 338 | 182 | 0.727 | 1.20 |
| 1x35 | 1.2 | 1.4 | 12.2 | 428 | 214 | 0.524 | 0.868 |
| 1x50 | 1.4 | 1.4 | 13.9 | 565 | 276 | 0.387 | 0.641 |
| 1x70 | 1.4 | 1.5 | 15.6 | 778 | 360 | 0.268 | 0.443 |
| 1x95 | 1.6 | 1.5 | 17.7 | 1050 | 470 | 0.193 | 0.320 |
| 1x120 | 1.6 | 1.6 | 19.4 | 1299 | 567 | 0.153 | 0.253 |
| 1x150 | 1.8 | 1.6 | 21.3 | 1587 | 683 | 0.124 | 0.206 |
| 1x185 | 2.0 | 1.6 | 23.5 | 1970 | 839 | 0.0991 | 0.164 |
| 1x240 | 2.2 | 1.7 | 26.4 | 2555 | 1069 | 0.0754 | 0.125 |
| 1x300 | 2.4 | 1.8 | 29.2 | 3178 | 1313 | 0.0601 | 0.100 |
| 1x400 | 2.6 | 1.9 | 32.7 | 4025 | 1641 | 0.0470 | 0.0778 |
| 1x500 | 2.8 | 2.0 | 36.3 | 5110 | 2048 | 0.0366 | 0.0605 |
| 1x630 | 2.8 | 2.1 | 40.0 | 6296 | 2537 | 0.0283 | 0.0469 |
| 1x800 | 2.8 | 2.2 | 44.2 | 8203 | 3133 | 0.0221 | 0.0367 |
