Description

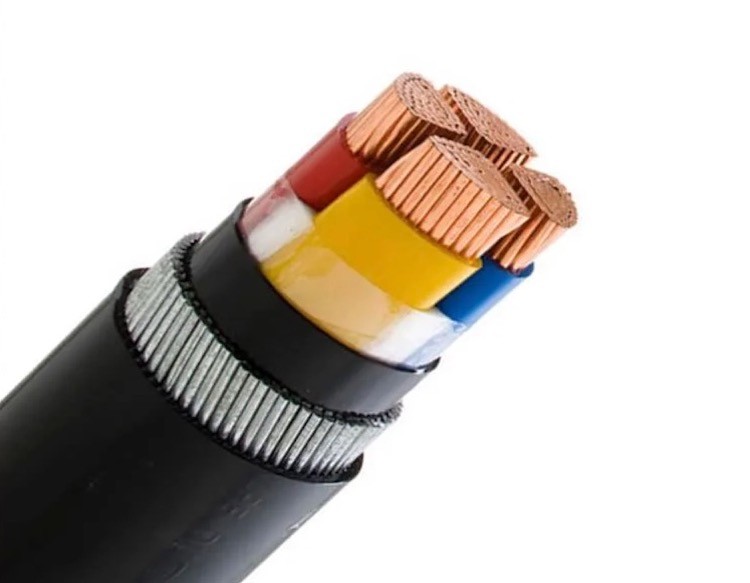

Electric cable with copper conductors, XLPE insulation, PVC bedding, galvanized steel wires armour (SWA) and PVC outer sheath
Application
Multi-core PVC cable with steel wire armour (SWA). Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.
Applicable Standard
BS 5467

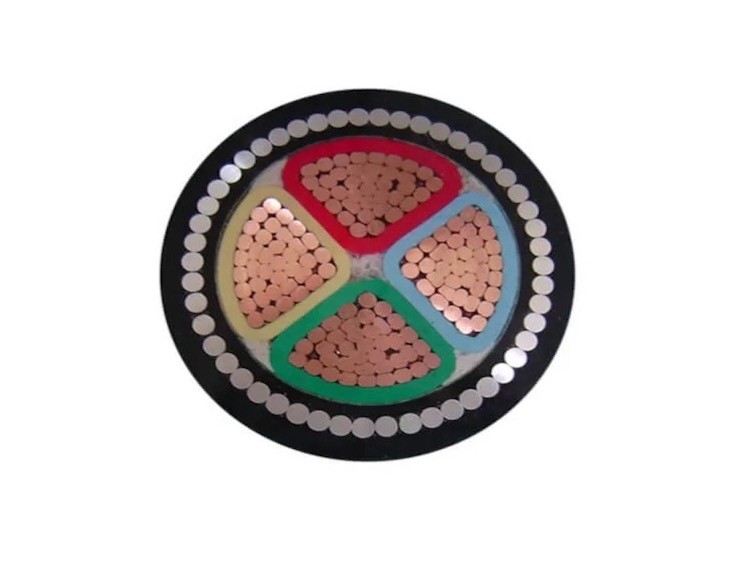

Cable Construction
Conductor Compact stranded copper conductor,
Insulation XLPE(cross-linked polyethylene) rated at 90 °C
Inner sheath PVC
Armored Galvanized Steel Wire.
Sheath PVC or FR-PVC
Dimension Characteristics
| Section | Insulation Thickness | Sheath Thickness | Overall Diameter | Cable Weight | DC. Electrical Resistance at 20°C |
| No.xmm2 | mm | mm | mm | Cu | Al | Cu | Al |
| kg/km | Ω/km |
| 2x4 | 0.7 | 1.8 | 16.8 | 447 | 397 | 4.61 | 7.41 |
| 2x6 | 0.7 | 1.8 | 17.8 | 520 | 444 | 3.08 | 4.61 |
| 2x10 | 0.7 | 1.8 | 21.3 | 835 | 708 | 1.83 | 3.08 |
| 2x16 | 0.7 | 1.8 | 23.3 | 1024 | 823 | 1.15 | 1.91 |
| 2x25 | 0.9 | 1.8 | 27.4 | 1512 | 1195 | 0.727 | 1.20 |
| 2x35 | 0.9 | 1.8 | 28.6 | 1740 | 1307 | 0.524 | 0.868 |
| 2x50 | 1.0 | 1.8 | 31.6 | 2136 | 1550 | 0.387 | 0.641 |
| 2x70 | 1.1 | 2.0 | 35.4 | 2735 | 1886 | 0.268 | 0.443 |
| 2x95 | 1.1 | 2.1 | 39.8 | 3697 | 2518 | 0.193 | 0.320 |
| 2x120 | 1.2 | 2.2 | 43.4 | 4396 | 2909 | 0.153 | 0.253 |
| 2x150 | 1.4 | 2.3 | 47.4 | 5208 | 3374 | 0.124 | 0.206 |
| 2x185 | 1.6 | 2.5 | 53.2 | 6747 | 4451 | 0.0991 | 0.164 |
| 2x240 | 1.7 | 2.7 | 58.6 | 8278 | 5261 | 0.0754 | 0.125 |
| 2x300 | 1.8 | 2.8 | 64.0 | 9912 | 6127 | 0.0601 | 0.100 |
| 2x400 | 2.0 | 3.1 | 71.2 | 12168 | 7328 | 0.0470 | 0.0778 |
| 2x500 | 2.2 | 3.3 | 80.1 | 15893 | 9678 | 0.0366 | 0.0605 |
| 3x4 | 0.7 | 1.8 | 17.4 | 505 | 430 | 4.61 | 7.41 |
| 3x6 | 0.7 | 1.8 | 18.5 | 598 | 485 | 3.08 | 4.61 |
| 3x10 | 0.7 | 1.8 | 22.2 | 966 | 776 | 1.83 | 3.08 |
| 3x16 | 0.7 | 1.8 | 24.3 | 1220 | 918 | 1.15 | 1.91 |
| 3x25 | 0.9 | 1.8 | 28.7 | 1803 | 1328 | 0.727 | 1.20 |
| 3x35 | 0.9 | 1.8 | 30.0 | 2133 | 1483 | 0.524 | 0.868 |
| 3x50 | 1.0 | 1.9 | 33.4 | 2658 | 1779 | 0.387 | 0.641 |
| 3x70 | 1.1 | 2.0 | 38.1 | 3716 | 2442 | 0.268 | 0.443 |
| 3x95 | 1.1 | 2.2 | 42.2 | 4692 | 2924 | 0.193 | 0.320 |
| 3x120 | 1.2 | 2.3 | 46.1 | 5649 | 3418 | 0.153 | 0.253 |
| 3x150 | 1.4 | 2.5 | 52.0 | 7239 | 4487 | 0.124 | 0.206 |
| 3x185 | 1.6 | 2.6 | 56.5 | 8634 | 5191 | 0.0991 | 0.164 |
| 3x240 | 1.7 | 2.8 | 62.7 | 10790 | 6265 | 0.0754 | 0.125 |
| 3x300 | 1.8 | 3.0 | 68.3 | 13016 | 7338 | 0.0601 | 0.100 |
| 3x400 | 2.0 | 3.2 | 75.8 | 16028 | 8768 | 0.0470 | 0.0778 |
| 3x500 | 2.2 | 3.5 | 85.4 | 20926 | 11603 | 0.0366 | 0.0605 |
| 4x4 | 0.7 | 1.8 | 18.4 | 580 | 480 | 4.61 | 7.41 |
| 4x6 | 0.7 | 1.8 | 20.5 | 839 | 688 | 3.08 | 4.61 |
| 4x10 | 0.7 | 1.8 | 23.6 | 1119 | 866 | 1.83 | 3.08 |
| 4x16 | 0.7 | 1.8 | 26.7 | 1599 | 1196 | 1.15 | 1.91 |
| 4x25 | 0.9 | 1.8 | 30.8 | 2151 | 1518 | 0.727 | 1.20 |
| 4x35 | 0.9 | 1.9 | 32.5 | 2584 | 1718 | 0.524 | 0.868 |
| 4x50 | 1.0 | 2.0 | 36.3 | 3254 | 2081 | 0.387 | 0.641 |
| 4x70 | 1.1 | 2.2 | 41.6 | 4558 | 2860 | 0.268 | 0.443 |
| 4x95 | 1.1 | 2.3 | 46.0 | 5827 | 3469 | 0.193 | 0.320 |
| 4x120 | 1.2 | 2.5 | 51.9 | 7540 | 4566 | 0.153 | 0.253 |
| 4x150 | 1.4 | 2.6 | 56.7 | 8993 | 5324 | 0.124 | 0.206 |
| 4x185 | 1.6 | 2.8 | 62.3 | 10871 | 6281 | 0.0991 | 0.164 |
| 4x240 | 1.7 | 3.0 | 68.8 | 13552 | 7519 | 0.0754 | 0.125 |
| 4x300 | 1.8 | 3.2 | 75.0 | 16379 | 8809 | 0.0601 | 0.100 |
| 4x400 | 2.0 | 3.5 | 85.3 | 21416 | 11736 | 0.0470 | 0.0778 |
| 4x500 | 2.2 | 3.8 | 94.1 | 26417 | 13986 | 0.0366 | 0.0605
|
