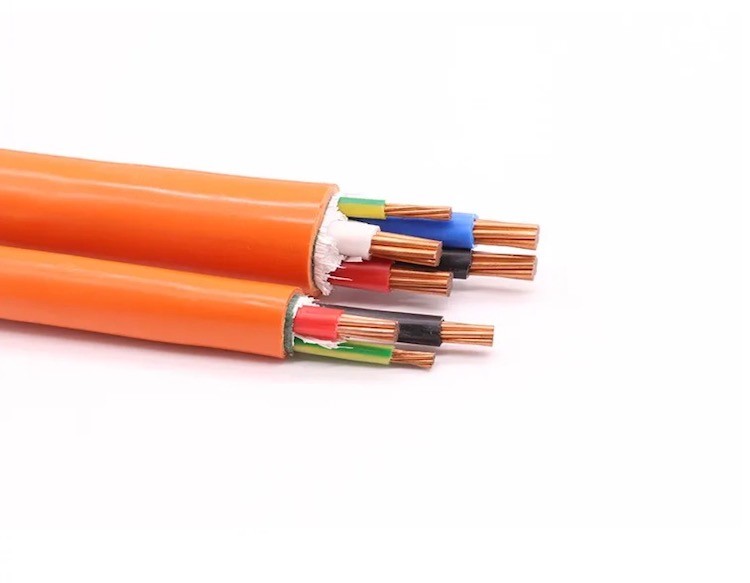

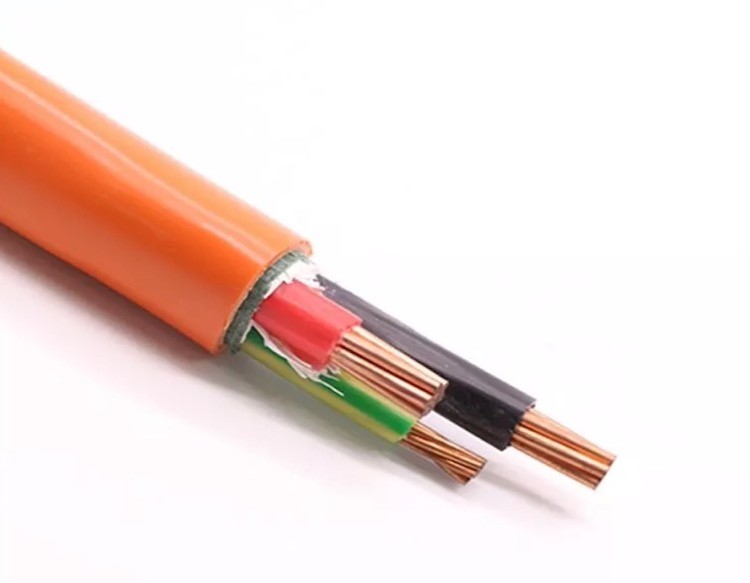

25mm2 PVC Circular 4C E V-90 insulated 5V-90 PVC

Application
For mains, submains and subcircuits unenclosed, in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage and where out of balance currents may require a neutral equal in size to the active.

Applicable Standard
AS/NZS 5000.1

Characteristics
Voltage Rating Uo/U: 0.6/1 kV
Maximum continuous operating temperature: 75 °C
Can also be operated at temperatures up to 90 °C when not exposed to mechanical deformation (see AS/NZS 3008.1)
Minimum Bending Radius: Fixed: 12 x Overall Diameter (O.D.)

Cable Construction
Conductor Material: Copper Wire
Insulation: V-90 PVC
Outer sheath: 5V-90 PVC
Type of conductor: stranded copper
With Green/Yellow Core: Yes
With smaller neutral conductor: No

Dimension Characteristics

Conductor			Cable
Nominal C.S.A. mm2	Number and diameter of wires No./mm	Nominal diameter mm	Nominal insulation thickness mm	Minimum	Maximum	Approx. mass kg/100m	Min. Installed bending radius mm
1.5	7/0.50	1.5	0.8	11.8	12.2	22	50
2.5	7/0.67	2.0	0.8	13.3	13.7	30	55
4	7/0.85	2.6	1.0	15.3	15.8	40	65
6	7/1.04	3.1	1.0	16.5	17.1	48	70
10	7/1.35	4.1	1.0	19.5	20.3	71	80
16	7/1.70	5.1	1.0	22.1	22.9	100	90
25	19/1.35	6.8	1.2	25.6	26.4	144	160
35	19/1.53	7.7	1.2	28.5	29.5	189	180
50	19/1.78	8.9	1.4	33.1	34.3	258	210
70	19/2.14	10.7	1.4	38.0	39.0	353	240
95	19/2.45	12.5	1.6	43.3	44.6	474	270
120	37/2.03	14.2	1.6	47.6	48.8	585	300
150	37/2.25	15.8	1.8	53.1	54.6	729	330
185	37/2.52	17.6	2.0	59.1	60.7	910	360
240	61/2.25	20.3	2.2	67.3	69.1	1195	410
300	61/2.52	22.7	2.4	74.6	76.6	1487	460

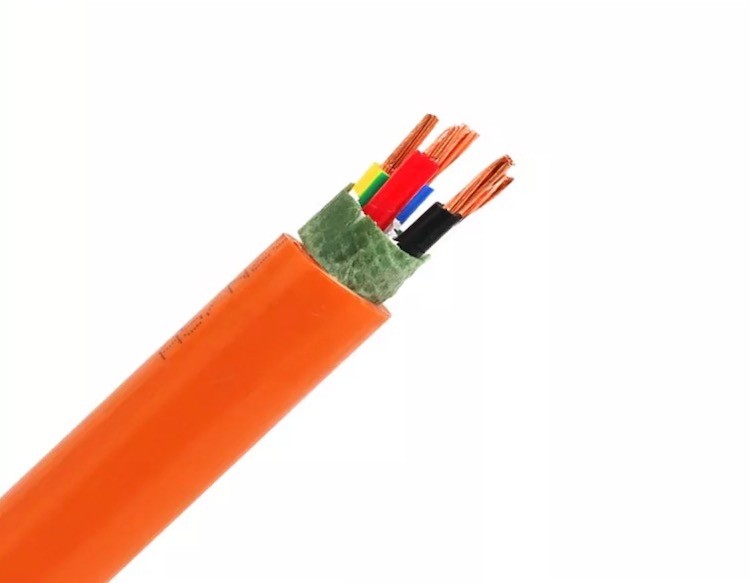

25mm2 PVC Circular 4C E V-90 insulated 5V-90 PVC sheathed to AS/NZS 5000 0.6/1kV Orange Underground Cable

25mm2 PVC Circular 4C+E V-90 insulated 5V-90 PVC sheathed to AS/NZS 5000 0.6/1kV Orange Underground Cable
