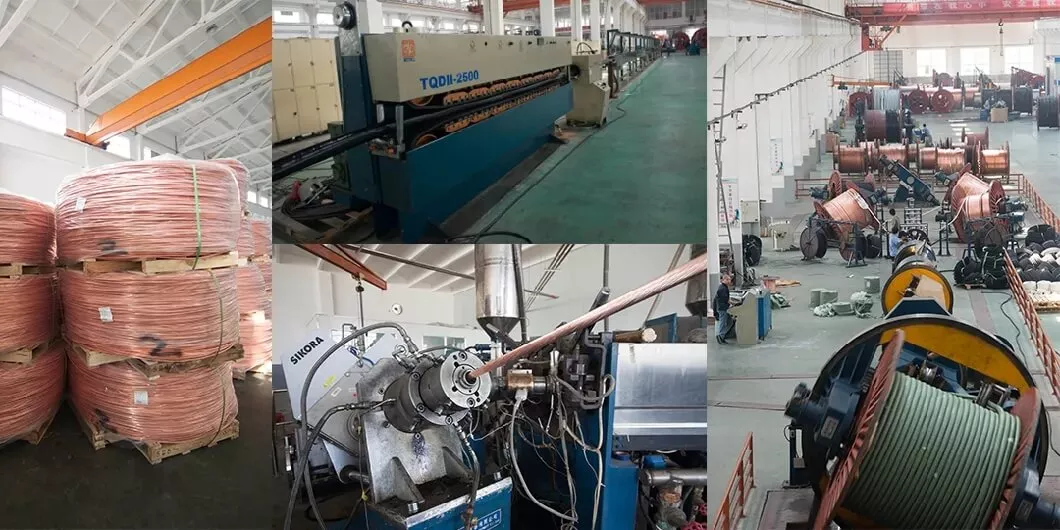

0.6/1kV CU/XLPE/ATA/PVC Electric Power Cable Factory

Description
Armoured cable for fixed installations. Rated voltage 0.6/1 KV.

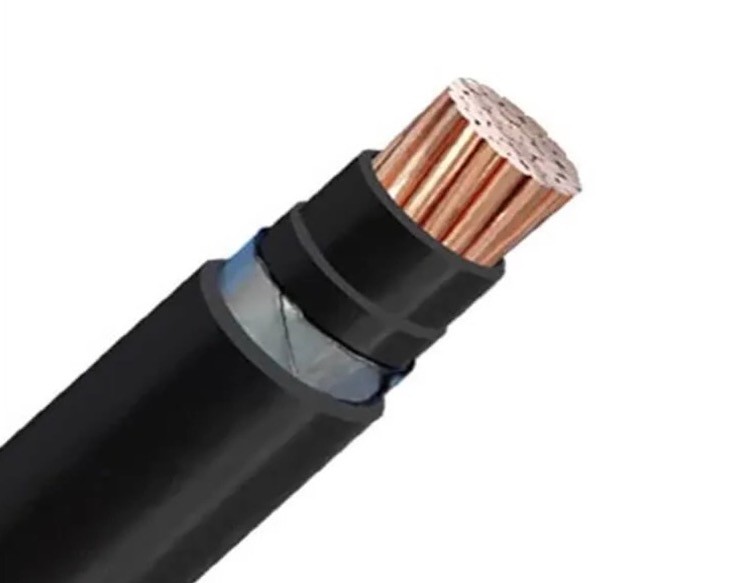

Electric cable with Copper conductors,XLPE insulation, PVC bedding, aluminum tape armour (ATA) and PVC outer sheath.

Application
Multi-core XLPE cable with aluminum tape armour (ATA). Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.

Applicable Standard
IEC 60228

IEC 60502-1

Cable Construction
Conductor: Compact stranded Copper conductor, Cl.2 as per IEC 60228

Insulation: XLPE (cross-linked polyethylene) rated at 90 OC

Inner sheath: PVC

Armored: Aluminum Tape Armor

Sheath: PVC or FR-PVC type ST2 to IEC 60502, black

Dimension Characteristics

Section	Insulation Thickness	Sheath Thickness	Overall Diameter	Cable Weight		DC. Electrical Resistance at 20°C
No.xmm²	mm	mm	mm	Cu	Al	Cu	Al
No.xmm²	mm	mm	mm	kg/km		Ω/km
1x10	0.7	1.8	11.7	254	192	1.83	3.08
1x16	0.7	1.8	12.7	327	228	1.15	1.91
1x25	0.9	1.8	14.4	448	292	0.727	1.20
1x35	0.9	1.8	15.0	543	330	0.524	0.868
1x50	1.0	1.8	16.5	686	397	0.387	0.641
1x70	1.1	1.8	18.2	911	493	0.268	0.443
1x95	1.1	1.8	19.9	1182	601	0.193	0.320
1x120	1.2	1.8	21.6	1440	708	0.153	0.253
1x150	1.4	1.8	23.5	1737	833	0.124	0.206
1x185	1.6	1.8	25.5	2118	987	0.0991	0.164
1x240	1.7	1.8	28.0	2692	1206	0.0754	0.125
1x300	1.8	1.9	30.6	3311	1447	0.0601	0.100
1x400	2.0	2.0	34.1	4166	1782	0.0470	0.0778
1x500	2.2	2.1	38.9	5626	2564	0.0366	0.0605
1x630	2.4	2.3	43.2	7114	3154	0.0283	0.0469
1x800	2.6	2.4	47.8	8918	3848	0.0221	0.0367
