Applicable Standard
IEC 60228
IEC 60840
Characteristics
Voltage Rating Uo/U (Um)
26/45(52)kV
Temperature Range
Fixed: -20°C to +90°C
Minimum Bending Radius
15 x overall diameter

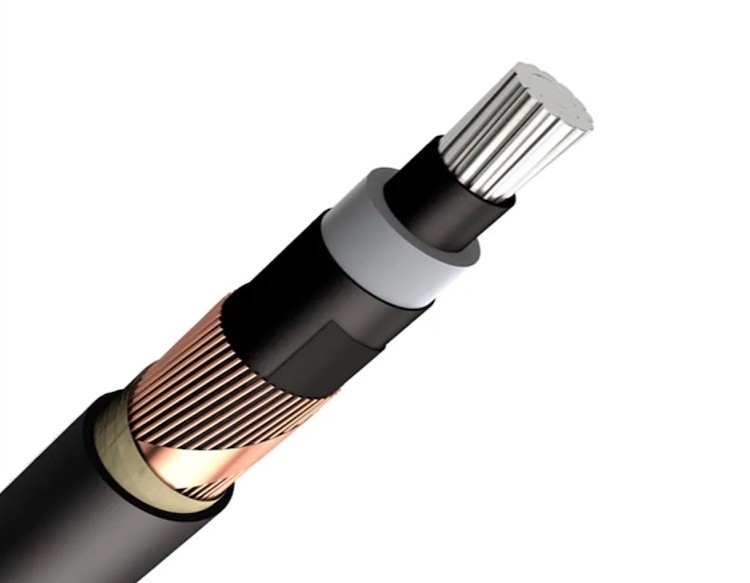

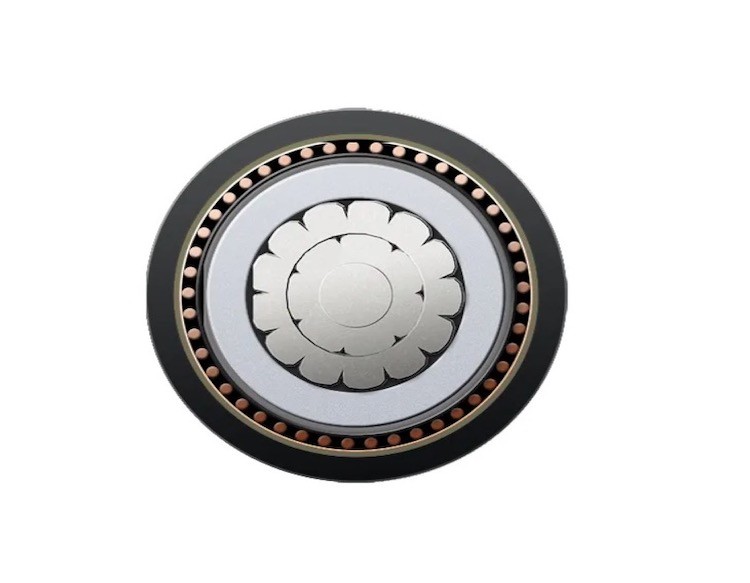

Cable Structure
Conductor
Class 2 Aluminium, circular, stranded
Conductor Screen
Semi-conductive XLPE (Cross-Linked Polyethylene)
Insulation
XLPE (Cross-Linked Polyethylene)
Insulation Screen
Semi-conductive XLPE (Cross-Linked Polyethylene)
Metallic Screen
Copper wire screen
Sheath
LMOH
Sheath Colour
Black
