Description

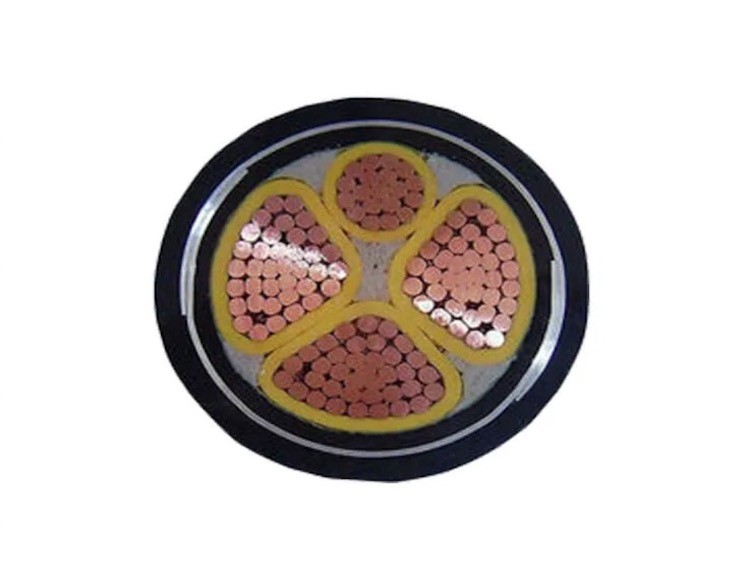

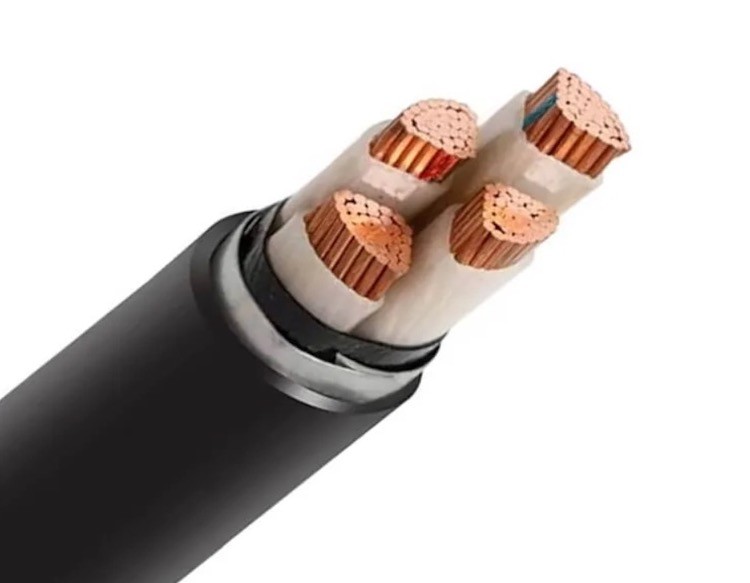

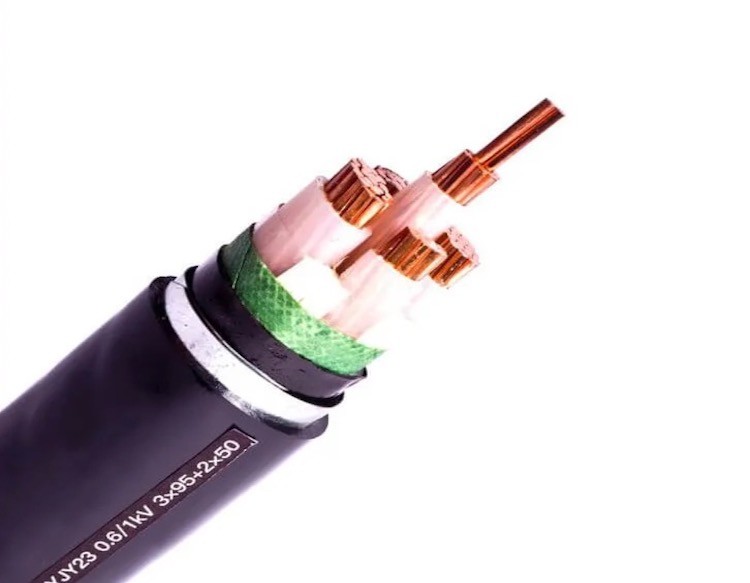

Electric cable with copper conductors, XLPE insulation, PVC bedding, galvanized steel tape armour (STA) and PVC outer sheath
Application
Multi-core PVC cable with steel tape armour (STA). Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.
Applicable Standard
IEC 60228
IEC 60502-1
Cable Construction
Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation: XLPE(cross-linked polyethylene) rated at 90 OC
Inner sheath: PVC
Armored: Galvanized Steel Tape.
Sheath: PVC or FR-PVC type ST2 to IEC 60502, black
Dimension Characteristics
| Section | Insulation Thickness | Sheath Thickness | Overall Diameter | Cable Weight | DC. Electrical Resistance at 20°C |
| No.xmm2 | mm | mm | mm | Cu | Al | Cu | Al |
| kg/km | Ω/km |
| 2x4 | 0.7 | 1.8 | 13.6 | 285 | 235 | 4.61 | 7.41 |
| 2x6 | 0.7 | 1.8 | 14.6 | 346 | 270 | 3.08 | 4.61 |
| 2x10 | 0.7 | 1.8 | 17.2 | 482 | 356 | 1.83 | 3.08 |
| 2x16 | 0.7 | 1.8 | 19.2 | 641 | 439 | 1.15 | 1.91 |
| 2x25 | 0.9 | 1.8 | 22.6 | 904 | 588 | 0.727 | 1.20 |
| 2x35 | 0.9 | 1.8 | 23.8 | 1105 | 672 | 0.524 | 0.868 |
| 2x50 | 1.0 | 1.8 | 26.8 | 1416 | 830 | 0.387 | 0.641 |
| 2x70 | 1.1 | 1.9 | 30.4 | 1915 | 1067 | 0.268 | 0.443 |
| 2x95 | 1.1 | 2.0 | 34.0 | 2514 | 1336 | 0.193 | 0.320 |
| 2x120 | 1.2 | 2.1 | 38.8 | 3465 | 1978 | 0.153 | 0.253 |
| 2x150 | 1.4 | 2.3 | 43.0 | 4197 | 2362 | 0.124 | 0.206 |
| 2x185 | 1.6 | 2.4 | 47.2 | 5098 | 2802 | 0.0991 | 0.164 |
| 2x240 | 1.7 | 2.6 | 52.6 | 6453 | 3436 | 0.0754 | 0.125 |
| 2x300 | 1.8 | 2.7 | 57.6 | 7861 | 4076 | 0.0601 | 0.100 |
| 2x400 | 2.0 | 3.0 | 64.8 | 9875 | 5036 | 0.0470 | 0.0778 |
| 2x500 | 2.2 | 3.2 | 72.0 | 12374 | 6159 | 0.0366 | 0.0605 |
| 3x4 | 0.7 | 1.8 | 14.2 | 338 | 263 | 4.61 | 7.41 |
| 3x6 | 0.7 | 1.8 | 15.3 | 419 | 308 | 3.08 | 4.61 |
| 3x10 | 0.7 | 1.8 | 18.1 | 598 | 408 | 1.83 | 3.08 |
| 3x16 | 0.7 | 1.8 | 20.2 | 811 | 509 | 1.15 | 1.91 |
| 3x25 | 0.9 | 1.8 | 23.9 | 1168 | 693 | 0.727 | 1.20 |
| 3x35 | 0.9 | 1.8 | 25.2 | 1455 | 805 | 0.524 | 0.868 |
| 3x50 | 1.0 | 1.8 | 28.4 | 1883 | 1003 | 0.387 | 0.641 |
| 3x70 | 1.1 | 1.9 | 32.3 | 2580 | 1307 | 0.268 | 0.443 |
| 3x95 | 1.1 | 2.1 | 36.4 | 3439 | 1671 | 0.193 | 0.320 |
| 3x120 | 1.2 | 2.2 | 41.5 | 4650 | 2420 | 0.153 | 0.253 |
| 3x150 | 1.4 | 2.4 | 46.0 | 5652 | 2901 | 0.124 | 0.206 |
| 3x185 | 1.6 | 2.5 | 50.5 | 6906 | 3463 | 0.0991 | 0.164 |
| 3x240 | 1.7 | 2.7 | 56.3 | 8802 | 4277 | 0.0754 | 0.125 |
| 3x300 | 1.8 | 2.9 | 61.9 | 10810 | 5133 | 0.0601 | 0.100 |
| 3x400 | 2.0 | 3.1 | 69.4 | 13590 | 6330 | 0.0470 | 0.0778 |
| 3x500 | 2.2 | 3.3 | 77.1 | 17109 | 7786 | 0.0366 | 0.0605 |
| 4x4 | 0.7 | 1.8 | 15.2 | 400 | 300 | 4.61 | 7.41 |
| 4x6 | 0.7 | 1.8 | 16.4 | 504 | 352 | 3.08 | 4.61 |
| 4x10 | 0.7 | 1.8 | 19.5 | 728 | 475 | 1.83 | 3.08 |
| 4x16 | 0.7 | 1.8 | 21.9 | 1004 | 602 | 1.15 | 1.91 |
| 4x25 | 0.9 | 1.8 | 26.0 | 1461 | 827 | 0.727 | 1.20 |
| 4x35 | 0.9 | 1.8 | 27.5 | 1837 | 971 | 0.524 | 0.868 |
| 4x50 | 1.0 | 1.9 | 31.3 | 2405 | 1233 | 0.387 | 0.641 |
| 4x70 | 1.1 | 2.0 | 35.6 | 3312 | 1615 | 0.268 | 0.443 |
| 4x95 | 1.1 | 2.2 | 41.4 | 4827 | 2470 | 0.193 | 0.320 |
| 4x120 | 1.2 | 2.4 | 45.9 | 5952 | 2979 | 0.153 | 0.253 |
| 4x150 | 1.4 | 2.5 | 50.7 | 7227 | 3558 | 0.124 | 0.206 |
| 4x185 | 1.6 | 2.7 | 55.9 | 8878 | 4287 | 0.0991 | 0.164 |
| 4x240 | 1.7 | 2.9 | 62.4 | 11353 | 5320 | 0.0754 | 0.125 |
| 4x300 | 1.8 | 3.1 | 68.6 | 13970 | 6400 | 0.0601 | 0.100 |
| 4x400 | 2.0 | 3.4 | 77.2 | 17631 | 7951 | 0.0470 | 0.0778 |
| 4x500 | 2.2 | 3.7 | 87.2 | 23128 | 10698 | 0.0366 | 0.0605
|
