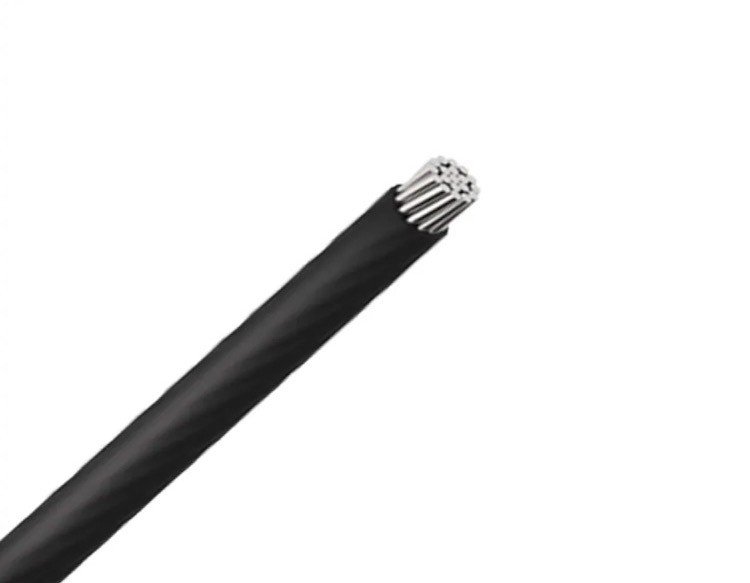

AAC Wasp 100mm2 PVC Insulated Cable for 11kV Distribution Network

    AAC is mainly used as bare overhead transmission cable and as primary and secondary distribution cable. It is also suitable for laying across basins, rivers and valleys where special geographical teatures exist.

    Model:AAC/PVC-0.6/1KV


  • Product Details

Application
AAC is mainly used as bare overhead transmission cable and as primary and secondary distribution cable. It is also suitable for laying across basins, rivers and valleys where special geographical teatures exist.

Applicable Standard
Performance Design and Testing shall be in accordance to the BS, IEC, VDE or equivalent International standards.

Dimension characteristics

Code NameWasp
Number of wires in conductor7
Diameter of wires in conductor4.39 mm
Calculated Cross-sectional Area106.00 mm²
Insulation Material (min.)0.80 mm
Insulation ColourBlack
Weight of bare conductor290 kg/km
Weight of insulated conductor289 kg/km
Max. DC resistance of the conductor at 20°C0.2702 Ohm/km


AAC Wasp 100mm2 PVC Insulated Cable for 11kV Distribution NetworkAAC Wasp 100mm2 PVC Insulated Cable for 11kV Distribution Network
