Covered Line Wire ACSR Conductor Supplier China

Application

These cables are intended primary for the distribution of electrical energy under normal condition of overhead (aerial) installation and service outdoors. Approved for use on insulators for overhead circuits. Otherwise treated as a bare conductor.

Applicable Standard

ICEA S-70-5 47: Weather- Resistant Polyolefin Covered Wire and Cable.

ASTM B231: Concentric- Lay-Stranded Aluminum 1350 Conductors.

ASTM B232: Specification for Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR).

ASTM B399: Specification for Concentric-Lay-Stranded Aluminum Alloy 6201-T81 Conductors.

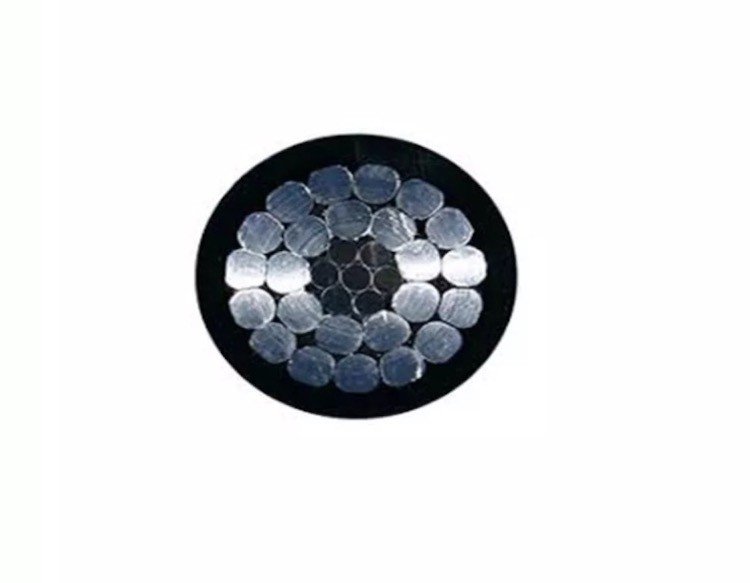

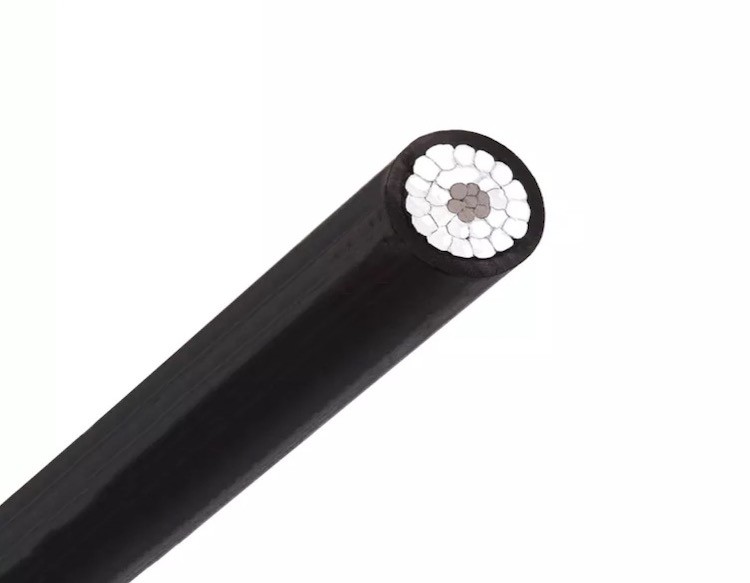

Cable Construction

Conductor: Aluminum alloy 1350-H19 stranded per ASTM B231 or ACSR stranded per ASTM B232 or AAAC stranded per ASTM B399.

Separator: A suitable opaque tape, as required.

Insulation: Black thermoset cross-linked polyethylene (XLPE) or thermoplastic high density polyethylene (HDPE).

Technical Data

Code Word	Size AWG or Kcmil	Number of strands	Insulation Thickness mil	Cable OD in	Rated Strength lb	Weight PE lb/kft	Weight XLPE lb/kft
Walnut	6	6/1	30	0.25	1131	47	46
Butternut	4	6/1	30	0.30	1767	71	70
Hickory	4	7/1	30	0.32	2242	82	82
Pignut	2	6/1	45	0.39	2708	116	115
Beech	2	7/1	45	0.42	3458	135	134
Almond	1/0	6/1	60	0.50	4161	188	186
Pecan	2/0	6/1	60	0.55	5035	232	229
Cottonwood	2/0	6/1	80	0.59	5035	247	247
Fibert	3/0	6/1	60	0.60	6289	286	283
Chokeberry	3/0	6/1	80	0.64	6289	303	300
Buckeye	4/0	6/1	60	0.65	7933	353	351
Gumwood	4/0	6/1	80	0.70	7933	372	369
Hackberry	266.8	18/1	60	0.72	6536	356	353
Redbud	266.8	18/1	80	0.76	6536	377	373
Mockernut	336.4	18/1	60	0.79	8246	441	438
Aspen	336.4	18/1	80	0.83	8246	464	460
