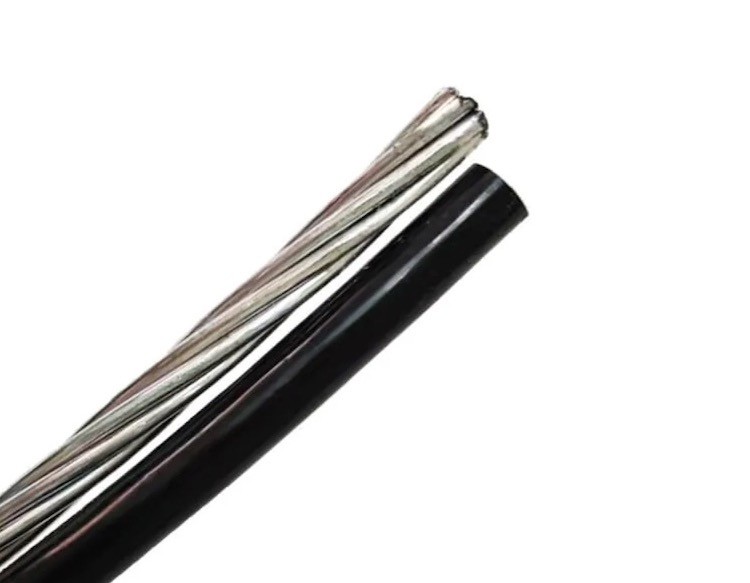

#2AWG CABLE DUPLEX SERVICE - 7 STRANDS, NEUTRAL ICEA S-76-474

    Concentric strand or compressed 1350-H19 conductor, polyethylene or cross-linked polyethylene insulation, concentric strand AAC, ACSR, or 6201 alloy neutral messenger for secondary and overhead service drop applications.

    Model:Service Drop Cable


  • Product Details

Application
To supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75°C maximum.


Applicable Standard

ASTM B 230

ASTM B 231

ASTM B 232

ASTM B 233

ASTM B 399

ICEA S-76-474


Construction
Concentric strand or compressed 1350-H19 conductor, polyethylene or cross-linked polyethylene insulation, concentric strand AAC, ACSR, or 6201 alloy neutral messenger.


Technical Data

Code NamePhase CoreNeutral Bare CoreOuter DiameterCable Weight
SizeNumber of WiresConductor DiameterInsulation ThicknessSizeNumber of WiresConductor Diametermmkg/km
cmils/AWGmmmmcmils/AWGmm
AAC
HALOTIS614.111.14674.5512.50142.34
PIKE674.290.76674.5511.60128.88
PATELLA674.291.14674.5512.70143.63
ALBUS614.111.52674.5513.60158.46
FUSUS415.191.14475.8815.00214.57
OYSTER475.411.14475.8815.30216.14
ARGO475.411.52475.8816.40235.36
CLAM276.811.14277.4118.40321.87
THIA276.811.52277.4119.50344.42
MUSSEL276.811.14277.4118.40321.87
PYRULA177.591.52178.3421.30421.10
HYAS1197.591.52178.3421.30421.10
MUREX1/078.531.521/079.3623.40503.25
PURPURA1/0198.531.521/079.3623.40503.25
NASA2/079.551.522/0710.5025.70633.48
TROPHON2/0199.551.522/0710.5025.70633.48
QUAHOG3/0710.72.033/0711.7929.70832.41
IONE3/01910.72.033/0711.7929.70832.41
MELITA3/01910.71.523/01911.7928.30786.86
COQUINA4/0712.11.524/0713.2631.30974.26
TUSK4/0712.12.034/0713.2632.801024.29
APUS4/01912.12.034/0713.2632.801024.29
PORTUNUS4/01912.11.524/01913.2631.30974.26
CHITON266.81913.62.03266.81915.0536.301211.92
NANNYNOSE336.41915.32.03336.41916.9040.001571.77
AAAC
HOMARUS614.111.14675.0412.80148.74
MINEX614.111.14675.0412.80148.74
CABERA674.291.14675.0413.10150.03
HIPPA674.291.14675.0413.10150.03
ARTEMIA415.191.14675.0414.40199.27
MAIRA475.411.14675.0414.70200.84
CRAB475.411.14675.0414.70200.84
LUIDIA415.191.14675.0414.40199.27
PRAWN415.191.14476.3615.30224.27
METALIA475.411.14476.3615.70225.84
BARNACLES475.411.14476.3615.70225.84
SOLASTER276.811.14476.3617.70297.17
PAGARUS276.811.52476.3618.80319.72
SHRIMP276.811.14278.0218.90337.17
LOBSTER276.811.52278.0220.00359.72
ENCOPE1197.591.52278.0221.10412.30
SANDERAB1/078.531.52278.0222.40463.75
ECHINUS1/0198.531.52278.0222.40463.75
GAMMARUS1/078.531.521/0710.1123.90527.75
LEDA1/0198.531.521/0710.1123.90527.75
CRAYFISH2/079.551.52278.0223.90555.58
SIPHO2/0199.551.52278.0223.90555.58
DUNGENESE2/079.551.522/0711.3526.30664.58
CYCLOPS2/079.551.522/0711.3526.30664.58
SLUG3/0710.71.521/0710.1127.10724.46
FULGUR3/01910.71.521/0710.1127.10724.46
BALANUS3/01910.72.031/0710.1128.50770.01
STONECRAB3/0710.71.523/0712.7529.00825.46
FLUSTRA3/0710.71.523/0712.7529.00825.46
CRISIA3/01910.72.033/0712.7530.40871.01
SQUID4/0712.11.522/0711.3530.00895.66
ARCA4/01912.11.522/0711.3530.00895.66
BUGULA4/01912.12.032/0711.3531.40945.69
KINGERAB4/0712.11.524/0714.3132.101023.66
LEPAS4/01912.11.524/0714.3132.101023.66
CASSI4/01912.12.034/0714.3133.601073.69
ACSR
PALUDINA614.111.1466/15.0312.80159.34
VOLUTA674.291.1466/15.0313.10160.63
BOLMA674.291.5266/15.0314.20177.18
SCALLOP415.191.1466/15.0314.40209.87
STROMBUS475.411.1466/15.0314.70211.44
CARNEA475.411.5266/15.0315.80230.66
WHELK415.191.1446/16.3515.30241.62
PERIWINKLE475.411.1446/16.3515.60243.19
CALMA475.411.5246/16.3516.70262.41
COCKLE276.811.1446/16.3517.70314.52
GEBIA276.811.5246/16.3518.80337.07
CONCH276.811.1426/18.0318.90364.89
UCA276.811.5226/18.0320.00387.44
VERMETHS177.591.5216/18.9921.80475.44
ATYA1197.591.5216/18.9921.80475.44
JANTHINA1/078.531.5226/18.0322.40491.47
RANELLA1/0198.531.5226/18.0322.40491.47
NERITINA1/078.531.521/06/110.1123.90571.83
CENIA1/0198.531.521/06/110.1123.90571.83
CAVOLINIA2/079.551.5216/18.9924.60618.72
CLIO2/0199.551.5216/18.9924.60618.72
RUNCINA2/079.551.522/06/111.3526.30719.62
TRITON2/0199.551.522/06/111.3526.30719.62
SANDDOLLAR3/0710.71.521/06/110.1127.10768.54
AEGA3/01910.71.521/06/110.1127.10768.54
PISA3/01910.72.031/06/110.1128.50814.09
CHERRYSTONE3/0710.71.523/06/112.7529.00895.48
MURSIA3/01910.71.523/06/112.7529.00895.48
MYSIS3/01910.72.033/06/112.7530.40941.03
CUTTLEFISH4/0712.11.522/06/111.3530.00950.70
CERAPUS4/01912.11.522/06/111.3530.00950.70
NEPATUS4/01912.12.032/06/111.3531.401000.73
RAZOR4/0712.11.524/06/114.3032.101111.42
ZUZARA4/01912.11.524/06/114.3032.101111.42
ALIMA4/01912.12.034/06/114.3033.601161.45
CALLISTA266.81913.62.033/06/112.7534.601227.15
DOSINIA266.81913.62.0326718/115.4736.601314.35
COWRY336.41915.32.034/06/114.3038.201534.53
LIMPET336.41915.32.0333618/117.3740.401644.65
