Application
To supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75°C maximum.
Applicable Standard
ASTM B 230
ASTM B 231
ASTM B 232
ASTM B 233
ASTM B 399
ICEA S-76-474
Construction

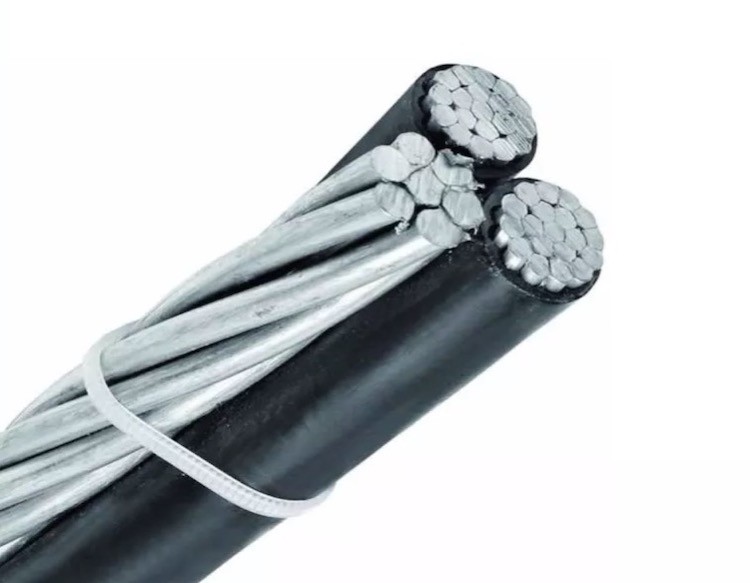

Concentric strand or compressed 1350-H19 conductor, polyethylene or cross-linked polyethylene insulation, concentric strand AAC, ACSR, or 6201 alloy neutral messenger.
Technical Data
| Code Name | Phase Core | Neutral Bare Core | Outer Diameter | Cable Weight |
| Size | Number of Wires | Conductor Diameter | Insulation Thickness | Size | Number of Wires | Conductor Diameter | mm | kg/km |
| cmils/AWG | mm | mm | cmils/AWG | mm |
| AAC |
| HALOTIS | 6 | 1 | 4.11 | 1.14 | 6 | 7 | 4.55 | 12.50 | 142.34 |
| PIKE | 6 | 7 | 4.29 | 0.76 | 6 | 7 | 4.55 | 11.60 | 128.88 |
| PATELLA | 6 | 7 | 4.29 | 1.14 | 6 | 7 | 4.55 | 12.70 | 143.63 |
| ALBUS | 6 | 1 | 4.11 | 1.52 | 6 | 7 | 4.55 | 13.60 | 158.46 |
| FUSUS | 4 | 1 | 5.19 | 1.14 | 4 | 7 | 5.88 | 15.00 | 214.57 |
| OYSTER | 4 | 7 | 5.41 | 1.14 | 4 | 7 | 5.88 | 15.30 | 216.14 |
| ARGO | 4 | 7 | 5.41 | 1.52 | 4 | 7 | 5.88 | 16.40 | 235.36 |
| CLAM | 2 | 7 | 6.81 | 1.14 | 2 | 7 | 7.41 | 18.40 | 321.87 |
| THIA | 2 | 7 | 6.81 | 1.52 | 2 | 7 | 7.41 | 19.50 | 344.42 |
| MUSSEL | 2 | 7 | 6.81 | 1.14 | 2 | 7 | 7.41 | 18.40 | 321.87 |
| PYRULA | 1 | 7 | 7.59 | 1.52 | 1 | 7 | 8.34 | 21.30 | 421.10 |
| HYAS | 1 | 19 | 7.59 | 1.52 | 1 | 7 | 8.34 | 21.30 | 421.10 |
| MUREX | 1/0 | 7 | 8.53 | 1.52 | 1/0 | 7 | 9.36 | 23.40 | 503.25 |
| PURPURA | 1/0 | 19 | 8.53 | 1.52 | 1/0 | 7 | 9.36 | 23.40 | 503.25 |
| NASA | 2/0 | 7 | 9.55 | 1.52 | 2/0 | 7 | 10.50 | 25.70 | 633.48 |
| TROPHON | 2/0 | 19 | 9.55 | 1.52 | 2/0 | 7 | 10.50 | 25.70 | 633.48 |
| QUAHOG | 3/0 | 7 | 10.7 | 2.03 | 3/0 | 7 | 11.79 | 29.70 | 832.41 |
| IONE | 3/0 | 19 | 10.7 | 2.03 | 3/0 | 7 | 11.79 | 29.70 | 832.41 |
| MELITA | 3/0 | 19 | 10.7 | 1.52 | 3/0 | 19 | 11.79 | 28.30 | 786.86 |
| COQUINA | 4/0 | 7 | 12.1 | 1.52 | 4/0 | 7 | 13.26 | 31.30 | 974.26 |
| TUSK | 4/0 | 7 | 12.1 | 2.03 | 4/0 | 7 | 13.26 | 32.80 | 1024.29 |
| APUS | 4/0 | 19 | 12.1 | 2.03 | 4/0 | 7 | 13.26 | 32.80 | 1024.29 |
| PORTUNUS | 4/0 | 19 | 12.1 | 1.52 | 4/0 | 19 | 13.26 | 31.30 | 974.26 |
| CHITON | 266.8 | 19 | 13.6 | 2.03 | 266.8 | 19 | 15.05 | 36.30 | 1211.92 |
| NANNYNOSE | 336.4 | 19 | 15.3 | 2.03 | 336.4 | 19 | 16.90 | 40.00 | 1571.77 |
| AAAC |
| HOMARUS | 6 | 1 | 4.11 | 1.14 | 6 | 7 | 5.04 | 12.80 | 148.74 |
| MINEX | 6 | 1 | 4.11 | 1.14 | 6 | 7 | 5.04 | 12.80 | 148.74 |
| CABERA | 6 | 7 | 4.29 | 1.14 | 6 | 7 | 5.04 | 13.10 | 150.03 |
| HIPPA | 6 | 7 | 4.29 | 1.14 | 6 | 7 | 5.04 | 13.10 | 150.03 |
| ARTEMIA | 4 | 1 | 5.19 | 1.14 | 6 | 7 | 5.04 | 14.40 | 199.27 |
| MAIRA | 4 | 7 | 5.41 | 1.14 | 6 | 7 | 5.04 | 14.70 | 200.84 |
| CRAB | 4 | 7 | 5.41 | 1.14 | 6 | 7 | 5.04 | 14.70 | 200.84 |
| LUIDIA | 4 | 1 | 5.19 | 1.14 | 6 | 7 | 5.04 | 14.40 | 199.27 |
| PRAWN | 4 | 1 | 5.19 | 1.14 | 4 | 7 | 6.36 | 15.30 | 224.27 |
| METALIA | 4 | 7 | 5.41 | 1.14 | 4 | 7 | 6.36 | 15.70 | 225.84 |
| BARNACLES | 4 | 7 | 5.41 | 1.14 | 4 | 7 | 6.36 | 15.70 | 225.84 |
| SOLASTER | 2 | 7 | 6.81 | 1.14 | 4 | 7 | 6.36 | 17.70 | 297.17 |
| PAGARUS | 2 | 7 | 6.81 | 1.52 | 4 | 7 | 6.36 | 18.80 | 319.72 |
| SHRIMP | 2 | 7 | 6.81 | 1.14 | 2 | 7 | 8.02 | 18.90 | 337.17 |
| LOBSTER | 2 | 7 | 6.81 | 1.52 | 2 | 7 | 8.02 | 20.00 | 359.72 |
| ENCOPE | 1 | 19 | 7.59 | 1.52 | 2 | 7 | 8.02 | 21.10 | 412.30 |
| SANDERAB | 1/0 | 7 | 8.53 | 1.52 | 2 | 7 | 8.02 | 22.40 | 463.75 |
| ECHINUS | 1/0 | 19 | 8.53 | 1.52 | 2 | 7 | 8.02 | 22.40 | 463.75 |
| GAMMARUS | 1/0 | 7 | 8.53 | 1.52 | 1/0 | 7 | 10.11 | 23.90 | 527.75 |
| LEDA | 1/0 | 19 | 8.53 | 1.52 | 1/0 | 7 | 10.11 | 23.90 | 527.75 |
| CRAYFISH | 2/0 | 7 | 9.55 | 1.52 | 2 | 7 | 8.02 | 23.90 | 555.58 |
| SIPHO | 2/0 | 19 | 9.55 | 1.52 | 2 | 7 | 8.02 | 23.90 | 555.58 |
| DUNGENESE | 2/0 | 7 | 9.55 | 1.52 | 2/0 | 7 | 11.35 | 26.30 | 664.58 |
| CYCLOPS | 2/0 | 7 | 9.55 | 1.52 | 2/0 | 7 | 11.35 | 26.30 | 664.58 |
| SLUG | 3/0 | 7 | 10.7 | 1.52 | 1/0 | 7 | 10.11 | 27.10 | 724.46 |
| FULGUR | 3/0 | 19 | 10.7 | 1.52 | 1/0 | 7 | 10.11 | 27.10 | 724.46 |
| BALANUS | 3/0 | 19 | 10.7 | 2.03 | 1/0 | 7 | 10.11 | 28.50 | 770.01 |
| STONECRAB | 3/0 | 7 | 10.7 | 1.52 | 3/0 | 7 | 12.75 | 29.00 | 825.46 |
| FLUSTRA | 3/0 | 7 | 10.7 | 1.52 | 3/0 | 7 | 12.75 | 29.00 | 825.46 |
| CRISIA | 3/0 | 19 | 10.7 | 2.03 | 3/0 | 7 | 12.75 | 30.40 | 871.01 |
| SQUID | 4/0 | 7 | 12.1 | 1.52 | 2/0 | 7 | 11.35 | 30.00 | 895.66 |
| ARCA | 4/0 | 19 | 12.1 | 1.52 | 2/0 | 7 | 11.35 | 30.00 | 895.66 |
| BUGULA | 4/0 | 19 | 12.1 | 2.03 | 2/0 | 7 | 11.35 | 31.40 | 945.69 |
| KINGERAB | 4/0 | 7 | 12.1 | 1.52 | 4/0 | 7 | 14.31 | 32.10 | 1023.66 |
| LEPAS | 4/0 | 19 | 12.1 | 1.52 | 4/0 | 7 | 14.31 | 32.10 | 1023.66 |
| CASSI | 4/0 | 19 | 12.1 | 2.03 | 4/0 | 7 | 14.31 | 33.60 | 1073.69 |
| ACSR |
| PALUDINA | 6 | 1 | 4.11 | 1.14 | 6 | 6/1 | 5.03 | 12.80 | 159.34 |
| VOLUTA | 6 | 7 | 4.29 | 1.14 | 6 | 6/1 | 5.03 | 13.10 | 160.63 |
| BOLMA | 6 | 7 | 4.29 | 1.52 | 6 | 6/1 | 5.03 | 14.20 | 177.18 |
| SCALLOP | 4 | 1 | 5.19 | 1.14 | 6 | 6/1 | 5.03 | 14.40 | 209.87 |
| STROMBUS | 4 | 7 | 5.41 | 1.14 | 6 | 6/1 | 5.03 | 14.70 | 211.44 |
| CARNEA | 4 | 7 | 5.41 | 1.52 | 6 | 6/1 | 5.03 | 15.80 | 230.66 |
| WHELK | 4 | 1 | 5.19 | 1.14 | 4 | 6/1 | 6.35 | 15.30 | 241.62 |
| PERIWINKLE | 4 | 7 | 5.41 | 1.14 | 4 | 6/1 | 6.35 | 15.60 | 243.19 |
| CALMA | 4 | 7 | 5.41 | 1.52 | 4 | 6/1 | 6.35 | 16.70 | 262.41 |
| COCKLE | 2 | 7 | 6.81 | 1.14 | 4 | 6/1 | 6.35 | 17.70 | 314.52 |
| GEBIA | 2 | 7 | 6.81 | 1.52 | 4 | 6/1 | 6.35 | 18.80 | 337.07 |
| CONCH | 2 | 7 | 6.81 | 1.14 | 2 | 6/1 | 8.03 | 18.90 | 364.89 |
| UCA | 2 | 7 | 6.81 | 1.52 | 2 | 6/1 | 8.03 | 20.00 | 387.44 |
| VERMETHS | 1 | 7 | 7.59 | 1.52 | 1 | 6/1 | 8.99 | 21.80 | 475.44 |
| ATYA | 1 | 19 | 7.59 | 1.52 | 1 | 6/1 | 8.99 | 21.80 | 475.44 |
| JANTHINA | 1/0 | 7 | 8.53 | 1.52 | 2 | 6/1 | 8.03 | 22.40 | 491.47 |
| RANELLA | 1/0 | 19 | 8.53 | 1.52 | 2 | 6/1 | 8.03 | 22.40 | 491.47 |
| NERITINA | 1/0 | 7 | 8.53 | 1.52 | 1/0 | 6/1 | 10.11 | 23.90 | 571.83 |
| CENIA | 1/0 | 19 | 8.53 | 1.52 | 1/0 | 6/1 | 10.11 | 23.90 | 571.83 |
| CAVOLINIA | 2/0 | 7 | 9.55 | 1.52 | 1 | 6/1 | 8.99 | 24.60 | 618.72 |
| CLIO | 2/0 | 19 | 9.55 | 1.52 | 1 | 6/1 | 8.99 | 24.60 | 618.72 |
| RUNCINA | 2/0 | 7 | 9.55 | 1.52 | 2/0 | 6/1 | 11.35 | 26.30 | 719.62 |
| TRITON | 2/0 | 19 | 9.55 | 1.52 | 2/0 | 6/1 | 11.35 | 26.30 | 719.62 |
| SANDDOLLAR | 3/0 | 7 | 10.7 | 1.52 | 1/0 | 6/1 | 10.11 | 27.10 | 768.54 |
| AEGA | 3/0 | 19 | 10.7 | 1.52 | 1/0 | 6/1 | 10.11 | 27.10 | 768.54 |
| PISA | 3/0 | 19 | 10.7 | 2.03 | 1/0 | 6/1 | 10.11 | 28.50 | 814.09 |
| CHERRYSTONE | 3/0 | 7 | 10.7 | 1.52 | 3/0 | 6/1 | 12.75 | 29.00 | 895.48 |
| MURSIA | 3/0 | 19 | 10.7 | 1.52 | 3/0 | 6/1 | 12.75 | 29.00 | 895.48 |
| MYSIS | 3/0 | 19 | 10.7 | 2.03 | 3/0 | 6/1 | 12.75 | 30.40 | 941.03 |
| CUTTLEFISH | 4/0 | 7 | 12.1 | 1.52 | 2/0 | 6/1 | 11.35 | 30.00 | 950.70 |
| CERAPUS | 4/0 | 19 | 12.1 | 1.52 | 2/0 | 6/1 | 11.35 | 30.00 | 950.70 |
| NEPATUS | 4/0 | 19 | 12.1 | 2.03 | 2/0 | 6/1 | 11.35 | 31.40 | 1000.73 |
| RAZOR | 4/0 | 7 | 12.1 | 1.52 | 4/0 | 6/1 | 14.30 | 32.10 | 1111.42 |
| ZUZARA | 4/0 | 19 | 12.1 | 1.52 | 4/0 | 6/1 | 14.30 | 32.10 | 1111.42 |
| ALIMA | 4/0 | 19 | 12.1 | 2.03 | 4/0 | 6/1 | 14.30 | 33.60 | 1161.45 |
| CALLISTA | 266.8 | 19 | 13.6 | 2.03 | 3/0 | 6/1 | 12.75 | 34.60 | 1227.15 |
| DOSINIA | 266.8 | 19 | 13.6 | 2.03 | 267 | 18/1 | 15.47 | 36.60 | 1314.35 |
| COWRY | 336.4 | 19 | 15.3 | 2.03 | 4/0 | 6/1 | 14.30 | 38.20 | 1534.53 |
| LIMPET | 336.4 | 19 | 15.3 | 2.03 | 336 | 18/1 | 17.37 | 40.40 | 1644.65
|
