Application

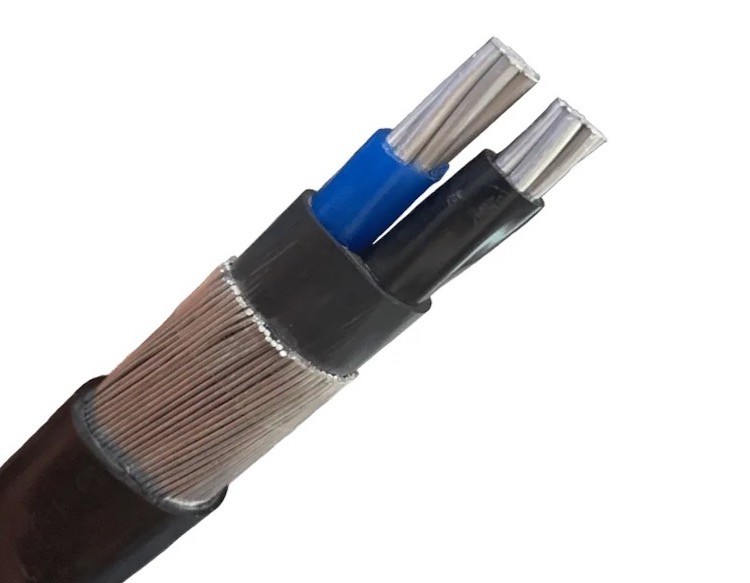

The cable shall be aluminium concentric neutral aerial cable, cross-linked polyethylene insulated(XLPE), indented for installation pole to pole or pole to building for secondary low voltage service applications, on 50 Hertz distribution system, voltage less than 600 volts between insulated conductors. The cable shall be reated 90℃ for normal operation.
Applicable Standard
ASTM B 398
ASTM B 399
ASTM B 230
ASTM B 231
NEMA WC-21
ICEA S-95-658/NEMA WC70
Cable Construction
Conductors
The conductors shall be all aluminium alloy conductor (AAAC).
Phase Conductor
The phase conductor shall be concentrically stranded from 1350-H19(EC-H19) Aluminium in accordance with ASTM B230, ASTM B231 standards.
Concentric Neutral Conductor
The concentric neutral conductor shall be constructed from 6201-T81 Aluminium Alloy in accordance with ASTM B398, ASTM B399 standards.
Insulation
The insulation of the phase conductor shall be black XLPE.
