Application
Aerial Bundled Cable is designed for residential and rural areas for reducing the bushfire hazards. The XLPE covering contains a high level of carbon black for UV resistance. It is designed for where reliability, safety and low installation cost are required, but it is only for short spans due to increased weight.
Applicable Standard
NF C 33-209

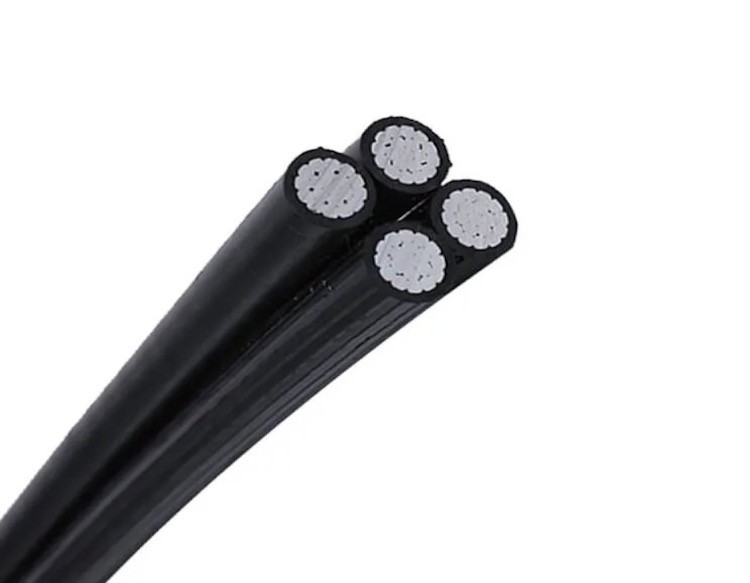

Cable Construction
Phase Conductor (AAC Compacted)
All conductors shall be constructed to IEC 61089. The properties of the Aluminium wires before stranding shall be as below.
Netural Conductor (AAAC Non-Compacted)
The neutral shall be an All-Aluminium-Alloy conductor composed of wires drawn from rod, which is manufactured in a continuous casting and rolling procedure. The properties for the individual wires before stranding shall be
Insulation
The Insulating Material shall be of black weather resistant cross linked thermosetting polyethylene (XLPE) conforming to IEC60502/IEC60811/ ASTM D 1603 and it shall be fully pressure extruded on the bare conductors of the phases / street lamp / neutral.
Dimenison Characteristics
