Airdac SNE Cable House Service Connecting Cable with or without Pilot Cores SANS 1507-6

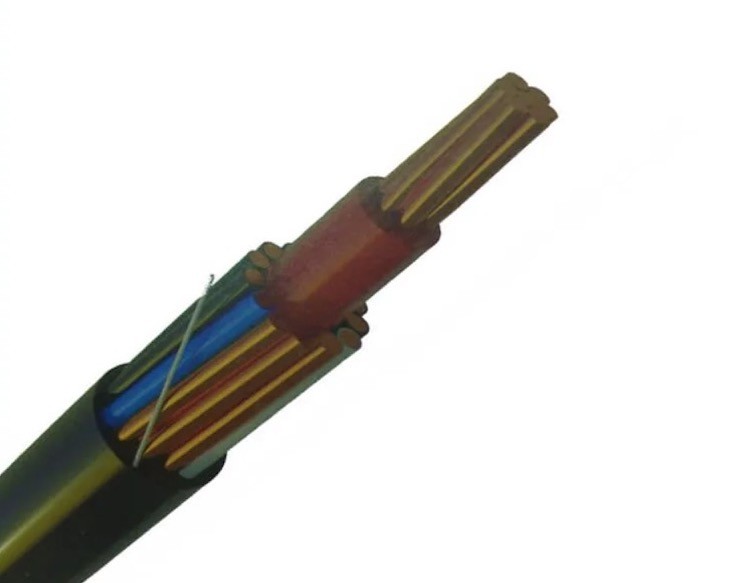

Circular stranded hard drawn copper phase conductor, XLPE insulated with concentrically arranged identified neutral and bare earth conductors. Polyethylene sheathed 600/1000V service connection cable. Nylon ripcord laid under sheath. Manufactured to SANS 1507 -6.

Model:Airdac SNE Cable

Description

Small overall diameter - concentric construction (SNE - Seperate Neutral Earth).

Lower mass - due to smaller diameter - no steel wire armour.

Increased safety - reliable earthing.

Improved reliability -UV stable sheath and core insulation andwater blocked.

Tamper and vandal proof - unauthorised access to phase conductor inhibited by concentric layer.

Easy strip with nylon ripcord.

Applicable Standard
SANS 1507-6

Dimension Characteristics
Electrical Properties

Cable Size (mm²)	10	16
Phase Conductor Resistance (Ohm/km) DC @20°C	1.90	1.20
Earth Size (mm²)	7.5	10
Netural Size (mm²)	10	16
Phase Core Impedance (Z) (Ohm/km)	2.34	1.47
Current Rating *(A)	50	70
Pilot Core (No. X OD) Soild (mm)	2 x 1.13	2 x 1.13

*Note: - In air, with 30 °C ambient with maximum conductor temperature 90 °C

Mechanical Properties

Cable Size (mm²)	10	16
Phase Conductor (No. X OD) (mm)	7 x 1.35	7 x 1.67
Nominal Insulation Thickness (mm)	1.0	1.0
Netural Conductor (No. X OD) (mm)	7 x 1.33	7 x 1.76
Earth Conductor (No. X OD) (mm)	3 x 1.78	3 x 2.20
Nominal Sheath Thickness (mm)	1.6	1.6
Approximate Cable OD (mm)	12.8	14.5
Approximate Cable Mass (kg/km)	320	485

Airdac SNE Cable House Service Connecting Cable with or without Pilot Cores SANS 1507-6
