Airdac CNE Cable House Service Connection Cable (600/1000V) SANS 1507-6 Exporter China

Description

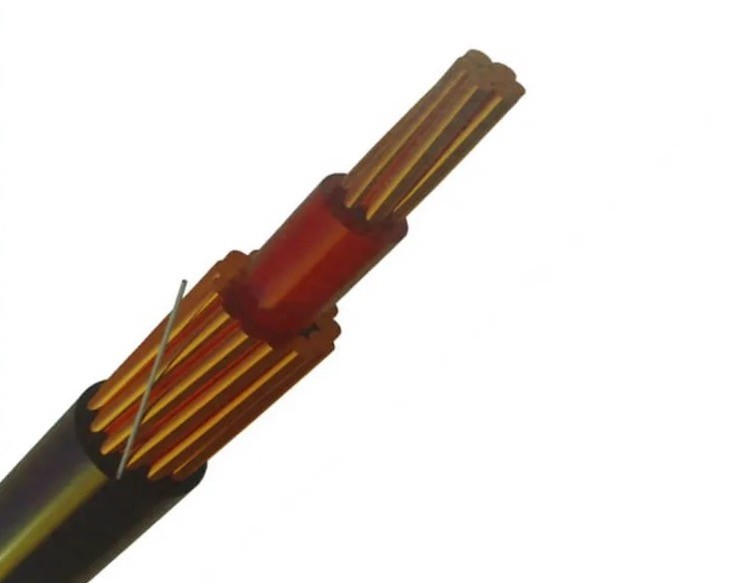

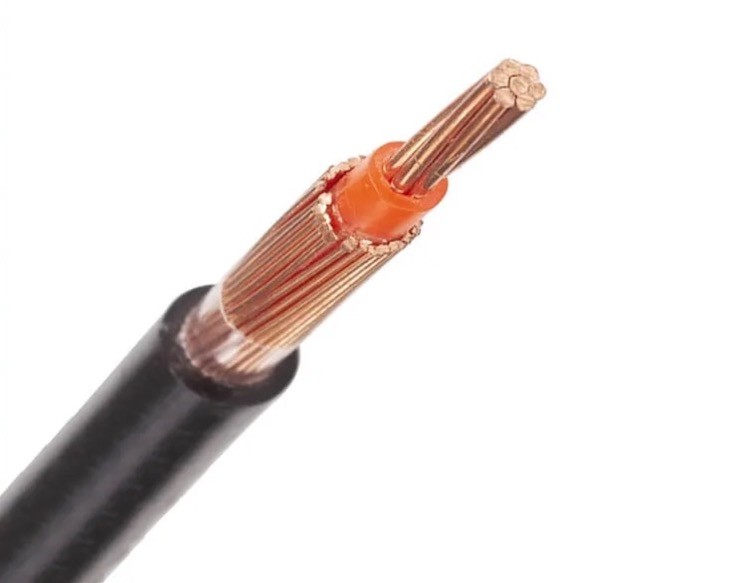

Circular stranded hard-drawn copper phase conductor, XLPE insulated with concentrically arranged bare earth conductors.Polyethylene sheathed 600/1000 V house service connection cable. Nylon ripcord laid under sheath.

Small overall diameter - concentric construction

Lower mass - due to smaller diameter - no steel wire armour

Increased safety - reliable earthing

Improved reliability - UV stable sheath and core insulation

Tamper and vandal proof - unauthorised access to phase conductor inhibited by concentric layer

Easy strip with nylon ripcord

Applicable Standard
SANS 1507-6

Dimension Characteristics
Electrical Properties

Cable Size (mm²)	4	10
Phase Conductor Resistance (Ohm/km) DC @20°C	4.80	1.90
Phase Core Impedance (Z) (Ohm/km)	5.88	2.34
Current Rating *(A)	30	50
Symmetrical Short Circuit Rating for 1s in kA	0.572	1.431

*Note: - In air, with 30 °C ambient with maximum conductor temperature 90 °C

Mechanical Properties

Cable Size (mm²)	4	10
Phase Conductor (No. X OD) (mm)	7 x 0.92	7 x 1.45
Nominal Insulation Thickness (mm)	1.0	1.0
Earth Size (mm²)	4	10
Earth Conductor (No. X OD) (mm)	8 x 0.85	18 x 0.85
Nominal Sheath Thickness (mm)	1.4	1.4
Approximate Cable OD (mm)	9.0	11.0
Approximate Cable Mass (kg/km)	121	249
