Application
To supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75°C maximum.
Applicable Standard
ASTM B 230
ASTM B 231
ASTM B 232
ASTM B 233
ICEA S-66-524 (NEMA WC7)
Construction

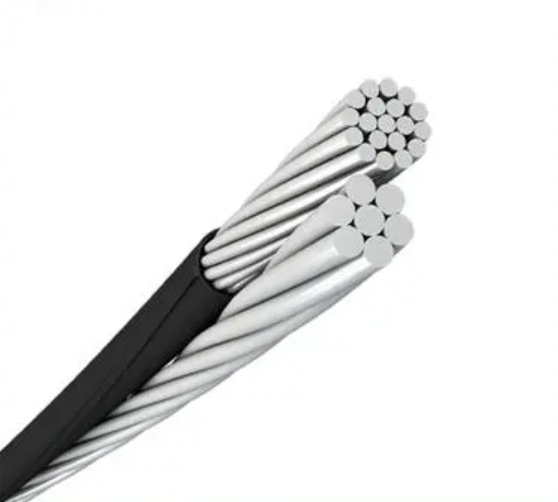

Concentric strand or compressed 1350-H19 conductor, polyethylene or cross-linked polyethylene insulation, concentric strand AAC, ACSR, or 6201 alloy neutral messenger.
Technical Data
Code
Name | Conductor
Assembly | Phase Conductor (AAC) | Messenger (ACSR) | Approx
Cable
Weight | D.C. Resistance
at 20°C |
| Size | Stranding
& Wire
Dia | Insulation
Thickness | Size | Stranding & Wire Dia |
|
| Aluminum | Steel | Phase | Messenger |
| AWG | no./mm | mis/mm | AWG | no./mm | no./mm | kg/km | ohm/km | ohm/km |
| D-11 | DUPLEX | 6 | 7/1.56 | 45/1.143 | 6 | 6/1.68 | 1/1.68 | 114 | 2.169 | 2.157 |
| D-12 | DUPLEX | 3 | 7/2.2 | 45/1.143 | 3 | 6/2.38 | 1/2.38 | 212 | 1.076 | 1.074 |
| D-14 | QUADRUPLEX | 3 | 7/2.2 | 45/1.143 | 3 | 6/2.38 | 1/2.38 | 420 | 1.076 | 1.074 |
| D-15 | QUADRUPLEX | 1/0 | 7/3.12 | 60/1.524 | 1/0 | 6/3.37 | 1/3.37 | 835 | 0.5372 | 0.535 |
| D-20 | QUADRUPLEX | 4 | 7/1.96 | 45/1.143 | 4 | 6/2.12 | 1/2.12 | 340 | 1.3620 | 1.3560 |
| D-24 | QUADRUPLEX | 4/0 | 7/4.42 | 60/1.524 | 4/0 | 6/4.77 | 1/4.77 | 1580 | 0.2688 | 0.2676 |
| D-25 | QUADRUPLEX | 6 | 7/1.56 | 45/1.143 | 6 | 6/1.68 | 1/1.68 | 230 | 2.1690 | 2.1570 |
