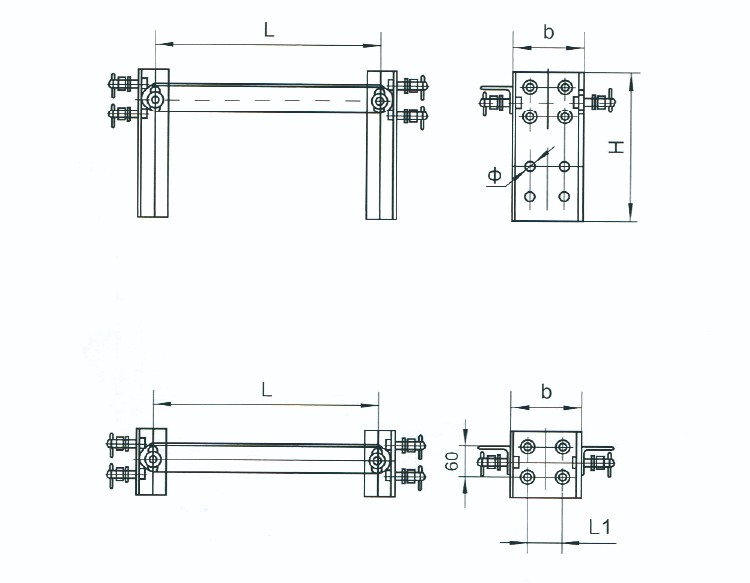

| Catalog No. | Dimensions(mm) | Weight(KG) | |||
| Φ | b | H | L | ||
| ZCJ-45 | 18 | 120 | 300 | 370 | 10.5 |
| ZCJ-45H | 18 | 120 | 445 | 358 | 14.2 |
| ZCJ-50 | 18 | 120 | 300 | 416 | 13.1 |
| ZCJ-50S | 18 | 120 | 300 | 420 | 13.5 |
| Catalog No. | Dimensions(mm) | Weight(KG) | ||
| b | L1 | L | ||
| ZCJ-450 | 120 | 60 | 450 | 6 |

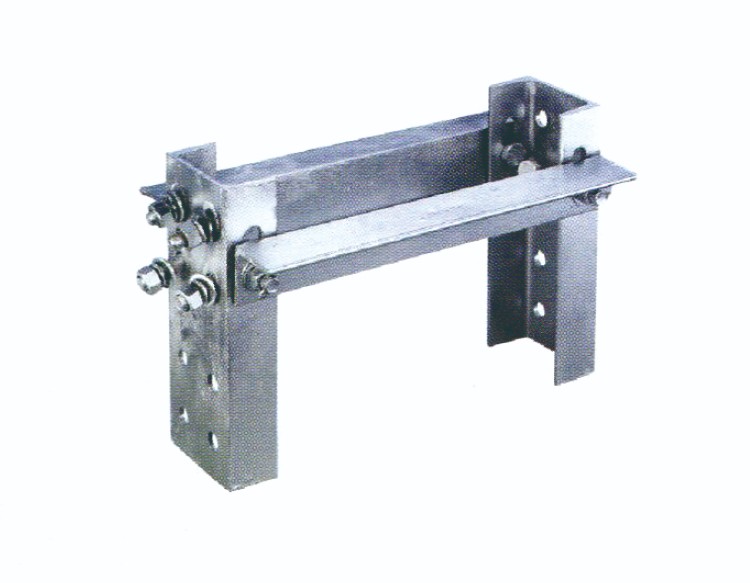

1.Material and Construction:
1)The ZCJ support bracket is typically made of iron.
2)It serves as a structural component to hold electrical equipment or components in place.
2.Application:
1)The ZCJ bracket is commonly used in both overhead line (OHL) and substation applications.
2)It provides support for various components, such as insulators, conductors, and other hardware.
3.Design and Functionality:
1)The ZCJ support bracket has a yoke plate design.
2)It offers stability and secure attachment for the supported equipment.
3)The bracket can be used for both bare conductors and lightning conductors (ground wires).
