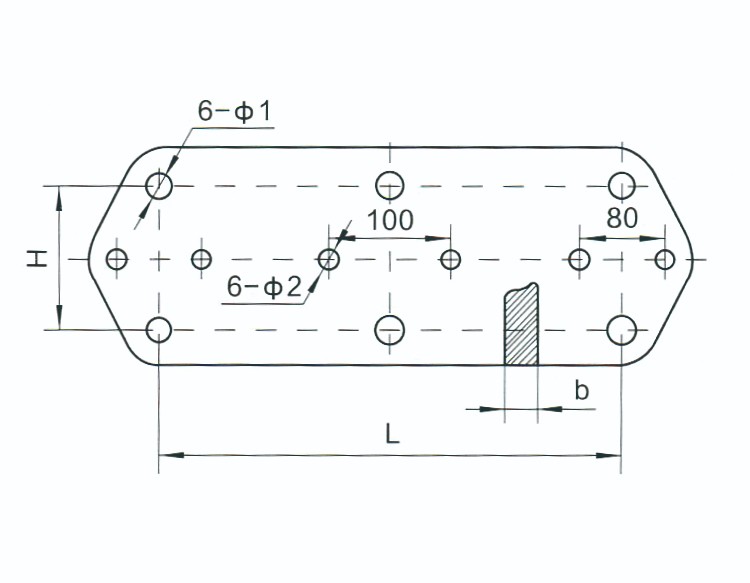

| Catalog No. | Dimensions(mm) | Failure Load(KN) | Weight(KG) | ||||||
| H | L | b | Φ1 | Φ2 | |||||
| LJ-2540 | 120 | 400 | 16 | 24 | 18 | 250 | 11.1 | ||
| LJ-3034 | 120 | 400 | 18 | 26 | 18 | 400 | 13.57 | ||

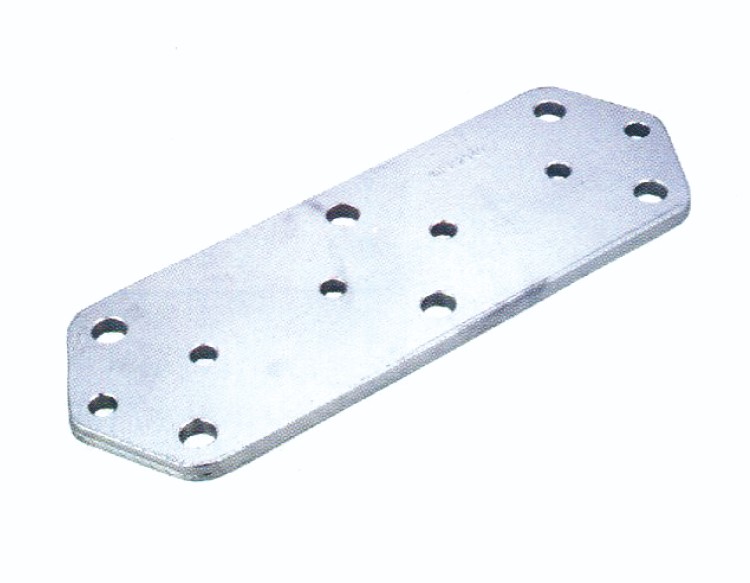

Yoke Plates offer several advantages in electrical applications:
1.Conductor Bundling: Yoke Plates allow you to bundle two conductors together, improving organization and reducing clutter.
2.Versatility: They can be used in both suspension setups (with a single string of insulators) and dead-end configurations (with two strings of insulators and one dead-end clamp).
3.Material Options: Yoke Plates come in galvanized ductile iron or galvanized steel, providing durability and corrosion resistance.
4.Customization: Available in various sizes, hole spacings, and ultimate strengths, allowing you to choose the right fit for your specific application.
5.Corona Ring Mounting: Some yoke plates have provisions for corona rings, which enhance electrical performance.
