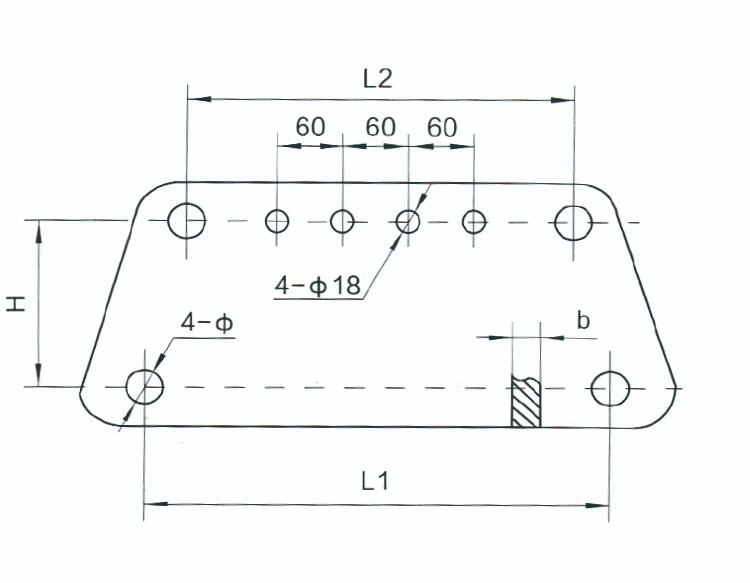

| Catalog No. | Dimensions(mm) | Failure Load(KN) | Weight(KG) | ||||||
| H | L1 | L2 | b | Φ | |||||
| LT-10-80/400/340 | 80 | 400 | 340 | 16 | 20 | 100 | 6.1 | ||
| LT-64-120/500/450 | 120 | 500 | 450 | 28 | 33 | 640 | 23.5 | ||
| LT-64-120/600/450 | 120 | 600 | 450 | 28 | 33 | 640 | 26 | ||
Here are the key details:
1.Function: Keystone yoke plates serve as string hardware for coupling the electrical clevis and the insulators or socket tongue on the transmission line.
2.Installation: During installation, the insulators connected to the cross arm are on one side of the yoke plate, while the conductor termination is on the other side.
3.Material: These plates are typically made from galvanized steel for durability and corrosion resistance.
4.Applications:
1)Used in power transmission and distribution systems.
2)Facilitate secure attachment of conductors and insulators.
3)Help maintain proper alignment and tension in the overhead line.
