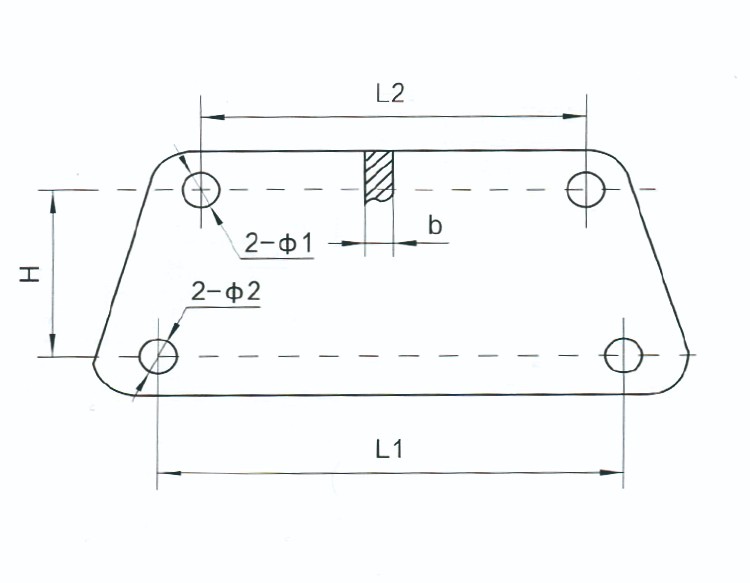

| Catalog No. | Dimensions(mm) | Failure Load(KN) | Weight(KG) | |||||||
| H | L1 | L2 | b | Φ1 | Φ2 | |||||
| LS-1212 | 65 | 400 | 120 | 16 | 20 | 18 | 120 | 5 | ||
| LS-1221 | 65 | 400 | 210 | 16 | 20 | 18 | 120 | 5.35 | ||
| LS-1225 | 65 | 400 | 250 | 16 | 20 | 18 | 120 | 5.54 | ||
| LS-1229 | 65 | 400 | 290 | 16 | 20 | 18 | 120 | 5.73 | ||
| LS-1233 | 65 | 400 | 330 | 16 | 20 | 18 | 120 | 5.92 | ||
| LS-1237 | 65 | 400 | 370 | 16 | 20 | 18 | 120 | 6.11 | ||
| LS-1255 | 65 | 400 | 550 | 16 | 20 | 18 | 120 | 8.66 | ||
| L-305045 | 130 | 450 | 500 | 32 | 39 | 39 | 300 | 29.59 | ||
| LE-425550 | 150 | 500 | 550 | 20 | 26 | 26 | 420 | 17.56 | ||
| LE-845550 | 150 | 500 | 550 | 32 | 39 | 39 | 840 | 32.12 | ||
Here are the key details:

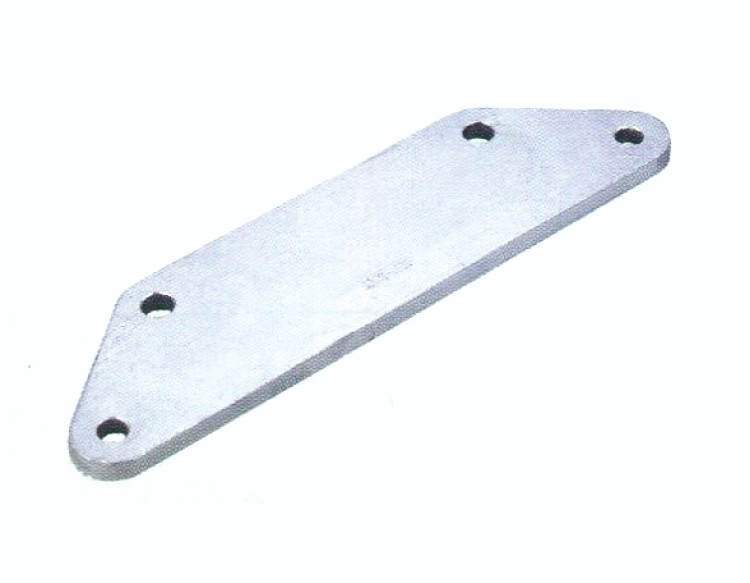

1.Function: Keystone yoke plates serve as string hardware for coupling the electrical clevis and the insulators or socket tongue on the transmission line.
2.Installation: During installation, the insulators connected to the cross arm are on one side of the yoke plate, while the conductor termination is on the other side.
3.Material: These plates are typically made from galvanized steel for durability and corrosion resistance.
4.Applications:
1)Used in power transmission and distribution systems.
2)Facilitate secure attachment of conductors and insulators.
3)Help maintain proper alignment and tension in the overhead line.
