Adjuster Plates-PT Supplier

Catalog No.	Dimensions(mm)							Failure Load(KN)	Weight(KG)
Catalog No.	R1	R2	R3	R4	R5	Φ	b	Failure Load(KN)	Weight(KG)
PT-7	16	18	45	45	60	18	16	70	2
PT-10	16	20	50	50	65	20	18	100	2.9
PT-12	16	24	60	60	75	24	22	120	5.2
PT-16	18	26	65	65	80	26	24	160	7
PT-21	24	30	70	70	90	30	27	210	10.1
PT-25	30	34	80	80	100	33	30	250	12
PT-30	32	38	80	80	100	33	36	300	14
PT-50	38	40	160	160	80	45	42	500	24.6
PT-07240-375	16	18	45	45	60	18	16	70	2.2
PT-10265-415	16	20	50	50	65	20	18	100	3.2
PT-12330-510	16	24	60	60	75	24	22	120	5.5
PT-16370-580	18	26	65	65	80	26	24	160	7.5
PT-21370-580	24	30	70	70	90	30	27	210	8.4
PT-25420-660	30	34	80	80	100	33	30	250	12.4
PT-32420-600	32	38	80	80	100	33	36	320	15.2

Here are the key details:

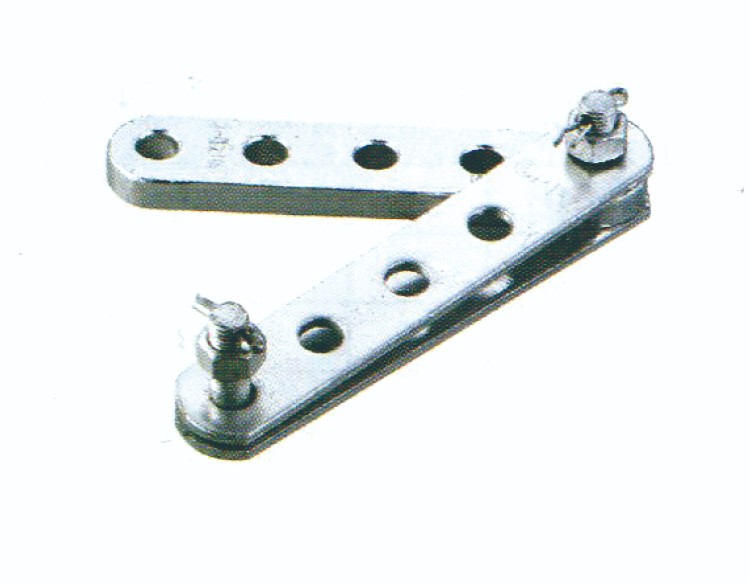

1.Design: PT Adjuster Plates come in different sizes and configurations, but they generally feature a sturdy design with holes for attachment.

2.Function: These plates allow for precise adjustment and leveling of machinery, structures, or equipment.

3.Applications:

1)Line Array Fittings: PT plates are commonly used in line array systems for adjusting speaker angles and alignment.

2)Power Transformer Accessories: They play a role in power transformer installations and maintenance.

3)Power Plant Applications: PT plates find use in power plants for aligning components and ensuring proper functionality.

4.Specified Failure Load: Each PT plate has a specified load capacity (measured in kilonewtons, kN) based on its size and material.

5.Material Options: PT plates can be made from various materials, including steel and stainless steel, depending on the application and environmental conditions.
