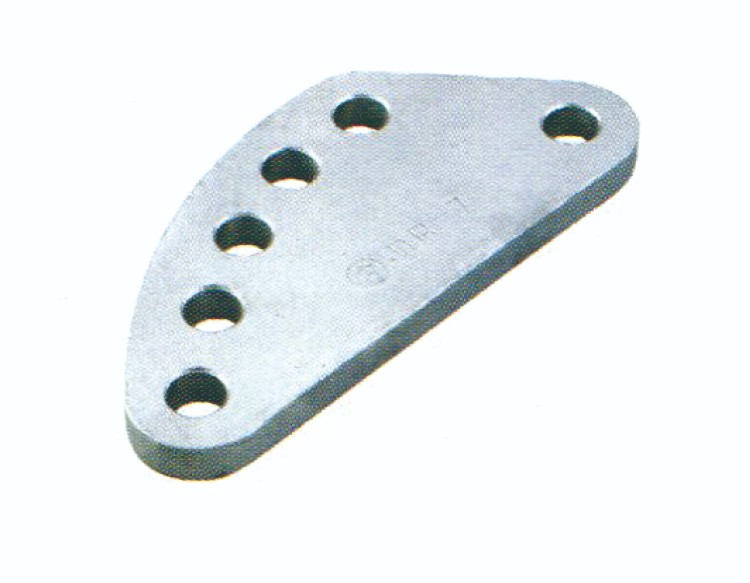

Adjuster Plates-DB Supplier

Catalog No.	Dimensions(mm)							Failure Load(KN)	Weight(KG)

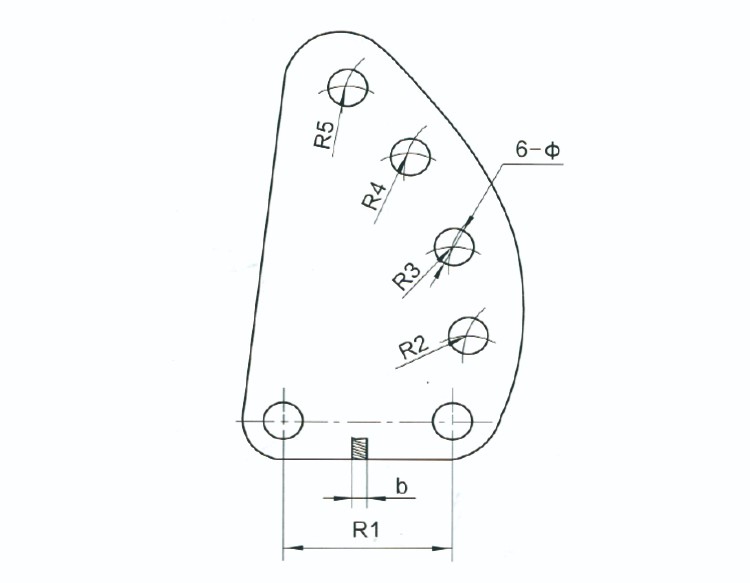

Catalog No.	R1	R2	R3	R4	R5	Φ	b	Failure Load(KN)	Weight(KG)
DB-7	70	95	120	145	170	18	16	70	1.7
DB-10	80	110	140	170	200	20	16	100	2.7
DB-12	100	135	170	205	210	24	16	120	3.2
DB-16	110	125	140	155	170	26	18	160	4.1
DB-1	120	135	150	165	180	26	20	210	7.4
DB-25	120	140	160	165	200	33	30	250	11.5
DB-30	120	140	160	180	200	39	32	300	12.5
DB-0770-170	70	95	120	145	170	18	16	70	1.7
DB-1080-200	80	110	140	170	200	20	16	100	2.7
DB-12100-240	100	135	170	205	240	24	16	120	3.2
DB-16110-170	110	125	140	155	170	26	18	160	4.1
DB-21120-180	120	135	150	165	180	30	26	210	7.4
DB-25120-180	120	140	160	165	200	33	30	250	11.5
DB-32120-200	120	140	160	180	200	39	32	320	12.5

Here are the key features:

1.Adjustment Capability: The screw shaft in these plates can rotate and tilt slightly, allowing fine adjustments. They serve as adjustment bolts for various machinery applications.

2.Affordable Standard Option: The DA type supports screw diameters M16 and M20, while the B type supports screw diameter M12. These plates are recommended for large quantities, such as conveyor legs.

3.Material Options:

1)DA: Made from 1018 carbon steel (SS400 equivalent) with trivalent chromate surface treatment.

2)DB: Available in both carbon steel and stainless steel (304), with appropriate surface treatments for corrosion resistance.
