| Catalog No. | Dimensions(mm) | Failure Load(KN) | Weight(KG) | ||||||

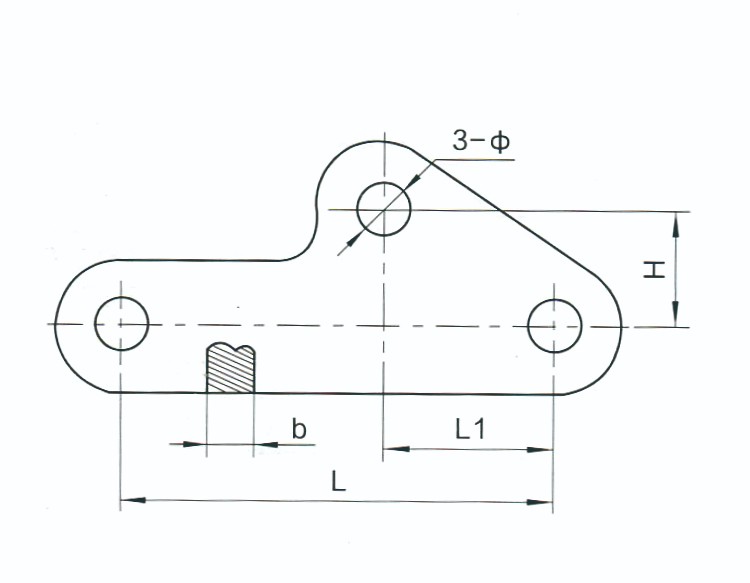

| L | L1 | H | Φ | b | |||||
| QY-7 | 100 | 38 | 22 | 18 | 16 | 70 | 0.8 | ||
| QY-10 | 120 | 42 | 25 | 20 | 16 | 100 | 1.1 | ||
| QY-12 | 150 | 52 | 30 | 24 | 16 | 120 | 1.9 | ||
| QY-16 | 180 | 55 | 35 | 26 | 18 | 160 | 2.6 | ||
| QY-21 | 200 | 75 | 45 | 30 | 26 | 210 | 4.7 | ||
| QY-25 | 220 | 95 | 70 | 33 | 22 | 250 | 6.2 | ||
| QY-30 | 240 | 95 | 80 | 39 | 32 | 300 | 7.3 | ||
| PQ-07100 | 100 | 38 | 22 | 18 | 16 | 70 | 0.8 | ||
| PQ-10120 | 120 | 42 | 25 | 20 | 16 | 100 | 1 | ||
| PQ-12150 | 150 | 52 | 30 | 24 | 16 | 120 | 1.5 | ||
| PQ-16180 | 180 | 52 | 30 | 24 | 16 | 120 | 2.1 | ||
| PQ-21200 | 200 | 75 | 45 | 26 | 20 | 210 | 3.6 | ||
| PQ-25220 | 220 | 85 | 50 | 30 | 24 | 250 | 6.2 | ||
| PQ-32240 | 240 | 95 | 57 | 33 | 28 | 320 | 7.3 | ||

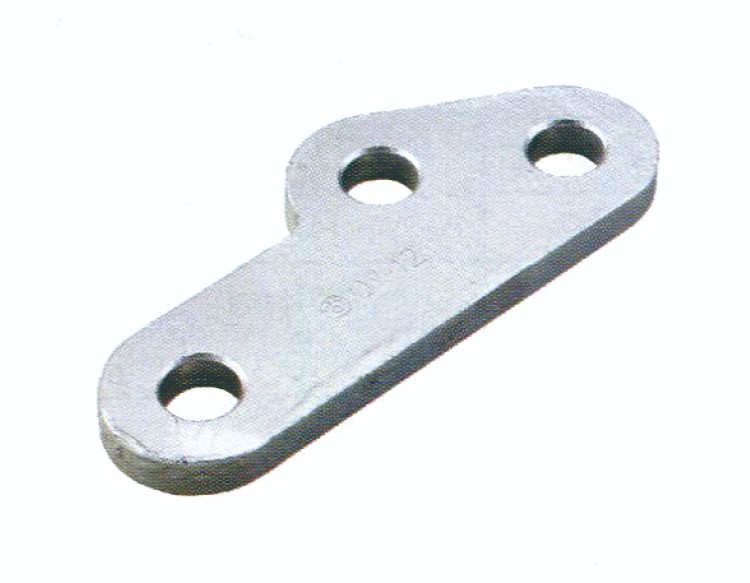

1.Design: Patented design for simplicity, strength, and safety.
2.Rigging: Requires only three shackles to rig the bridle.
3.Advantages:
1)Eliminates extra weight, cost, and time compared to older-style flounder plates.
2)Cast from nickel-chrome steel for maximum corrosion resistance.
4.Application: Suitable for towing operations.
