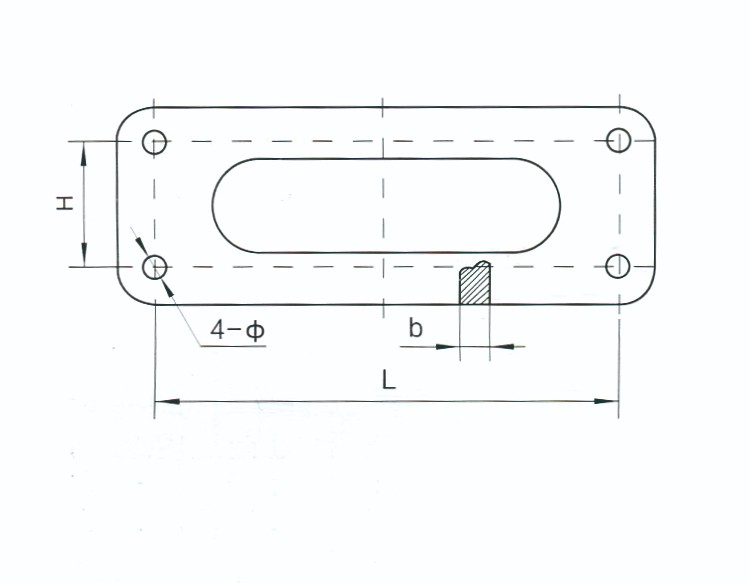

| Catalog No. | Dimensions(mm) | Failure Load(KN) | Weight(KG) | ||||||
| H | L | b | Φ | ||||||
| LF-2140 | 70 | 400 | 16 | 20 | 210 | 5.5 | |||
| LF-2540 | 110 | 400 | 16 | 24 | 250 | 11 | |||
| LF-3040 | 120 | 400 | 18 | 26 | 300 | 11.2 | |||
| LF-4055 | 190 | 550 | 26 | 30 | 400 | 26.6 | |||

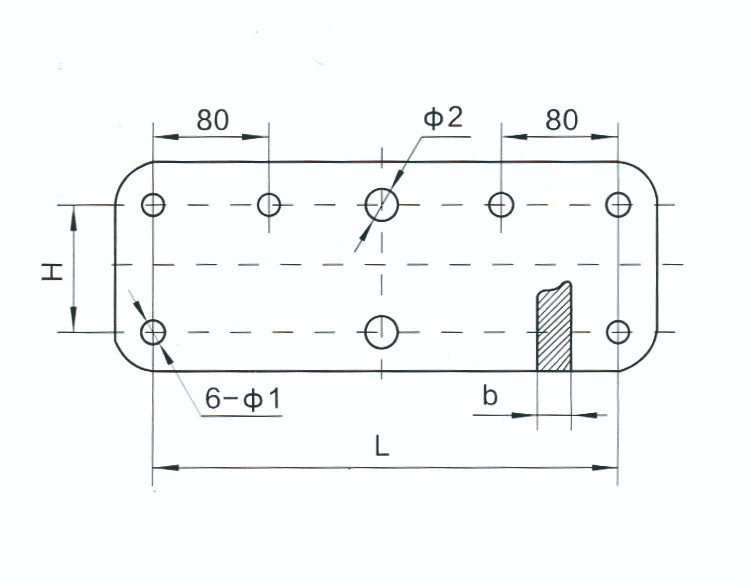

| Catalog No. | Dimensions(mm) | Failure Load(KN) | Weight(KG) | ||||||
| H | L | b | Φ1 | Φ2 | |||||
| LJ-1040 | 70 | 400 | 16 | 18 | 20 | 100 | 6.5 | ||
| LJ-1240 | 70 | 400 | 16 | 18 | 24 | 120 | 6.45 | ||
| LJ-1640 | 100 | 400 | 18 | 20 | 26 | 160 | 9.54 | ||
Differences:

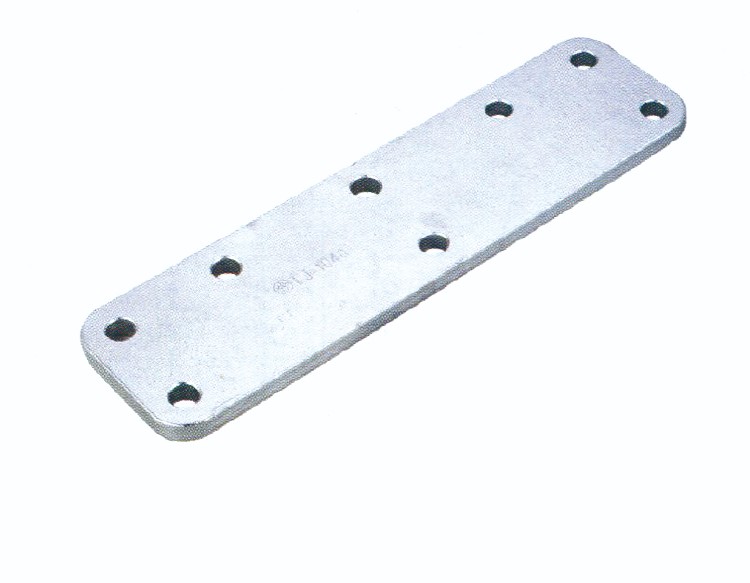

1.LJ Yoke Plate (Link Fitting):
1)Material: LJ Yoke Plates are made of hot-dip galvanized steel.
2)Usage: They are used to connect insulators and fittings on ultra-voltage transmission lines.
3)Applications:
(1)Assembling suspension insulators into strings.
(2)Connecting one or several strings of insulators and suspending them on pole arms or perches.
(3)Linking suspension clamps, dead-end clamps, and stay wires to perches.

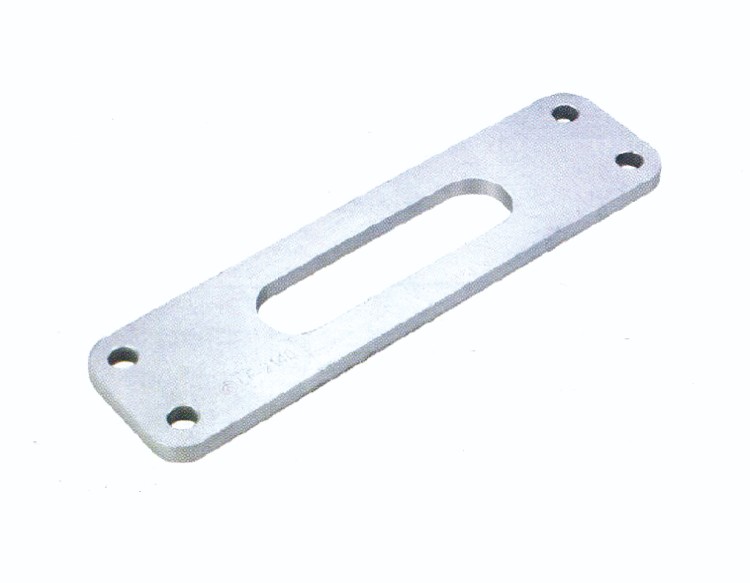

2.LF Yoke Plate (Conductor Connection):
1)Material: LF Yoke Plates are also made of hot-dip galvanized steel.
2)Meaning of Letters and Numbers:
(1)L: Yoke plate.
(2)F: Square shape.
(3)Two Figures Ahead: Marker of failure load.
(4)Two Figures Behind: Distance between holes (in centimeters).
