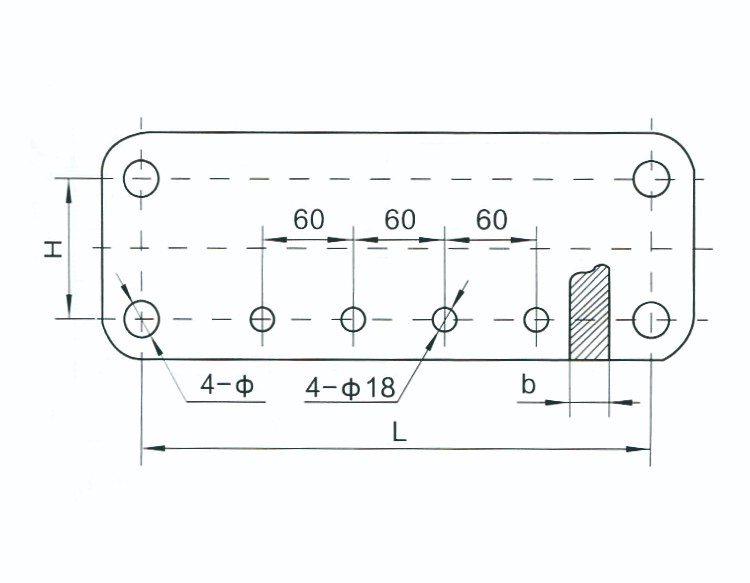

| Catalog No. | Dimensions(mm) | Failure Load(KN) | Weight(KG) | |||||
| H | L | b | Φ | |||||
| LF-21-110/400 | 110 | 400 | 16 | 20 | 210 | 8.9 | ||
| LF-21-120/450 | 120 | 450 | 16 | 20 | 210 | 10.5 | ||
| LF-21-120/500 | 120 | 500 | 16 | 20 | 210 | 12.2 | ||
| LF-21-120/600 | 120 | 600 | 16 | 20 | 210 | 14.2 | ||
| LF-25-120/400 | 120 | 400 | 16 | 24 | 250 | 10 | ||
| LF-25-120/450 | 120 | 450 | 16 | 24 | 250 | 11.5 | ||
| LF-25-120/500 | 120 | 500 | 16 | 24 | 250 | 12.3 | ||
| LF-25-120/600 | 120 | 600 | 16 | 24 | 250 | 14.5 | ||
| LF-32-120/400 | 120 | 400 | 18 | 26 | 160 | 11.6 | ||
| LF-32-120/500 | 120 | 500 | 18 | 26 | 320 | 14.2 | ||
| LF-32-120/600 | 120 | 600 | 18 | 26 | 320 | 16.7 | ||
| LF-42-120/500 | 120 | 500 | 20 | 26 | 420 | 15.8 | ||
| LF-42-120/600 | 120 | 600 | 20 | 26 | 420 | 18.6 | ||
| LF-64-120/450 | 120 | 450 | 28 | 33 | 640 | 22 | ||
Here are the key details:
1.Application: Connects insulator strings and fittings on ultra-voltage transmission lines.
2.Material: Made from high-quality galvanized steel for durability and corrosion resistance.
3.Function: Provides secure attachment points for insulators and other hardware.
4.Usage: Used in conjunction with insulators to maintain line integrity.
