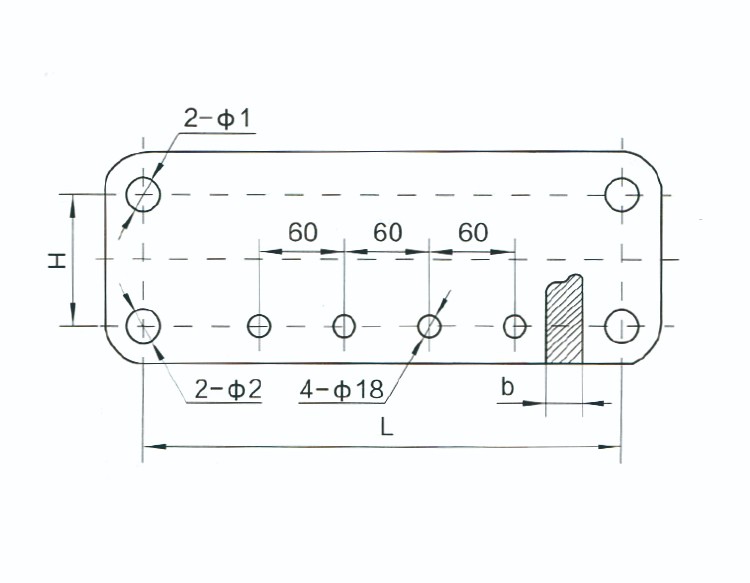

| Catalog No. | Dimensions(mm) | Failure Load(KN) | Weight(KG) | ||||||
| H | L | b | Φ1 | Φ2 | |||||
| LJ-3045A | 110 | 450 | 18 | 26 | 26 | 300 | 12 | ||
| LJ-4045A | 110 | 450 | 22 | 32 | 30 | 400 | 17 | ||
| LJ-6045A | 120 | 450 | 32 | 39 | 39 | 600 | 28 | ||
| Catalog No. | Dimensions(mm) | Failure Load(KN) | Weight(KG) | ||||||
| H | L | b | Φ1 | Φ2 | |||||
| LXV-10400/2 | 100 | 400 | 16 | 20 | 20 | 100 | 8.1 | ||
| LXV-10500/2 | 100 | 500 | 16 | 20 | 20 | 100 | 8.3 | ||
| LXV-10600/2 | 100 | 600 | 16 | 20 | 20 | 100 | 8.6 | ||
| LXV-12400/2 | 100 | 400 | 16 | 24 | 20 | 120 | 8.9 | ||
| LXV-12500/2 | 100 | 500 | 16 | 24 | 20 | 120 | 10.9 | ||
| LXV-12600/2 | 100 | 600 | 16 | 24 | 20 | 120 | 12.9 | ||
| LXV-16400/2 | 120 | 400 | 18 | 26 | 20 | 160 | 11.6 | ||
| LXV-16500/2 | 120 | 500 | 18 | 26 | 20 | 160 | 14.2 | ||
| LXV-16600/2 | 120 | 600 | 18 | 26 | 20 | 160 | 16.8 | ||
Difference:
1.LJ Yoke Plate:
1)Application: Used for connecting insulator strings in overhead transmission lines.
2)Material: Typically made from corrosion-resistant, high-strength metals like aluminum alloy or hot-dip galvanized steel.
3)Function: Assembles plate fittings to connect insulator strings.
4)Features: Offers superior mechanical strength, durability, and corrosion resistance.
2.LXV Yoke Plate:
1)Application: Also used for connecting insulator strings in overhead transmission lines.
2)Material: Made of galvanized steel (stainless steel and hot-dip galvanized steel).
3)Function: Connects multiple insulator strings or serves as a whole plate-shaped connector.
4)Advantages: Long-lasting durability and excellent mechanical performance.
