| Catalog No. | Dimensions(mm) | Failure Load(KN) | Weight(KG) | |||||||

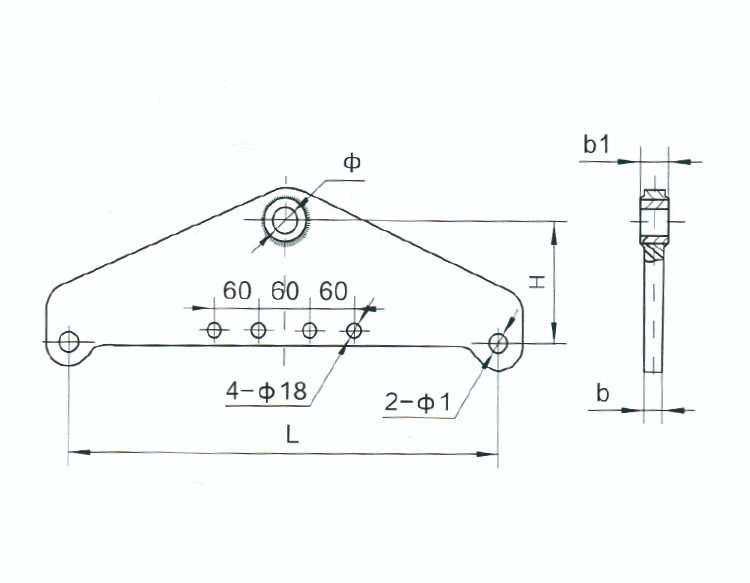

| H | L | b1 | b | Φ | Φ1 | |||||
| L-2545X | 150 | 450 | 30 | 22 | 33 | 26 | 250 | 8.5 | ||
| L-3045G | 150 | 450 | 32 | 22 | 39 | 26 | 300 | 8.8 | ||
Here are some details:
1.Material: They are typically made of ductile iron or steel.

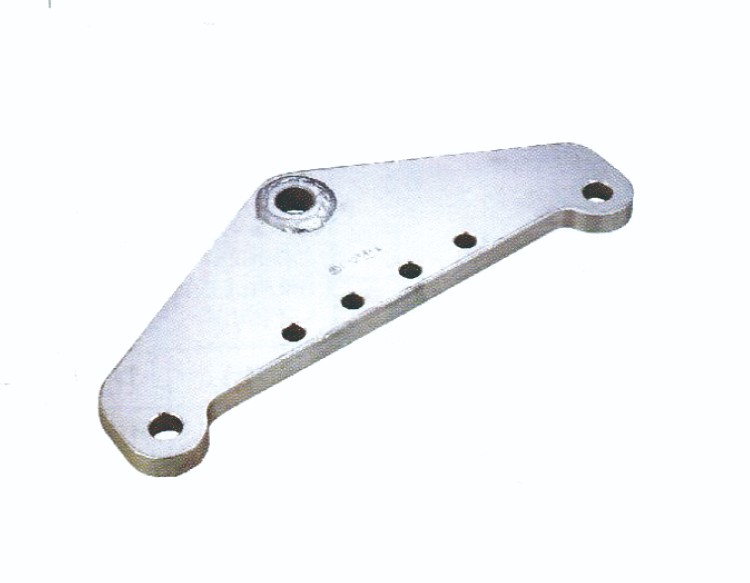

2.Design: The standard triangular plate has 3 holes. However, triangular and rectangular plates are available with various hole spacing and thickness to suit either tension or suspension applications.
3.Applications: They are used in transmission lines to keep the distance of the bundled conductors at insulator strings and joint the eye-ended parts by compression lugs.
