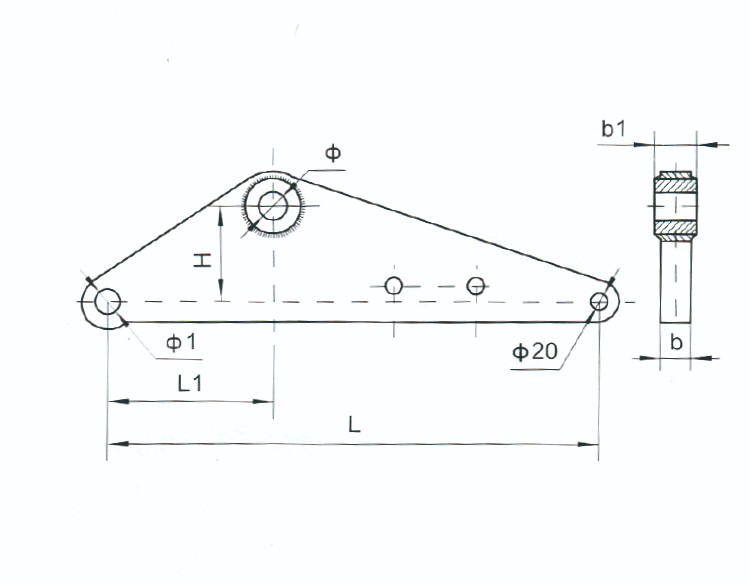

| Catalog No. | Dimensions(mm) | Failure Load(KN) | Weight(KG) | ||||||||
| H | L | L1 | b1 | b | Φ | Φ1 | |||||
| L-2060 | 120 | 600 | 200 | 26 | 18 | 30 | 24 | 200 | 11.8 | ||
| L-3060 | 140 | 600 | 200 | 32 | 18 | 39 | 30 | 300 | 16.7 | ||
Here are some details:
1.Material: They are typically made of ductile iron or steel.
2.Design: The standard triangular plate has 3 holes. However, triangular and rectangular plates are available with various hole spacing and thickness to suit either tension or suspension applications.
3.Applications: They are used in transmission lines to keep the distance of the bundled conductors at insulator strings and joint the eye-ended parts by compression lugs.
