Custom Triangle Yoke Plates

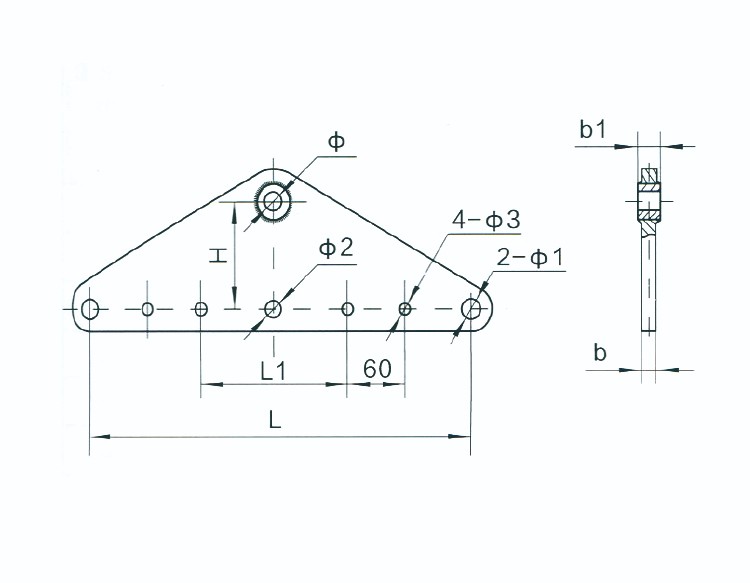

Catalog No.	Dimensions(mm)									Failure Load(KN)	Weight(KG)
Catalog No.	H	L	L1	b1	b	Φ	Φ1	Φ2	Φ3	Failure Load(KN)	Weight(KG)
L-1245	100	450	190	16	16	24	20	18	18	120	5
L-1650S	130	500	240	18	18	26	20	18	18	160	8.5
L-2-1645	100	450	70	22	22	26	20	18	18	160	8.4
L-1645G	130	450	130	18	18	26	20	20	18	160	7.8
L-2045X	130	450	190	26	26	30	20	20	18	200	7.4
L-2045A	130	450	190	26	26	30	20	18	18	200	8
L-2145	100	450	190	26	26	30	20	18	27	210	7.8
L-2150S	140	500	240	20	20	26	20	20	18	210	10.7
L-4045G	175	450	60	38	38	45	30		18	400	13.7

Here are some details:

1.Material: They are typically made of ductile iron or steel.

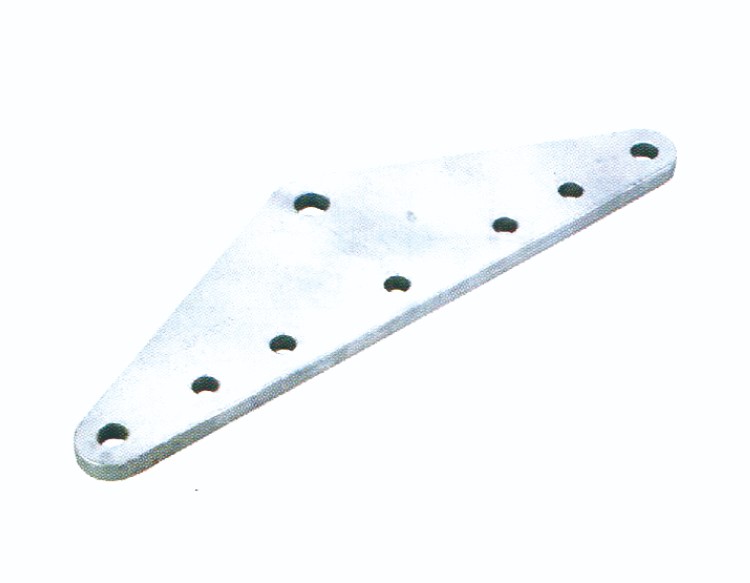

2.Design: The standard triangular plate has 3 holes. However, triangular and rectangular plates are available with various hole spacing and thickness to suit either tension or suspension applications.

3.Applications: They are used in transmission lines to keep the distance of the bundled conductors at insulator strings and joint the eye-ended parts by compression lugs.
