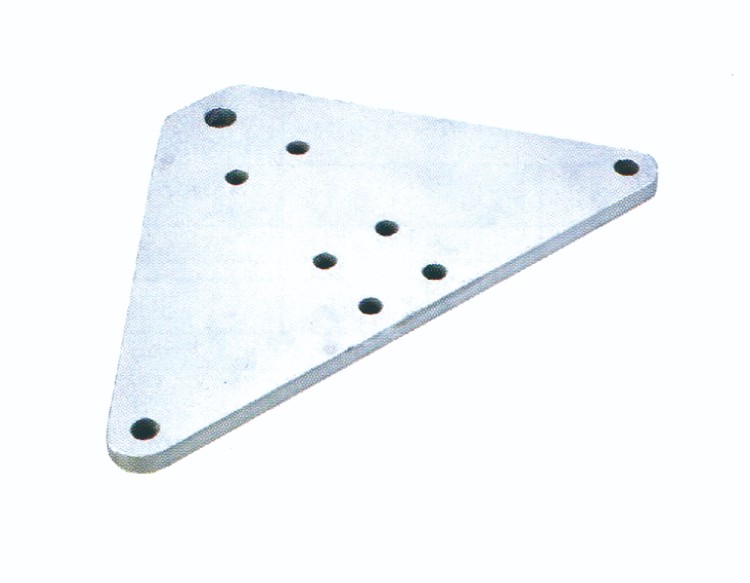

Triangle Yoke Plates Factory China

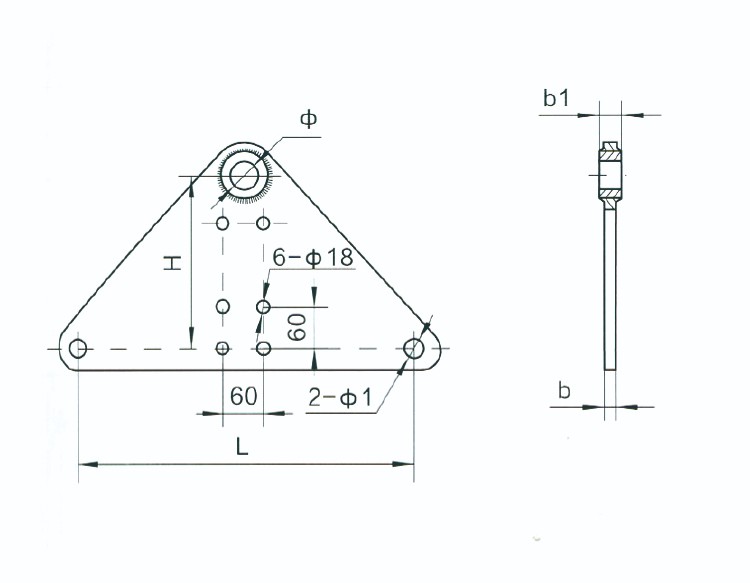

Catalog No.	Dimensions(mm)						Failure Load(KN)	Weight(KG)
Catalog No.	H	L	b1	b	Φ	Φ1	Failure Load(KN)	Weight(KG)
L-1045	250	450	16	16	20	20	100	15
LT-1245	250	450	16	16	24	20	120	11.3
L-1645	250	450	26	16	30	20	160	16
L-2045	250	450	24	16	30	20	200	19
L-3045	250	450	32	18	39	26	300	11
L-3050	250	500	32	18	39	26	300	10
L-1645G	250	450	18	18	20	20	160	14.9
L-2145G	250	450	26	16	30	24	210	13.6
L-2150GN	250	500	20	20	26	26	210	21
L-3245GN	250	450	28	18	33	26	320	17.6
L-4250G	250	500	32	20	39	26	420	22
L-5045B	200	450	40	30	45	30	500	17.4

Here are some details:

1.Material: They are typically made of ductile iron or steel.

2.Design: The standard triangular plate has 3 holes. However, triangular and rectangular plates are available with various hole spacing and thickness to suit either tension or suspension applications.

3.Applications: They are used in transmission lines to keep the distance of the bundled conductors at insulator strings and joint the eye-ended parts by compression lugs.
