Triangle Yoke Plates Supplier

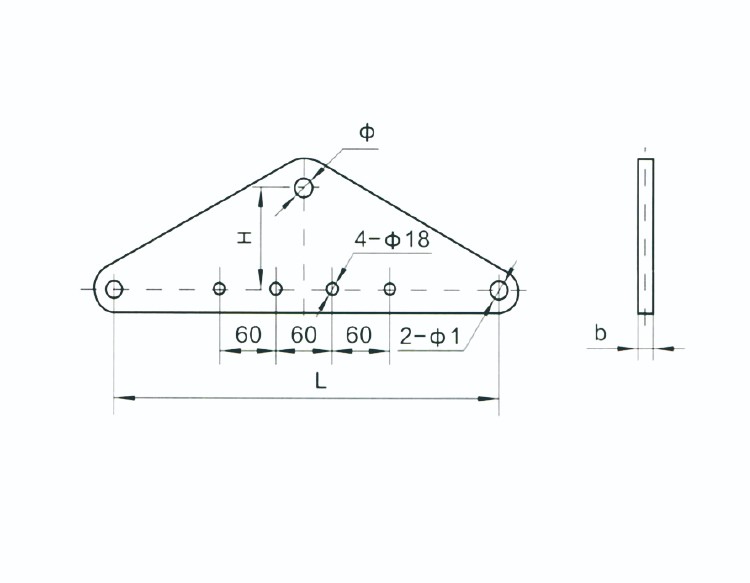

Catalog No.	Dimensions(mm)					Failure Load(KN)	Weight(KG)
Catalog No.	H	L	b	Φ	Φ1	Failure Load(KN)	Weight(KG)
L-07-70/400	70	400	16	18	18	70	4.5
L-07-70/500	70	500	16	18	18	70	6
L-07-70/600	70	600	16	18	18	70	7.2
L-10-70/400	70	400	16	20	18	100	4.5
L-10-70/500	70	500	16	20	18	100	5.3
L-10-100/450	100	450	16	20	18	100	5.8
L-10-100/500	100	500	16	20	18	100	6.5
L-10-100/600	100	600	16	20	18	100	7.7
L-12-70/400	70	400	16	24	18	120	4.7
L-12-100/450	100	450	16	24	18	120	5.8
L-12-100/500	100	500	16	24	18	120	6.2
L-12-100/600	100	600	16	24	18	120	7.7
L-16-100/400	100	400	18	26	20	160	5.9
L-16-100/450	100	450	18	26	20	160	6.8
L-16-100/500	100	500	18	26	20	160	7.4
L-16-100/600	100	600	18	26	20	160	8.9
LXV-10400/1	100	400	16	20	20	100	5.1
LXV-12400/1	100	400	16	24	24	120	5.8
LXV-16400/1	120	400	18	26	26	160	7.5

Here are some details:

1.Material: They are typically made of ductile iron or steel.

2.Design: The standard triangular plate has 3 holes. However, triangular and rectangular plates are available with various hole spacing and thickness to suit either tension or suspension applications.

3.Applications: They are used in transmission lines to keep the distance of the bundled conductors at insulator strings and joint the eye-ended parts by compression lugs.
