Triangle Yoke Plates Manufacturer

Catalog No.	Dimensions(mm)						Failure Load(KN)	Weight(KG)

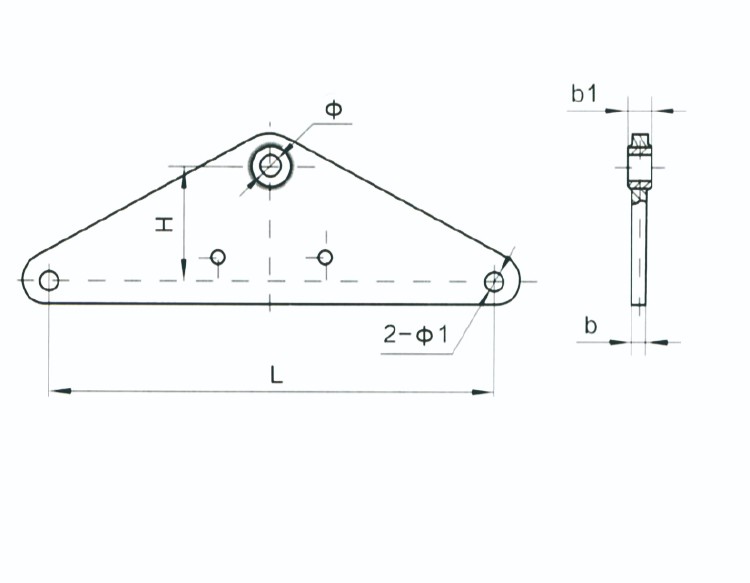

Catalog No.	H	L	b1	b	Φ	Φ1	Failure Load(KN)	Weight(KG)
L-1040	70	400	16	16	20	18	100	4.43
L-1240	70	400	16	16	24	18	120	4.66
L-1640	100	400	18	18	26	20	160	5.8
L-2140	100	400	26	16	30	20	210	6.9
L-2052	100	520	26	16	30	26	200	8
L-2055	200	550	26	16	30	24	200	11.8
L-2540	110	400	30	16	33	24	250	9
L-3040	110	400	32	18	39	26	300	10
L-4255	250	550	38	24	45	30	420	24.4
L-5040	110	400	38	30	45	33	500	14.8
L-6045	200	450	42	32	51	39	600	25.5
L-6050	250	500	42	32	51	39	600	23.3

Here are some details:

1.Material: They are typically made of ductile iron or steel.

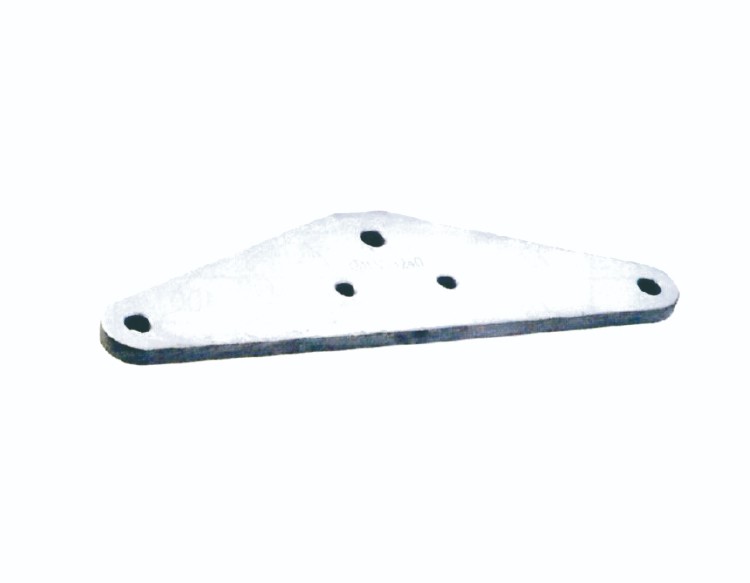

2.Design: The standard triangular plate has 3 holes. However, triangular and rectangular plates are available with various hole spacing and thickness to suit either tension or suspension applications.

3.Applications: They are used in transmission lines to keep the distance of the bundled conductors at insulator strings and joint the eye-ended parts by compression lugs.
