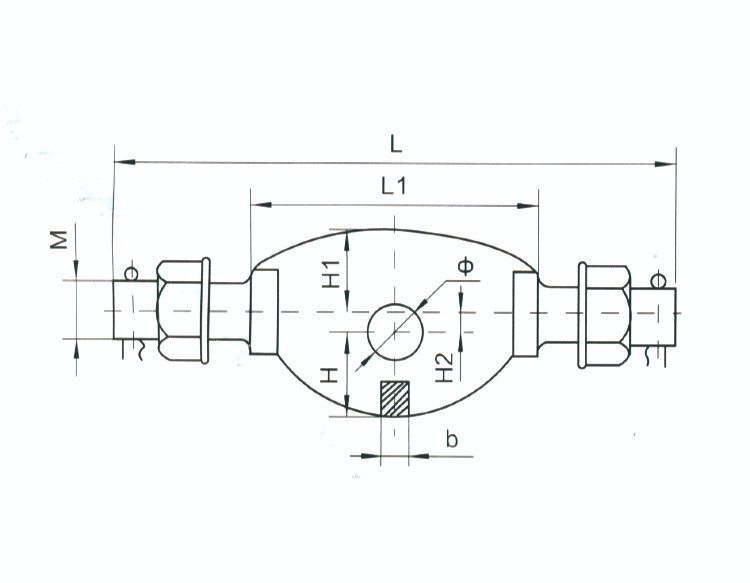

| Catalog No. | Dimensions(mm) | Failure Load(KN) | Weight(KG) | |||||||||
| b | Φ | H | H1 | H2 | M | L | L1 | |||||
| GD-12S | 16 | 24 | 30 | 30 | 12 | 22 | 230 | 112 | 120 | 1.7 | ||
| GD-21S | 20 | 26 | 40 | 35 | 12 | 24 | 250 | 112 | 210 | 2.1 | ||
| GD-32S | 28 | 33 | 40 | 36 | 12 | 30 | 258 | 112 | 320 | 3.6 | ||
| GD-42S | 32 | 39 | 45 | 36 | 12 | 36 | 278 | 130 | 420 | 4.2 | ||
| GD-50S | 32 | 39 | 48 | 50 | 12 | 36 | 278 | 112 | 500 | 4.6 | ||
| GD-12 | 16 | 24 | 30 | 35 | 12 | 22 | 250 | 112 | 120 | 1.35 | ||
| GD-21 | 18 | 26 | 35 | 35 | 12 | 24 | 250 | 112 | 210 | 1.8 | ||
| GD-30 | 30 | 33 | 46.5 | 35 | 12 | 30 | 264 | 112 | 300 | 3.3 | ||
| GD-50 | 34 | 44 | 50 | 40 | 12 | 36 | 264 | 112 | 500 | 6 | ||
| GD-60 | 42 | 50 | 50 | 46 | 16 | 42 | 290 | 112 | 600 | 6.5 | ||
Here are some details:
1.Twist Straps: Twist straps are flat metal connectors that provide a tension connection between two members and are designed to resist uplift loads. These connectors are easier and more economical to install than bolted straps. They feature a small bend section to reduce interference at the transition points between the two members. These versatile straps are available in many lengths to fit the specific application.
2.Twisted Strap Products: There are various products available that utilize twisted straps. For example, car tow dolly wheel net tire basket straps use twisted snap hooks. There are also ratchet tie down straps with twisted flat hooks, and polyester cargo winch straps with twisted snap hooks. These products are used for securing loads during transport.
