Clevise-TL-EB

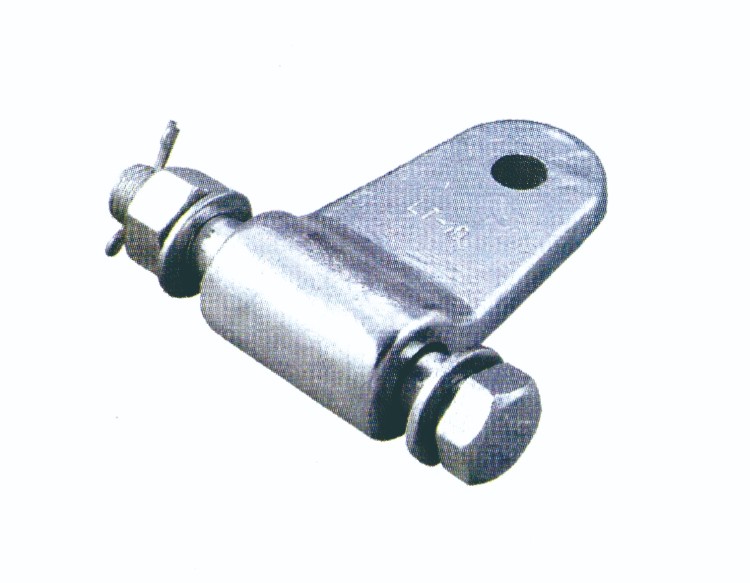

A clevis is a type of fastener that most often consists of a U-shaped piece with holes at each end and a clevis pin that passes through the holes. The design of a clevis allows for articulation or movement at the joint, making it an ideal component for applications where flexibility and adaptability are required.

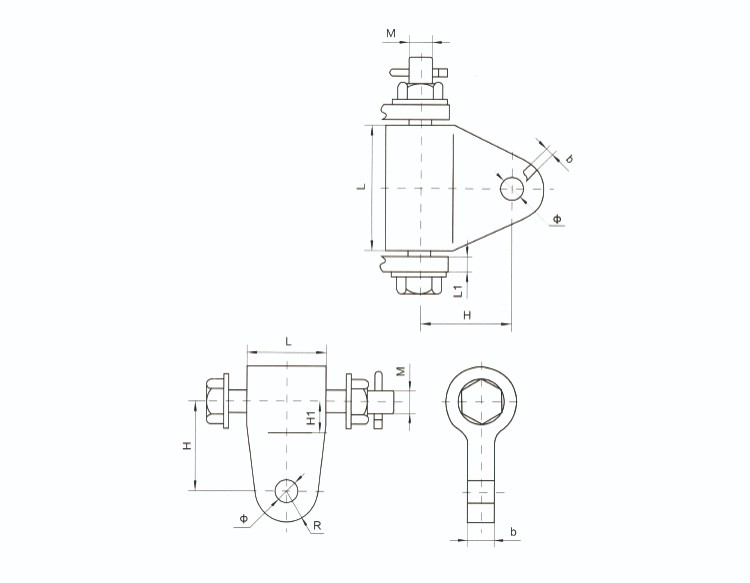

Catalog No.	Dimensions(mm)						Failure Load(KN)	Weight(KG)
Catalog No.	b	Φ	H	M	L	L1	Failure Load(KN)	Weight(KG)
TL-16	18	26	100	24	80	20	160	3.5
LT-30	32	39	100	36	80	25	300	6..8
EB-50D	34	39	125	36	116	25	500	13
EB-70	38	45	125	42	136	26	700	14.4
EB-70A	38	45	150	64	195	30	700	29.9
EB-70B	42	51	150	64	195	30	700	29.7
EB-70C	38	45	125	42	116	28	700	13.3

stable design Catalog No.	Dimensions(mm)							Failure Load(KN)	Weight(KG)
stable design Catalog No.	L	H	H1	Φ	R			Failure Load(KN)	Weight(KG)
EB-07/10-80	45	80	23	18	22	18	16	160	3.5
EB-10/12-100	60	100	46	20	24	22	16	300	6.8
EB-12/16-100	60	100	48	24	30	24	16	500	13
EB-16/21-100	80	100	48	26	32	24	18	700	14.4
EB-21/42-100	100	100	50	26	32	36	20	700	29.9
EB-25/42-100	100	100	50	30	36	36	24	700	29.7
EB-32/42-100	100	100	50	33	40	36	28	700	13.3

1.Consists:A clevis is a type of fastener that most often consists of a U-shaped piece with holes at each end and a clevis pin that passes through the holes.

2.Design:The design of a clevis allows for articulation or movement at the joint, making it an ideal component for applications where flexibility and adaptability are required.

3.Types:

1)clevis shackles

2)clevis brackets

3)clevis hangers

4)clevis rod ends
