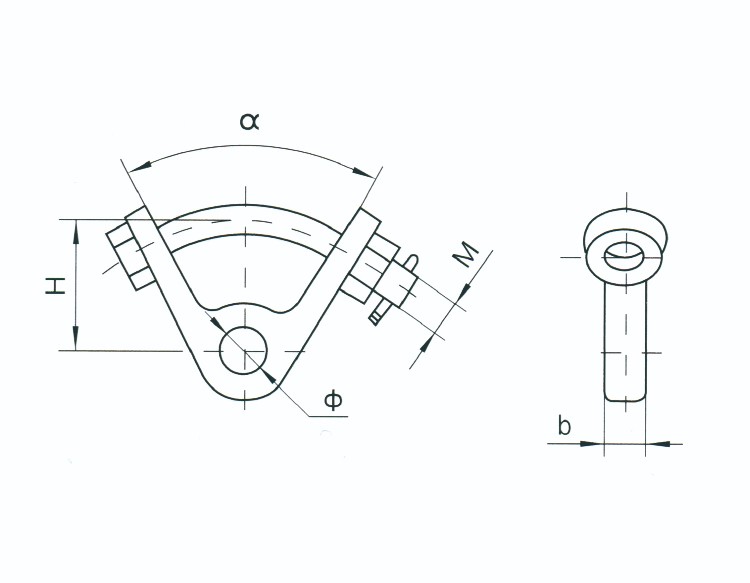

| Catalog No. | Dimensions(mm) | Failure Load(KN) | Weight(KG) | ||||||
| b | Φ | M | H | ∝ | |||||
| V-7 | 40 | 18 | 20 | 75 | 60° | 70 | 1.8 | ||
| VD-7 | 28 | 18 | 20 | 75 | 60° | 70 | 1.4 | ||
1.A clevis fastener is a two-piece system consisting of a clevis and a clevis pin. The clevis is a U-shaped piece that has holes at the end of the prongs to accept the clevis pin. The clevis pin is similar to a bolt, but is either partially threaded or unthreaded with a cross-hole for a split pin.
2.There are different types of clevises, such as:
1)Clevis hanger: A clevis hanger consists of one U-shaped clevis and a second V-shaped clevis with a hole in a flattened section at the base of the V, joined together with a bolt or pin. Clevis hangers are used as a pipe attachment providing vertical adjustment for pipes.
2)Twist clevis: A twist shackle provides a loop at a right angle to the axis of rotation. Older farming implements intended to be pulled by a team of draft animals often require a twist shackle to be hitched.
