| Catalog No. | Dimensions(mm) | Failure Load(KN) | Weight(KG) | ||||||

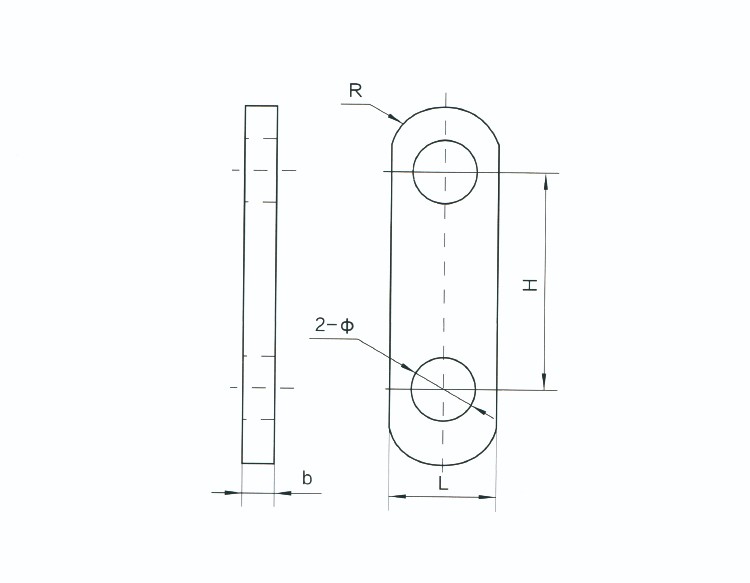

| Φ | H | b | L | R | |||||
| PD-7 | 18 | 70 | 16 | 40 | 22 | 70 | 0.57 | ||
| PD-10 | 20 | 80 | 16 | 45 | 24 | 100 | 0.86 | ||
| PD-12 | 24 | 100 | 16 | 50 | 26 | 120 | 1.05 | ||
| PD-16 | 26 | 100 | 18 | 60 | 32 | 160 | 1.25 | ||
| PD-20 | 30 | 120 | 26 | 72 | 36 | 200 | 2.5 | ||
| PD-0770 | 18 | 70 | 16 | 40 | 22 | 70 | 0.57 | ||
| PD-1080 | 20 | 80 | 16 | 45 | 24 | 100 | 0.86 | ||
| PD-12100 | 24 | 100 | 16 | 50 | 26 | 120 | 1.05 | ||

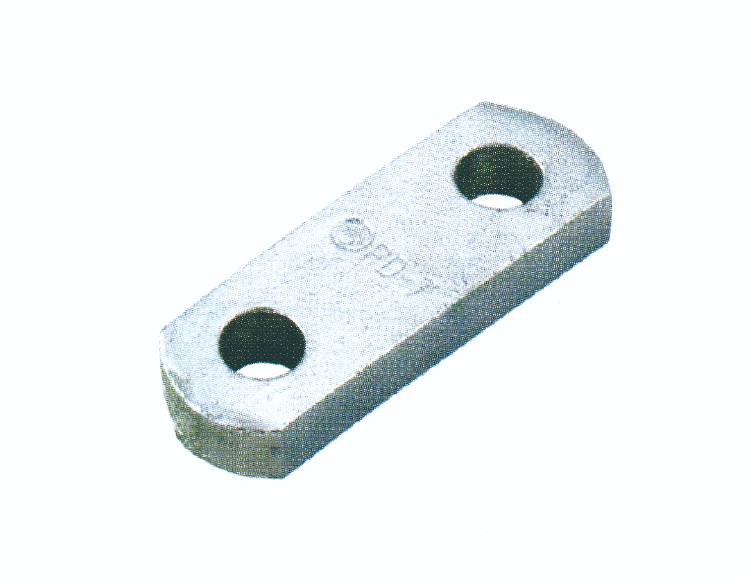

1.A clevis is a U-shaped piece that is used with a pin or bolt across the opening to connect parts together in a system. The "PD" in "Clevis-PD" refer to a specific model or type of clevis plate.
2.These types of clevises are often used in power fitting applications and are typically made from galvanized steel for durability and resistance to corrosion. They are part of the hardware used to secure and stabilize the components in a power transmission system.
