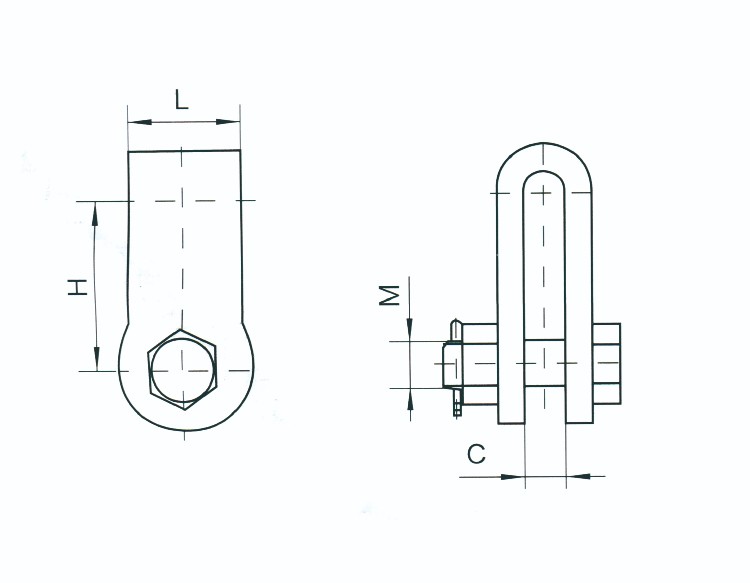

| Catalog No. | Dimensions(mm) | Failure Load(KN) | Weight(KG) | |||||
| C | M | H | L | |||||
| UB-6-1 | 20 | 16 | 65 | 30 | 70 | 0.82 | ||
| UB-9-1 | 20 | 18 | 65 | 40 | 100 | 1.2 | ||
| UB-7G | 20 | 16 | 65 | 40 | 70 | 0.8 | ||
1.A suspension clamp's primary function is to suspend the conductor at the tower while allowing it to move horizontally and vertically due to wind and other factors. The "UB" in "Clevis-UB" refers to the U-Bolt component of the suspension clamp, which is used to secure the clamp to the conductor.
2.The materials used in these clamps can vary, but common materials include high-temperature aluminum alloy for the clamp body and keeper, galvanized steel for the hardware, galvanized ductile iron for the socket and clevis, stainless steel for the cotter pin, and neoprene for the grommet.

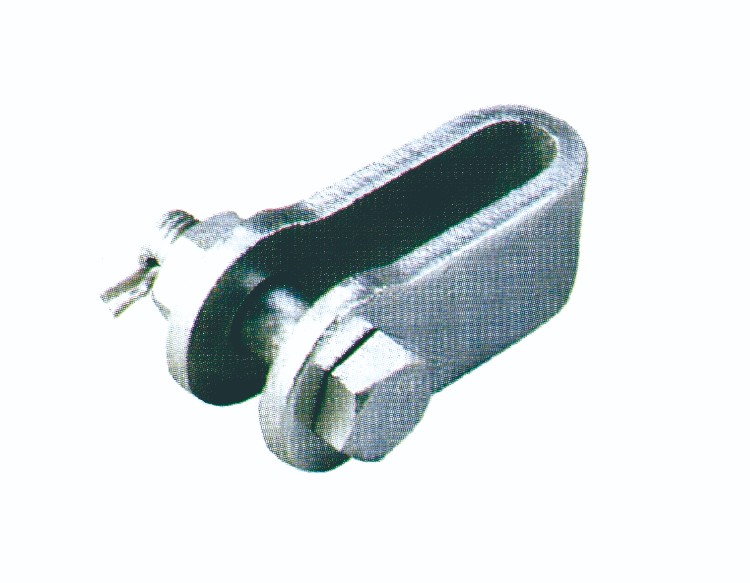

3.The clevis itself is often made of hot-dip galvanized steel for durability and resistance to corrosion. This makes it suitable for use in overhead power lines and other outdoor applications where it may be exposed to the elements.
