| Catalog No. | Dimensions(mm) | Failure Load(KN) | Weight(KG) | |||||
| C | M1 | M | H | |||||
| ZBS-07/10-80 | 20 | 18 | 16 | 80 | 70 | 2.5 | ||
| ZBS-10/12-100 | 20 | 22 | 18 | 100 | 100 | 3.6 | ||
| ZBS-12/16-100 | 20 | 24 | 22 | 100 | 120 | 3.9 | ||
| ZBS-16/21-100 | 22 | 24 | 24 | 100 | 160 | 4 | ||
| ZBS-21/42-100 | 24 | 36 | 24 | 100 | 210 | 8 | ||
| ZBS-25/42-100 | 28 | 36 | 27 | 100 | 250 | 8.5 | ||
| ZBS-32/42-100 | 32 | 36 | 30 | 100 | 320 | 9.2 | ||

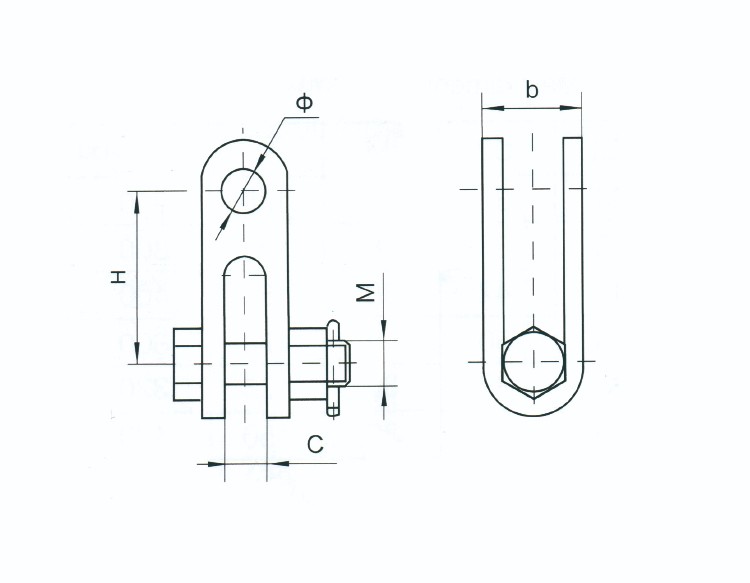

| Catalog No. | Dimensions(mm) | Failure Load(KN) | Weight(KG) | ||||||
| C | b | Φ | M | H | |||||
| ZBS-6-1 | 22 | 30 | 18 | 16 | 70 | 70 | 1.8 | ||
| ZBS-12-1 | 28 | 44 | 24 | 18 | 85 | 120 | 3.8 | ||
| ZBS-15-1 | 28 | 44 | 26 | 18 | 85 | 150 | 4.1 | ||
Here are some key details about it:
1.Function:
1)The ZBS clevis is primarily used to hang on a tower and connect other fittings for overhead transmission lines.
2)It links insulators, suspension clamps, and protection fittings to form a suspension or tension string set of fittings.
2.Specifications:
1)Available Models: From ZBS-07/10-80 to ZBS-32/42-100
2)Color: Silver
3)Grip Strength: High
4)Antivibration: High
5)Stability: High
