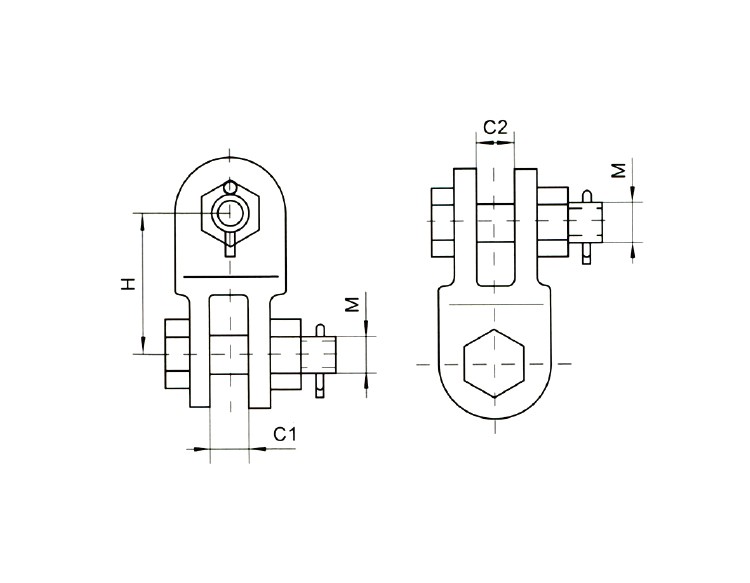

| Catalog No. | Dimensions(mm) | Failure Load(KN) | Weight(KG) | |||||
| C1 | C2 | M | H | |||||
| Z-7 | 20 | 20 | 16 | 80 | 70 | 0.56 | ||
| Z-10 | 20 | 20 | 18 | 80 | 100 | 0.87 | ||
| Z-12 | 24 | 24 | 22 | 100 | 120 | 1.16 | ||
| Z-16 | 26 | 26 | 24 | 100 | 160 | 2.38 | ||
| Z-21 | 30 | 30 | 27 | 120 | 210 | 3.85 | ||
| Z-25 | 33 | 33 | 30 | 120 | 250 | 5 | ||
| Z-0780 | 20 | 20 | 16 | 80 | 70 | 0.7 | ||
| Z-1080 | 20 | 20 | 18 | 80 | 100 | 0.9 | ||
| Z-12100 | 20 | 24 | 22 | 100 | 120 | 1.3 | ||
| Z-16100 | 22 | 26 | 24 | 100 | 160 | 2.9 | ||
| Z-21100 | 24 | 26 | 24 | 100 | 210 | 3.4 | ||
| Z-25110 | 28 | 30 | 27 | 110 | 250 | 3.8 | ||

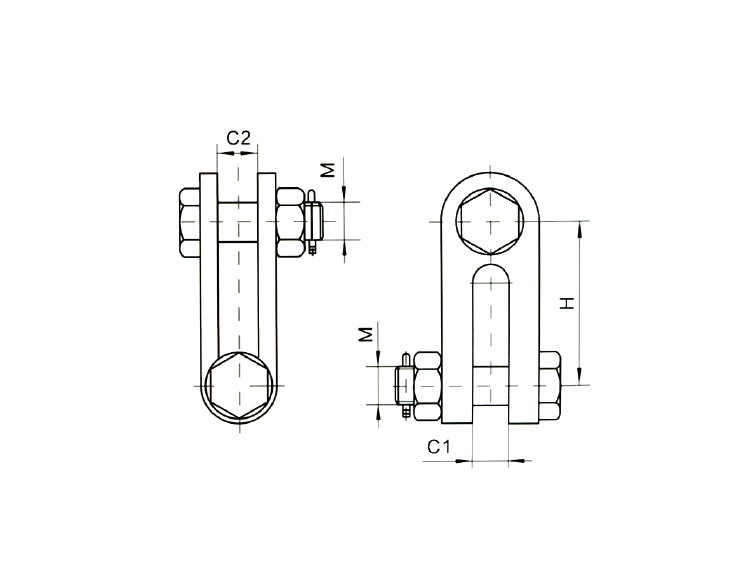

| Catalog No. | Dimensions(mm) | Failure Load(KN) | Weight(KG) | |||||
| C1 | C2 | M | H | |||||
| Z1-25 | 34 | 34 | 30 | 100 | 250 | 2.8 | ||
| Z-30 | 38 | 38 | 36 | 135 | 300 | 5.4 | ||
| Z-40 | 42 | 42 | 36 | 150 | 400 | 8.6 | ||
| Z-60 | 50 | 50 | 48 | 180 | 600 | 19.6 | ||
| Z-321135 | 32 | 32 | 30 | 135 | 320 | 8 | ||
| Z-42150 | 36 | 36 | 36 | 150 | 420 | 8.4 | ||
1.Function and Application:

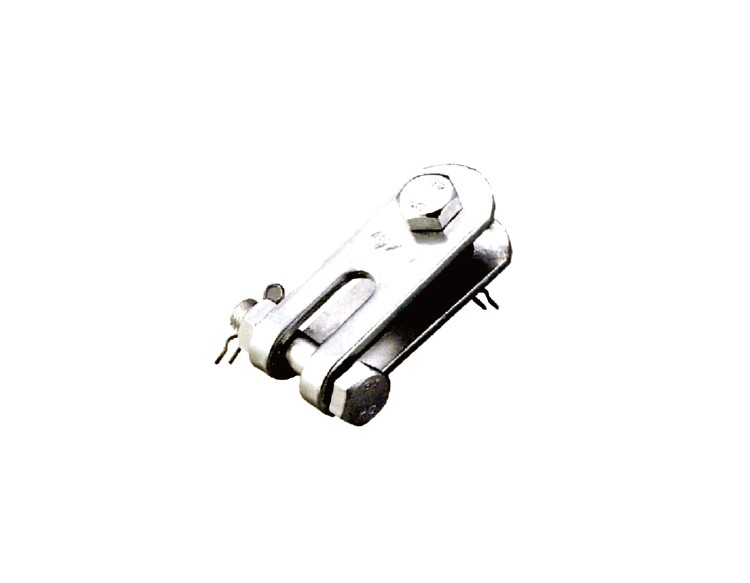

1）The Z Type Right Angle Eye Clevis serves as a connecting clevis for overhead line metal fittings.
2）It is commonly used for:
（1）Fixing cables with suspension clamps.
（2）Connecting helical dead-end clamps to ADSS cables.
（3）Extending pole line hardware and connecting dead-end grips with pole brackets.
2.Features:
1）Standard design with good versatility.
2）Manufactured from high-quality steel plates.
3）Hot-dip galvanized for anti-corrosion properties and long service life.
3.Characteristics:
1）Meets the technical requirements of DL/T 759 and conforms to IEC 61466, IEC 61284, and BS 3288 standards.
2）Raw material: High-quality steel.
3）Connection method: Uses pins or bolts to connect with other products.
4.Specifications:
1）Available Types:
（1）Z-7: Forged galvanized steel, dimensions (mm): C=18, M=16, H=80, W1=70, W2=0.65 kg.
（2）Z-10: Dimensions (mm): C=20, M=18, H=80, W1=100, W2=0.9 kg.
（3）Z-12: Dimensions (mm): C=24, M=22, H=100, W1=120, W2=1.45 kg.
（4）And more (Z-26, Z-30, Z-40, Z-16S, Z-25S1, Z-50S, Z-9-1, etc.)
