| Catalog No. | Ddimensions(mm) | Failure Load(KN) | Weight(KG) | |||||

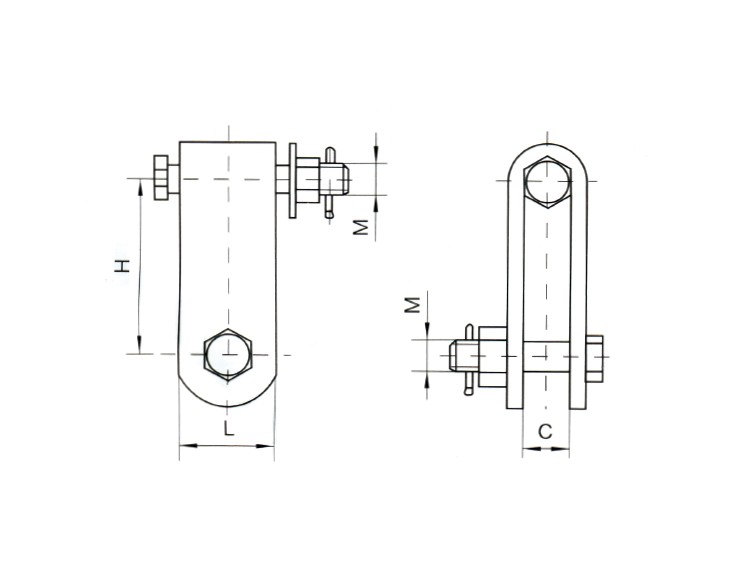

| C | M | H | L | |||||
| UB-7 | 18 | 16 | 70 | 45 | 70 | 0.75 | ||
| UB-10 | 20 | 18 | 80 | 45 | 100 | 1.08 | ||
| UB-12 | 24 | 22 | 100 | 60 | 120 | 2.82 | ||
| UB-16 | 26 | 24 | 100 | 60 | 160 | 2.89 | ||
| UB-21 | 30 | 27 | 120 | 70 | 210 | 3.8 | ||
| UB-30 | 39 | 36 | 150 | 70 | 300 | |||
| UB-0770 | 20 | 16 | 70 | 45 | 70 | 0.8 | ||
| UB-1080 | 20 | 18 | 80 | 45 | 100 | 1.1 | ||
| UB-12100 | 24 | 22 | 100 | 45 | 120 | 2.1 | ||
| UB-16100 | 26 | 24 | 100 | 45 | 160 | 2.3 | ||
| UB-21100 | 26 | 24 | 100 | 45 | 210 | 3.2 | ||
1.Function and Application:

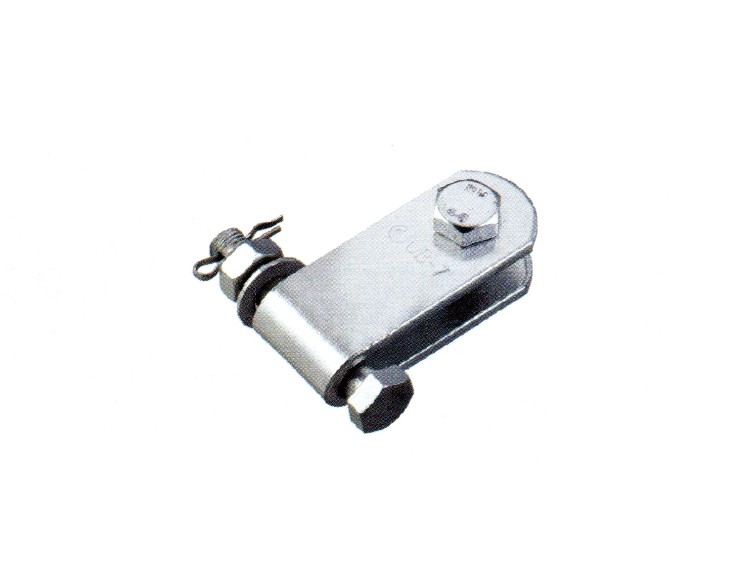

1）UB-type clevis hanging tongue serves as a connecting clevis for transmission line hardware fittings.
2）It is mainly suitable for:
（1）Hanging suspension insulator strings (composed of suspension insulator and suspension clamp) on the conductor subjected to the pole or tower.
（2）Hanging tension insulator strings (composed of suspension insulator and tension clamp) on the tension conductor subjected to the pole or tower.
2.Specifications:
1）UB-type clevis hanging tongue comes in various sizes and load-bearing capacities.
2）Here are some catalog dimensions and load ratings (all measurements in millimeters):
（1）UB-7: C=18, M=16, H=70, A=45, Rated Failure Load=70 kN, Weight=0.8 kg
（2）UB-10: C=20, M=18, H=80, A=45, Rated Failure Load=100 kN, Weight=1.1 kg
（3）UB-12: C=24, M=22, H=100, A=60, Rated Failure Load=120 kN, Weight=2.8 kg
（4）…and more (UB-16, UB-21, UB-25, UB-30, UB-40, UB-16S, UB-25S1, UB-50S, UB-9-1, etc.)
